Small piece of rubber in metal oil filer

So I was changing my oil from the side plug today. When I pulled the filter I noticed about 4 small chunks of rubber on the plug side of the filter. Is this something to be concerned about?

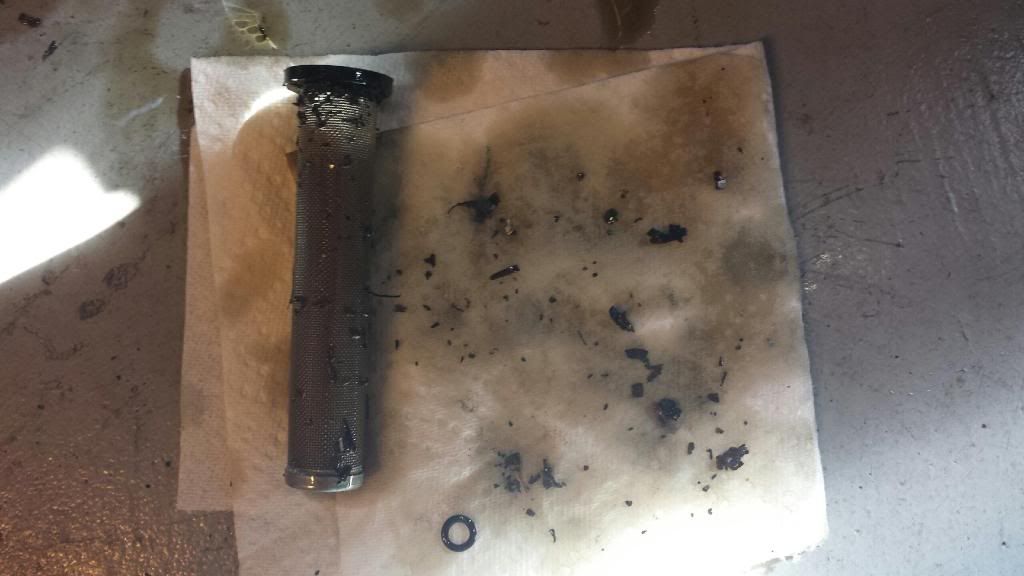

Something similar to the image below but not as many rubber pieces and no metal pieces. This is not the filter from my bike.


Last edited by ninjafaces; 06-24-2016 at 06:29 AM.
ninjafaces is offline
Sponsored Links
Advertisement

post #2 of 15 (permalink) Old 06-24-2016, 08:24 AM
Super Moderator

Join Date: Feb 2013
Location: SW Florida
Posts: 2,459
iTrader: (5)

rubber chunks in the oil.. balance dampers about to go?

2005 VN750

Sold 11-27-17
michiganteddybear is online now
post #3 of 15 (permalink) Old 06-24-2016, 08:24 AM
FREEBIRDS MC CENTRAL NY

OleDirtyDoc's Avatar

Join Date: May 2011
Location: Norwich,NY
Posts: 15,888
iTrader: (0)

Garage
Send a message via Yahoo to OleDirtyDoc
Looks like the crankshaft balancer bushing are coming apart

ONE RATS ASS GIVEN PER POST
Support your local FREEBIRDS MC
1986/5 Vn700/750 Frankenfook cross eyed bitch "Mellisa Fayhe"
I am a BIKER and i'm proud.FREEBIRDS MC CENTRAL NY

lowered with progessive 412 10" shocks
rejetted for K/N Pods part#rc 2340
sportster seat

'I didn't lose my mind.i gave it away

BRING BACK WOLFIE."Peace and Carrots"RIP
"And I'm free...as a bird"John Lennon Free as a Bird
"I only carry when I have my pants on"Joe Robinson RIP aka Old Dog
OleDirtyDoc is online now

post #4 of 15 (permalink) Old 06-24-2016, 01:46 PM
1986 VN750

thtanner's Avatar

Join Date: Nov 2011
Location: Dana Point, CA
Posts: 3,255
iTrader: (8)

Garage
Yea, sadly time to drop the engine to do balance dampers most likely.

1986 Kawasaki Vulcan 750
NGK Iridium Plugs #7803/DPR7EIX-9
Duralast Gold ETX15 AGM Battery
Coastered & Shaved
TOC MCCTs
Metzeler ME880 [110/90-19, 170/80-15]
Balance Dampers Replaced
Tuxedo Mod
Rebuilt Forks w/ Progressive Springs
V&H Cruzers
VN750.com Grill Cover
Meanstreak Seat
Emgo 23-92411 Handlebars
MOSFET FH012AA R/R


1990 Kawasaki Vulcan 750

1998 Honda VFR800 FI

2014 Honda VFR800F

1989 Pontiac Firebird Formula 350
thtanner is offline
post #5 of 15 (permalink) Old 06-26-2016, 07:04 AM Thread Starter
Junior Member

Join Date: Mar 2016
Location: Tampa, FL
Posts: 25
iTrader: (0)

Quote:
Originally Posted by thtanner View Post
Yea, sadly time to drop the engine to do balance dampers most likely.


I see, how difficult is the process to do? I've never done a engine pull on a bike before.
ninjafaces is offline
post #6 of 15 (permalink) Old 06-26-2016, 02:17 PM
1986 VN750

thtanner's Avatar

Join Date: Nov 2011
Location: Dana Point, CA
Posts: 3,255
iTrader: (8)

Garage
Quote:
Originally Posted by ninjafaces View Post
I see, how difficult is the process to do? I've never done a engine pull on a bike before.
It honestly is not that bad. I had mine pulled in under 2 hours. Have a rolling jack and 2x4 to help pull the engine from frame, help of a friend never hurt.

Here's where I did mine. Should have finished the thread up but it gives you a good idea: https://www.vn750.com/forum/31-engine...tallation.html

1986 Kawasaki Vulcan 750
NGK Iridium Plugs #7803/DPR7EIX-9
Duralast Gold ETX15 AGM Battery
Coastered & Shaved
TOC MCCTs
Metzeler ME880 [110/90-19, 170/80-15]
Balance Dampers Replaced
Tuxedo Mod
Rebuilt Forks w/ Progressive Springs
V&H Cruzers
VN750.com Grill Cover
Meanstreak Seat
Emgo 23-92411 Handlebars
MOSFET FH012AA R/R


1990 Kawasaki Vulcan 750

1998 Honda VFR800 FI

2014 Honda VFR800F

1989 Pontiac Firebird Formula 350
thtanner is offline
post #7 of 15 (permalink) Old 06-29-2016, 03:41 AM Thread Starter
Junior Member

Join Date: Mar 2016
Location: Tampa, FL
Posts: 25
iTrader: (0)

Quote:
Originally Posted by thtanner View Post
It honestly is not that bad. I had mine pulled in under 2 hours. Have a rolling jack and 2x4 to help pull the engine from frame, help of a friend never hurt.

Here's where I did mine. Should have finished the thread up but it gives you a good idea: https://www.vn750.com/forum/31-engine...tallation.html


I see, well this no better time to do the ear shave mod as well then.
thtanner likes this.
ninjafaces is offline
post #8 of 15 (permalink) Old 06-29-2016, 10:20 PM
Senior Member

Join Date: Mar 2016
Location: MI
Posts: 292
iTrader: (0)

A single healthy middle age man can remove and lift the engine without special tools and proper form - 150lbs or so

Paint cans with a magazine on top is perfect height and I ended up not using my jack or roller for engine removal and was able to lift to bench and later install back in bike by myself.

IMO Don't remove the bevel gear case
gidaeon is offline
post #9 of 15 (permalink) Old 06-29-2016, 10:24 PM
Senior Member

Join Date: Mar 2016
Location: MI
Posts: 292
iTrader: (0)

Also, was your case split recently and had you inspected such before on last oil change. What year bike and mileage?

I ask because you'll get fragments that look somewhat similar to plastic/rubber from the case sealer if recently put together as some is squeezed inside case and breaks off.

Bring it up because you said pic is not yours. But probably what others said above is dead on!
gidaeon is offline
post #10 of 15 (permalink) Old 07-09-2016, 06:26 AM Thread Starter
Junior Member

Join Date: Mar 2016
Location: Tampa, FL
Posts: 25
iTrader: (0)

Quote:
Originally Posted by gidaeon View Post
Also, was your case split recently and had you inspected such before on last oil change. What year bike and mileage?

I ask because you'll get fragments that look somewhat similar to plastic/rubber from the case sealer if recently put together as some is squeezed inside case and breaks off.

Bring it up because you said pic is not yours. But probably what others said above is dead on!

I haven't changed the oil before via the side plug. But I noticed nothing in the oil when I cracked the bottom plug. I doubt nothing has changed, I haven't turned the bike on since I found the rubber.

It's a 95 w/ approx 15k on the clock (supposedly) I haven't ridden it yet, I wanted to fix it up before I did my msf.
