Lulu's Clutch Swap

PART 1

Well after the stop light incident I figured it was time to do a little clutch surgery to fix a slipping disk. LOL

I took Pics of the procces and figure i should post the proccess.

""One note I drained the oil before I started this procces as I also did oil and filter change.""

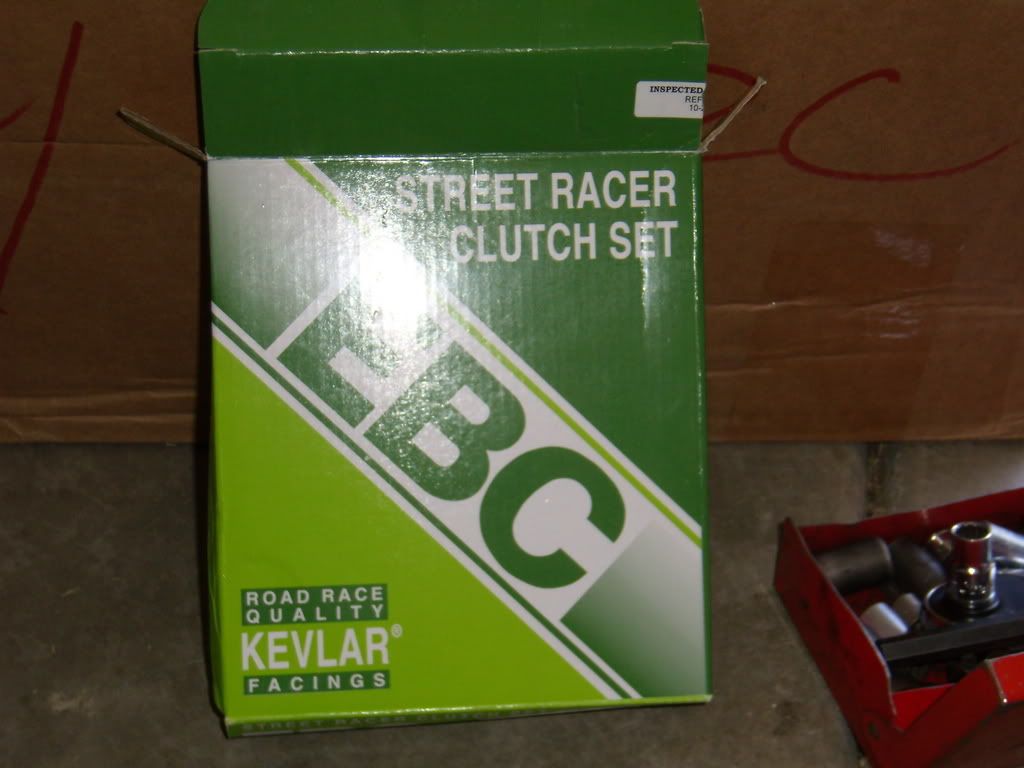

I am starting the change out using the EBC Street racer clutch kit cost 110.00.



The proccess is very simple all the tools you will need are a 8mm, 10mm sockets and ratchet, 2 six inch nails, and needle nose pliers.

The first step is to remove the 7 8mm case bolts



Here you can see the clutch basket see that i place a rag on the pipe as there will be oil.

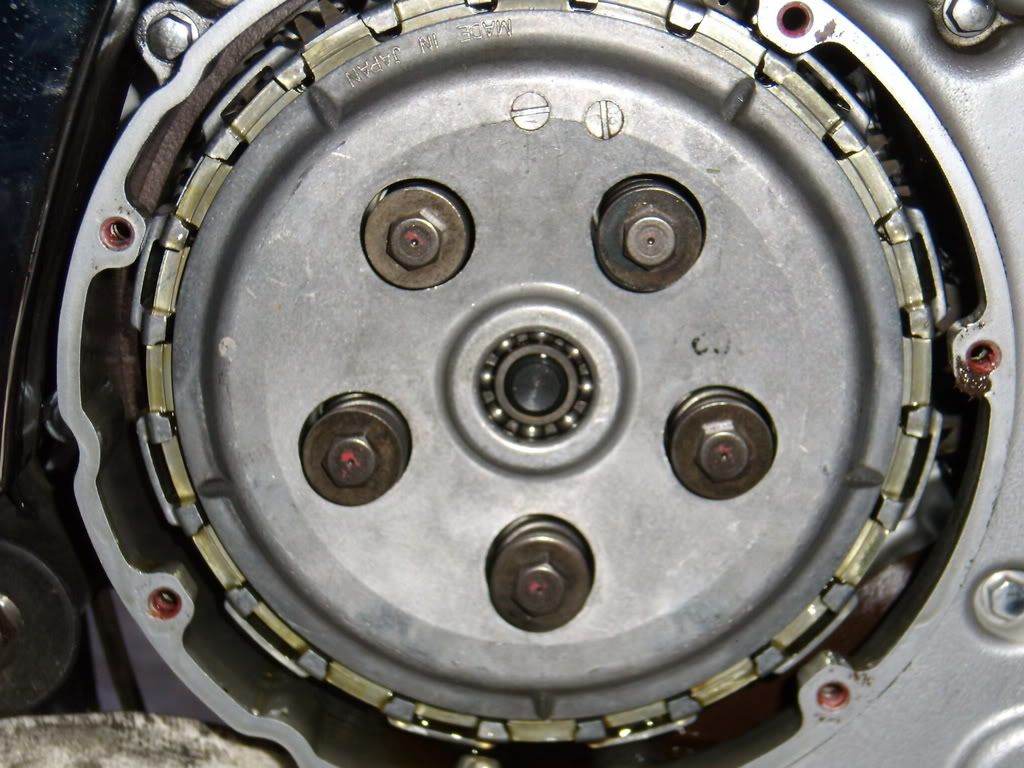

To start you will remove the 5 10mm bolts holding the basket cover and springs.

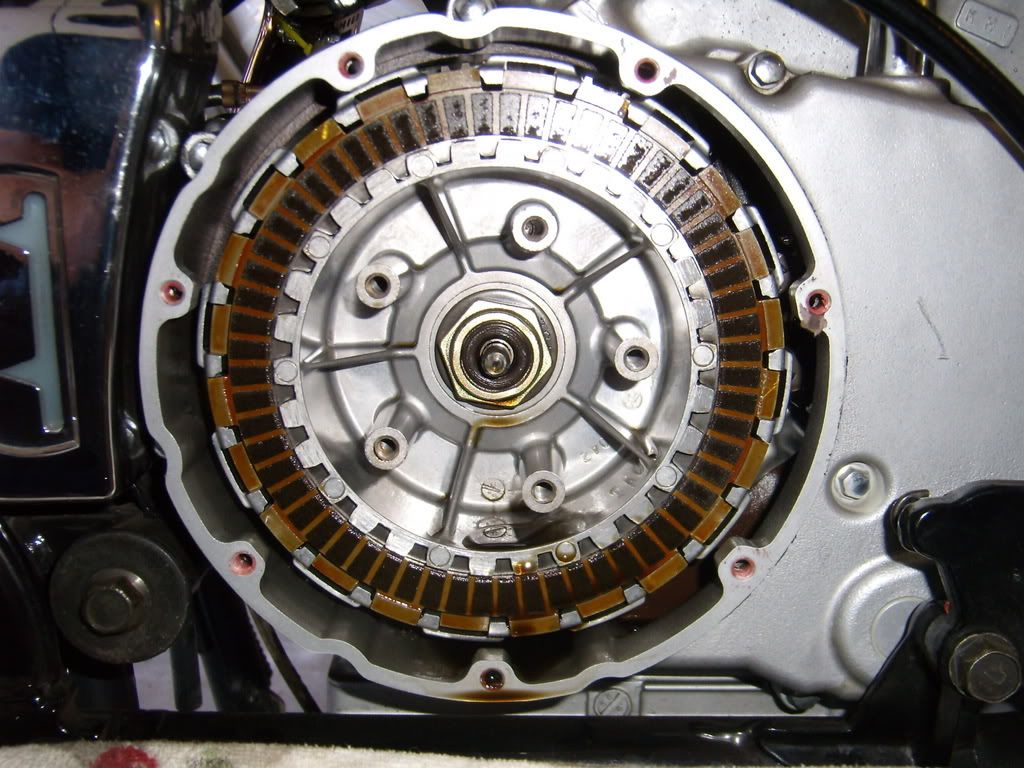

Once removed you will then see the plates.

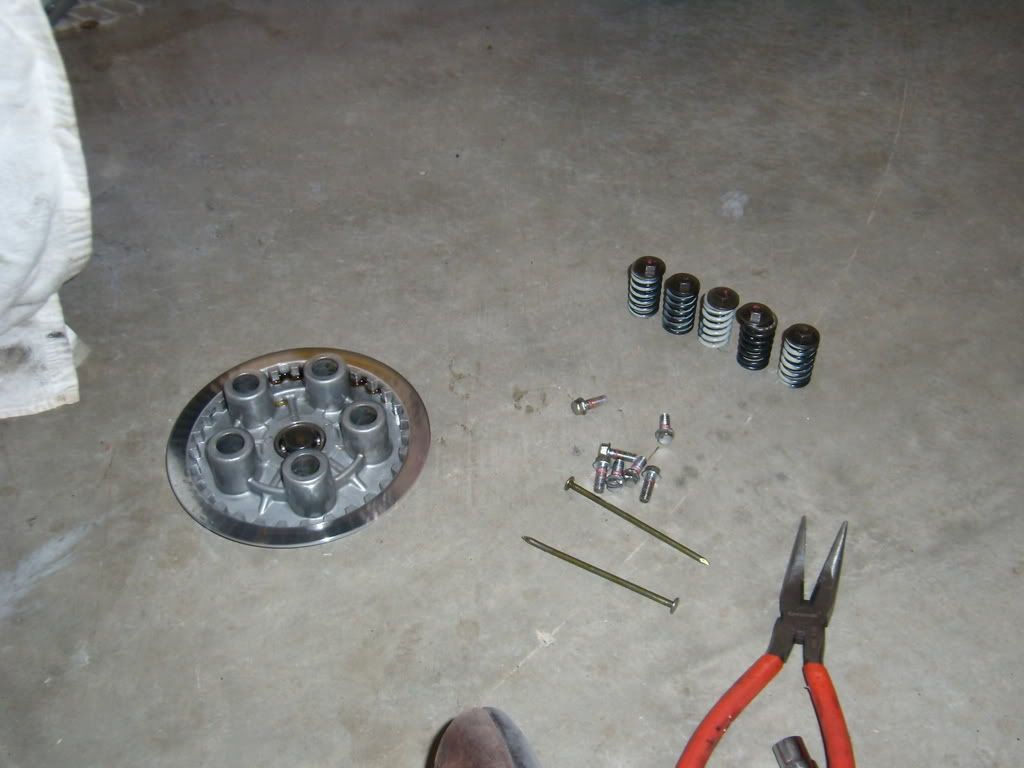

Plate removal is pretty easy, To remove the plates I used 2 six inch nails that I bent the tip a bit.

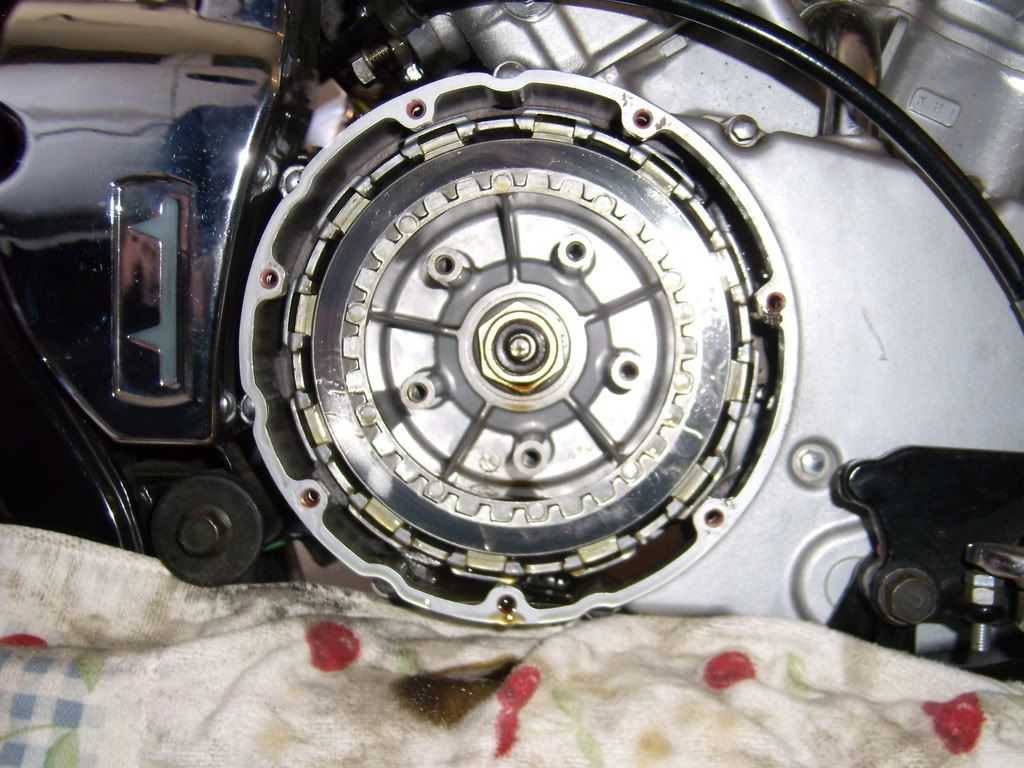

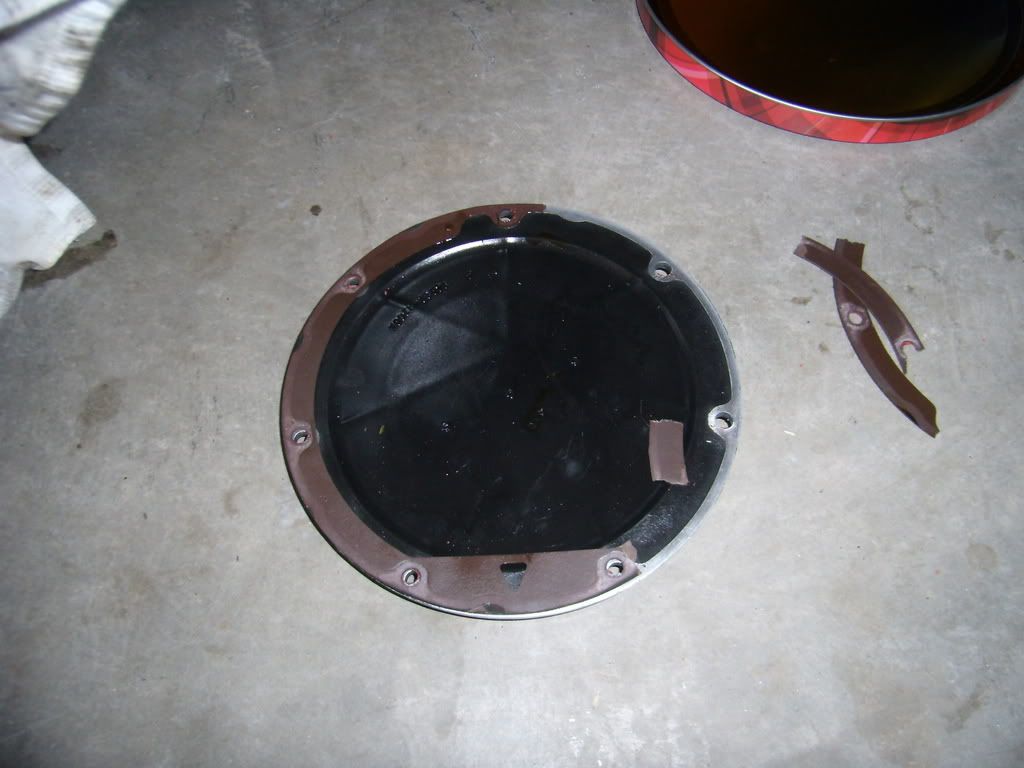

Here is the empyt basket

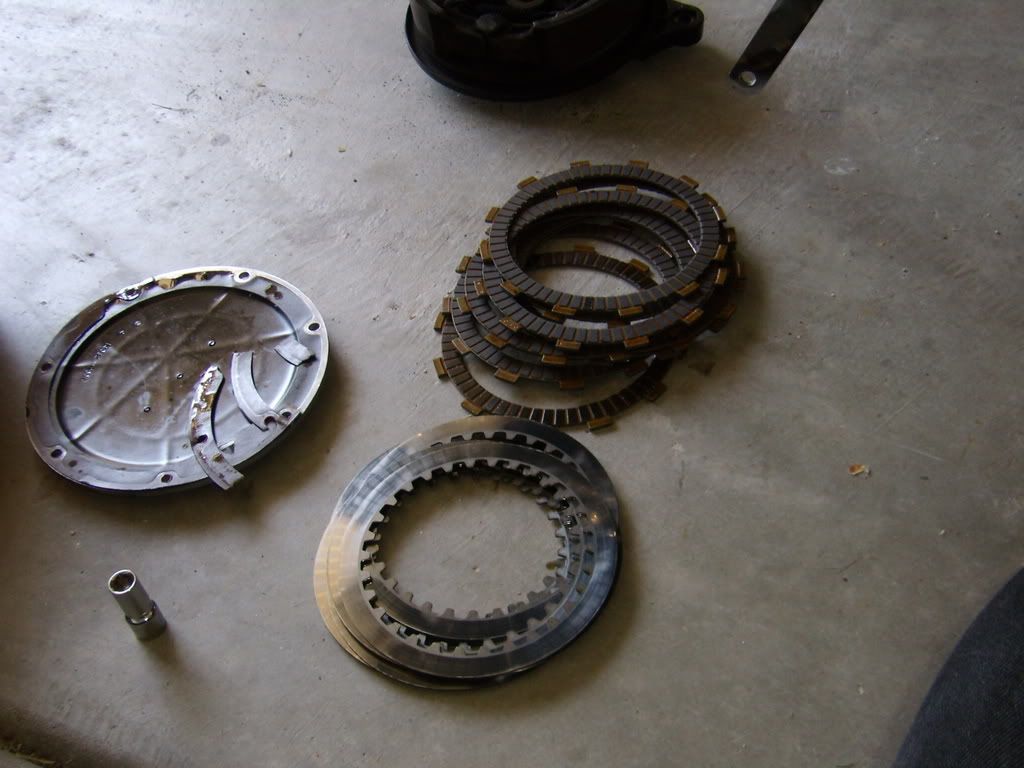

and a shot of the old plates



Reassembly on the next thread
LurchChaos is offline
Sponsored Links
Advertisement

post #2 of 18 (permalink) Old 07-15-2007, 02:09 PM Thread Starter

Join Date: Jan 2007
Posts: 306
iTrader: (4)

Clutch Re assembly

Continued from privous thread.

The Reassembly went rather fast.

A shot of the new springs and plates. (yes there are 6 springs rember this kit was designed for diffrent biles as well as the VN750)



The re packing is simple you just place pad and steel plate back in alternating each starting with a clutch pad.

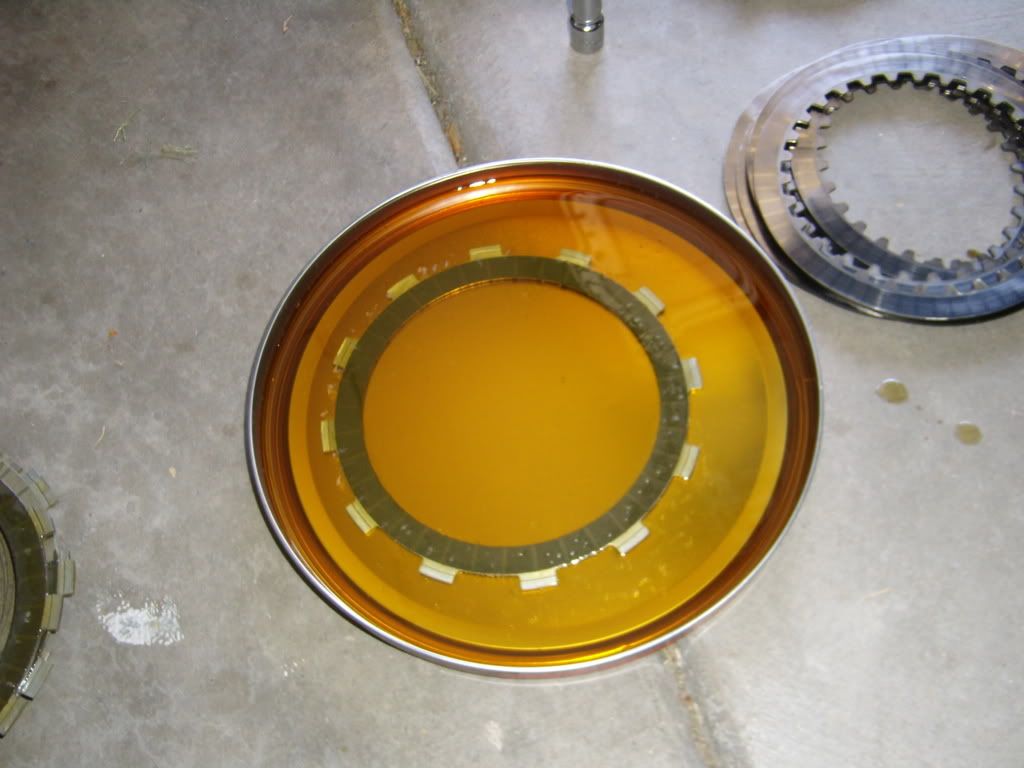

Rember to dip the plates in oil before you put them in. I used a lid off a metal popcorn can.



Once you have placed all but the next to last plate in the pack will look like this



the last plate needs to go in the last notch that is off set from the rest of the plates.



Once this has been done place the basket top on set the new springs and start the 10 mm bolts.



You will want to hold the clutch basket in place when tighting the bolts I used my needle nose pliers and wedged them in between the basket and the case.

Once you have gotten everyting tightend up you need to replace the gasket.

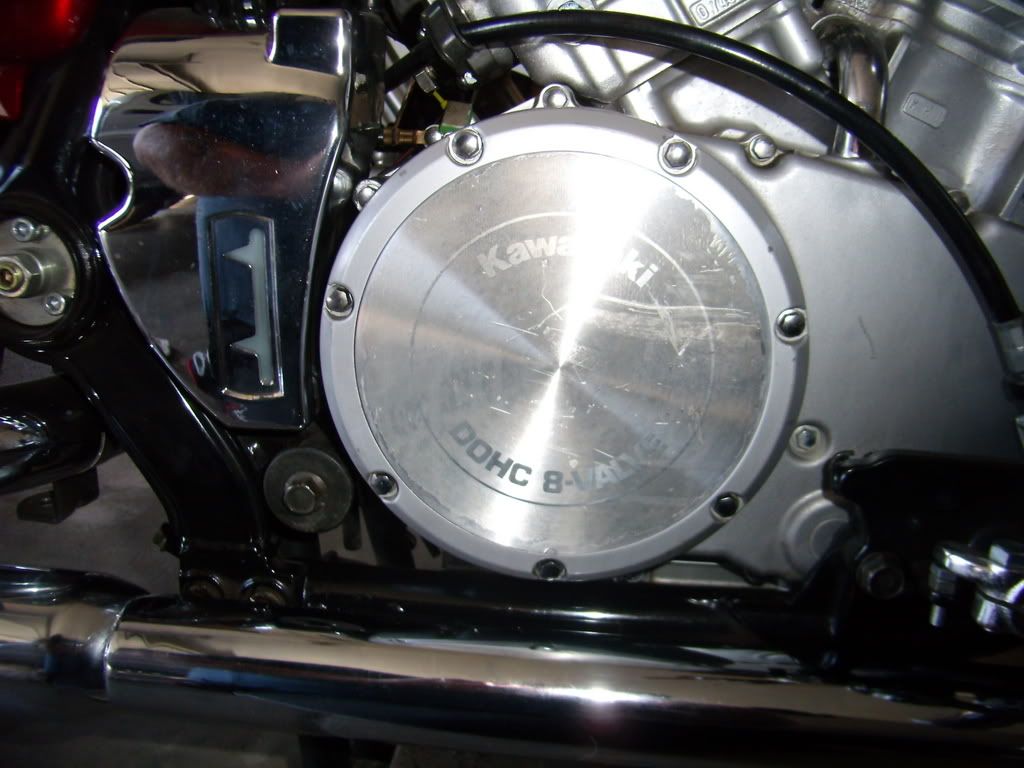

The last step is to put the cover back on!

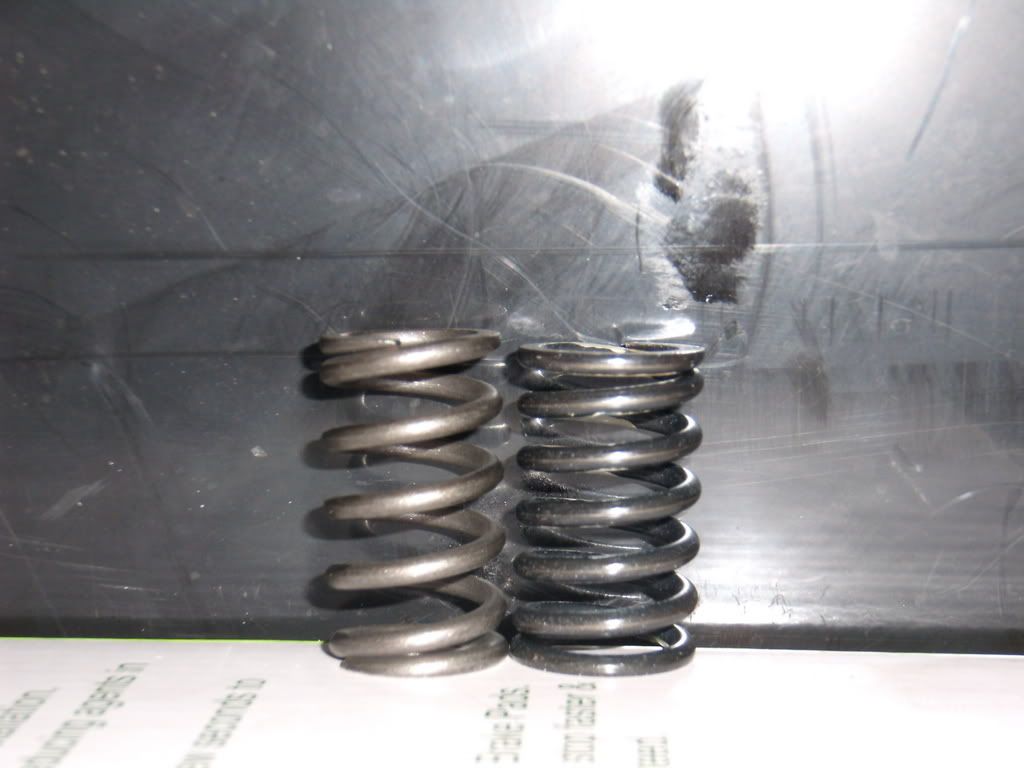

Here is one pic i thought you may want to see It is the size diffrence in the springs from stock and race.
