Broken teeth on rotor

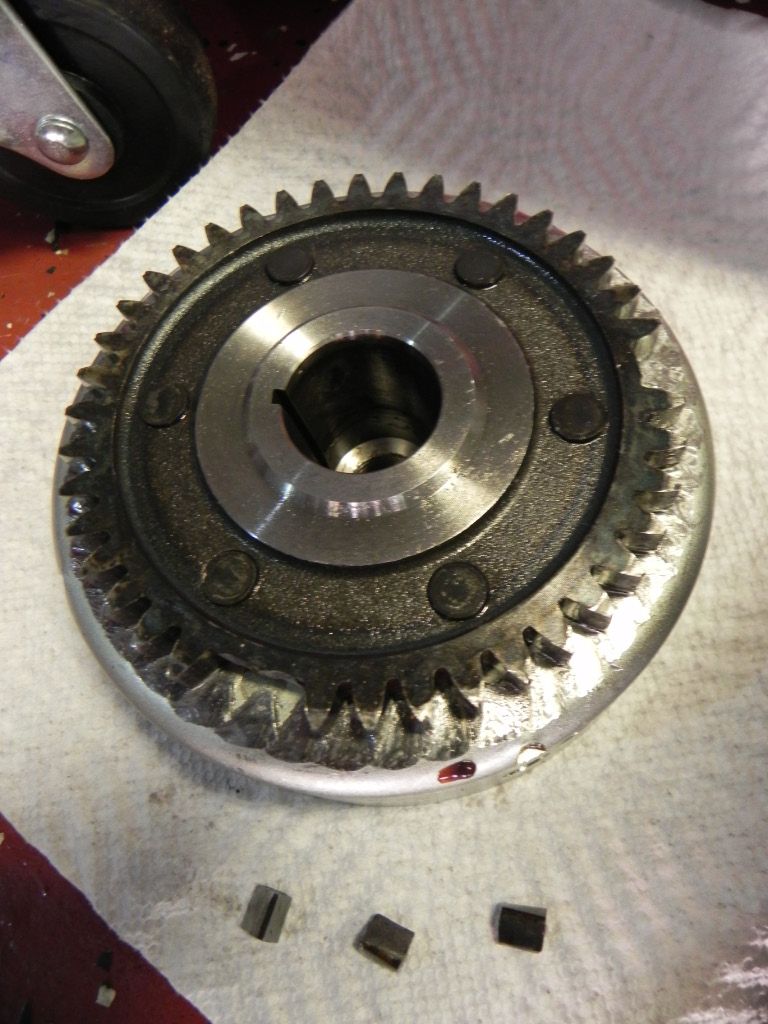

OK been having some strange noises coming from the front part of the crankcase, so I decided to break her down this weekend. I was afraid it might be the front connecting rod bearing. However when I got to taking the flywheel cover off I found three pieces of gear tooth sitting in there, and after pulling the rotor discovered it was from the back gear on the rotor. It appears so far that I was really lucky and the broken teeth did not find their way into the rest of the engine, though I am gonna pull the heads while it's out and waiting for parts just for some inspecting/carbon cleaning. What I would like to know is what could possibly cause this? Has anyone else seen this before? I see no other signs of damage and no marks on the damper gear that look like it may have been aligned wrong.

NM750 is offline
Sponsored Links
Advertisement

post #2 of 15 (permalink) Old 08-16-2013, 12:00 PM
Prowling Tiger

blazblu82's Avatar

Join Date: Apr 2012
Posts: 2,048
iTrader: (4)

YIKES! Never seen anything like that on a bike. I have seen teeth sheered off by the starter on other vehicles I've owned. By the looks of things, it would have taken some serious force to break those teeth off like that!

Good luck!

EDIT: Look at the worn areas of the teeth. Looks like close to half were rubbing while the other half is clean. Also look at the length of the teeth. Not all are the same length. Possible the rotor is warped and those teeth were the weakest link or the shaft it mounts to is out of round? *scratches head*

I only understand what I don't understand.

Last edited by blazblu82; 08-16-2013 at 12:04 PM.
blazblu82 is offline
post #3 of 15 (permalink) Old 08-16-2013, 12:13 PM
..have a vulcan good day!

WilliamTech's Avatar

Join Date: May 2011
Location: Pensacola, FL.
Posts: 4,508
iTrader: (17)

Quote:
What I would like to know is what could possibly cause this? Has anyone else seen this before? I see no other signs of damage and no marks on the damper gear that look like it may have been aligned wrong.
Ouch !

No, never.
WilliamTech

'86 VN750 13,700 mi -Stock
-Purchased 2008 w/8800mi
Replaced ALL Cables . Kuryakyn LED Voltmeter
SilverStar Ultra 9003/HB2 H4 Headlamp, Jardine Fwd Controls,
Iridiums DPR7EIX-9 & Wires, Tuxedo Mod, Coil Mod, P/U Sensor Mod, Fork Seals,
Splines Lubed - 11/4/2012 - MF AGM Battery
Additional Flashing LED Brake Light on Trunk
Dampers went out @ 13+K !
After TOC MCCT's..... so amazingly quiet I discovered a rattling heat shield on my stock exhaust !
...have a vulcan good day!
WilliamTech is offline

post #4 of 15 (permalink) Old 08-16-2013, 12:16 PM
Giggity!

kanuck69's Avatar

Join Date: Jun 2007
Location: Ohio, Zanesville
Posts: 4,307
iTrader: (24)

Garage
Yeah, that's a new one.

Hey, have you bought a new rotor yet? I've got one sitting in my garage.
I'm sure we could work out a fair deal.
kanuck69 is offline
post #5 of 15 (permalink) Old 08-16-2013, 12:18 PM
Giggity!

kanuck69's Avatar

Join Date: Jun 2007
Location: Ohio, Zanesville
Posts: 4,307
iTrader: (24)

Garage
Look at the edge all around it, it's worn too. Very strange.
kanuck69 is offline
post #6 of 15 (permalink) Old 08-16-2013, 12:32 PM Thread Starter
Junior Member

Join Date: Jun 2013
Posts: 20
iTrader: (2)

Yeah the more I look at it I think I got an unlucky buy from ebay. Couple months ago I replaced my original rotor because it was gouged from a fried stator. Looking at my balancer gear there are no marks at all that line up with the worn areas on the rotor gear, so I have to assume it came like that and I just didn't notice, maybe the teeth were already cracked/worn when I installed it. Well I'm just glad nothing else seems damaged.

Kanuck I'll send you a PM on that rotor.

Last edited by NM750; 08-16-2013 at 12:37 PM.
NM750 is offline
post #7 of 15 (permalink) Old 08-16-2013, 02:08 PM
Senior Member

Join Date: May 2012
Posts: 2,051
iTrader: (0)

the closest thing I ever saw to this was this

http://s376.photobucket.com/user/mer...le%20Sprockets

suggest you try to find a new one and get oem, not ebay or aftermarket. good luck.

kenny

Merc
2000 Vulcan Drifter 800
Roadhouse classic 2 > 1 exhaust
Okie Smokie intake config
Changed jets
52K miles or so, always going up
Corbin Seat
Painted flat black winter '12
Mercury is offline
post #8 of 15 (permalink) Old 08-16-2013, 07:51 PM
Linkmeister Supreme

OlHossCanada's Avatar

Join Date: Aug 2008
Location: Lethbridge, Alberta, Canada
Posts: 7,960
iTrader: (8)

Quote:
Originally Posted by Mercury View Post
the closest thing I ever saw to this was this

http://s376.photobucket.com/user/mer...le%20Sprockets

suggest you try to find a new one and get oem, not ebay or aftermarket. good luck.

kenny
The difference there Merc, is those gears are worn out on chains.
The broken gear teeth on the rotor are not just worn off, but broken off. Very odd.

Gordon

1991 VN 750 -"Cosmic Lady" or "Bad Girl"?
Purchased May 16, 2008
Approx.19,300km (12,000 miles)

H-D windshield
Relocated R/R
MF-AGM battery
Fiamm Freeway Blaster horns
F&S luggage rack and engine guard
Kury Offset Hiway pegs
July 13, 2016, Riding on the DARKSIDE now, Classic Radial 165/80-15


TOP TEN THINGS A NEW RIDER/OWNER SHOULD DO. Click on link.
https://www.vn750.com/forum/11-vn750-general-discussion/9127-top-ten-items-you-would-suggest-new-owner-do-his-new-ride.html
OlHossCanada is offline
post #9 of 15 (permalink) Old 08-16-2013, 08:02 PM
Registered User

Join Date: Aug 2011
Location: GreenwoodFrickinLakeNY
Posts: 10,354
iTrader: (8)

Scary stuff....mebbe I should sell mine quick and get that sweet VN900 Classic I liked...lol...good thing I have a spare 700 (hugs Mikey....).....

Looking at the damage....Id say it was an improper install, and a wobble/wear caused it....I dont think the cog was seated properly from the get-go....

But thats wobble wear fer sure.....



Wolfie is offline
post #10 of 15 (permalink) Old 08-16-2013, 09:48 PM Thread Starter
Junior Member

Join Date: Jun 2013
Posts: 20
iTrader: (2)

I'm with ya Wolfie, but I'm also sticking with my theory that I got it already worn because I just can't see how it could end up like that from my install if my balancer gear is pristine.
NM750 is offline
