post #11 of 45 (permalink) Old 03-18-2020, 05:24 PM Thread Starter
Member

Join Date: Jan 2020
Posts: 42
iTrader: (0)

Reason was just to do the routine spline lube. Splines *looked* to be in good shape to me, but I have another spare final drive that I'm thinking to swap in and see if that works better, because yes, there was a great deal of red dust but also some grease.

Exhaust is all stock, so thanks for reminding me. Exhaust smells slightly sweet but there still could be some residual. I dont know how long anything sat previously, and there have been temp swings around here between 20 and 60. The exhaust smell is slightly concerning still, but I cant imagine where the two could be mixing. Condensation build up?

Quote:
Originally Posted by Spockster View Post
What was the reason for rebuilding the driveshaft? Did you inspect the splines on the shaft coupler? Was there a lot of red dust in the coupler, or just old grease?

Water pump won't put coolant into a cylinder, just the oil.

If it still has stock pipes, the exhaust mixes in the "goat's belly", so front/rear exhaust is all the same. I would lean toward condensation, especially if there's temperature swings in your area.
jakob_rothfuss is offline
Sponsored Links
Advertisement

post #12 of 45 (permalink) Old 03-18-2020, 05:41 PM
Senior Member

Spockster's Avatar

Join Date: Nov 2012
Location: WV
Posts: 6,867
iTrader: (5)

Could still have had some coolant in the pipes. Had that happen once with oil after a complete exhaust swap, smoked for about half an hour before it all burned out.

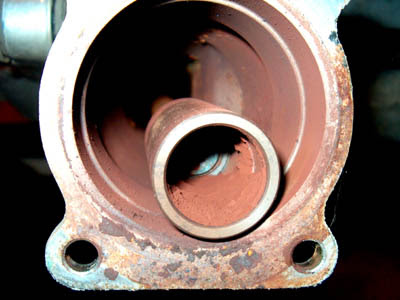

Here's some examples of stripped coupler splines:






2003-21k mi
Shaved w/UniPK92+Stock Jets-TPE/MOSFET-Shinko Tires-AGM batt-bags-chrome-LEDs...more
__________________________________________________ ____________
Repair Manual: http://www.mediafire.com/file/mj7z81..._Catalogue.pdf

Owner's Manual: http://www.mediafire.com/file/nscb5f...ers+Manual.pdf
Spockster is offline
post #13 of 45 (permalink) Old 03-18-2020, 05:44 PM Thread Starter
Member

Join Date: Jan 2020
Posts: 42
iTrader: (0)

Thanks so much Spockster- maybe there really just is a lot of coolant left in the pipes and goat's belly.

Now, I checked the splines on the final drive, but not the coupling on the driveshaft. Hmm...that sounds like what my problem could be. I'll go break into that stuff.

Really appreciate your help once again.

Quote:
Originally Posted by Spockster View Post
Could still have had some coolant in the pipes. Had that happen once with oil after a complete exhaust swap, smoked for about half an hour before it all burned out.

Here's some examples of stripped coupler splines:





jakob_rothfuss is offline

post #14 of 45 (permalink) Old 03-18-2020, 05:55 PM
Senior Member

Spockster's Avatar

Join Date: Nov 2012
Location: WV
Posts: 6,867
iTrader: (5)

You're welcome.

Best bet is ebay if you need a coupler, sometimes $20 for a complete driveshaft.
The red dust means it's been dry at some point and grinding on the splines.

2003-21k mi
Shaved w/UniPK92+Stock Jets-TPE/MOSFET-Shinko Tires-AGM batt-bags-chrome-LEDs...more
__________________________________________________ ____________
Repair Manual: http://www.mediafire.com/file/mj7z81..._Catalogue.pdf

Owner's Manual: http://www.mediafire.com/file/nscb5f...ers+Manual.pdf
Spockster is offline
post #15 of 45 (permalink) Old 03-19-2020, 04:51 PM Thread Starter
Member

Join Date: Jan 2020
Posts: 42
iTrader: (0)

Here is the condition of my coupler. I didnt think it really looked to be in that bad of shape?

Quote:
Originally Posted by Spockster View Post
You're welcome.

Best bet is ebay if you need a coupler, sometimes $20 for a complete driveshaft.
The red dust means it's been dry at some point and grinding on the splines.
Attached Thumbnails
Click image for larger version

Name:	20200319_164942_1584651069788.jpg
Views:	10
Size:	91.0 KB
ID:	47331
jakob_rothfuss is offline
post #16 of 45 (permalink) Old 03-19-2020, 05:33 PM
Senior Member

Spockster's Avatar

Join Date: Nov 2012
Location: WV
Posts: 6,867
iTrader: (5)

Quote:
Originally Posted by jakob_rothfuss View Post
Here is the condition of my coupler. I didnt think it really looked to be in that bad of shape?
Looks like the first 1/4" or so is ground off. Hard to see though.

2003-21k mi
Shaved w/UniPK92+Stock Jets-TPE/MOSFET-Shinko Tires-AGM batt-bags-chrome-LEDs...more
__________________________________________________ ____________
Repair Manual: http://www.mediafire.com/file/mj7z81..._Catalogue.pdf

Owner's Manual: http://www.mediafire.com/file/nscb5f...ers+Manual.pdf
Spockster is offline
post #17 of 45 (permalink) Old 03-19-2020, 06:30 PM Thread Starter
Member

Join Date: Jan 2020
Posts: 42
iTrader: (0)

I just swapped the rear spline/final gear with a spare I had that was in much better shape. This time when I took it out for a ride, I noticed when I plunked it into 1st, the bike lurched forward a bit but then still would not accelerate.

Quote:
Originally Posted by Spockster View Post
Quote:
Originally Posted by jakob_rothfuss View Post
Here is the condition of my coupler. I didnt think it really looked to be in that bad of shape?
Looks like the first 1/4" or so is ground off. Hard to see though.
jakob_rothfuss is offline
post #18 of 45 (permalink) Old 03-19-2020, 06:47 PM
Senior Member

Spockster's Avatar

Join Date: Nov 2012
Location: WV
Posts: 6,867
iTrader: (5)

Quote:
Originally Posted by jakob_rothfuss View Post
I just swapped the rear spline/final gear with a spare I had that was in much better shape. This time when I took it out for a ride, I noticed when I plunked it into 1st, the bike lurched forward a bit but then still would not accelerate.
It wouldn't rev up or lacked power? Or revved up and just didn't go any faster?

2003-21k mi
Shaved w/UniPK92+Stock Jets-TPE/MOSFET-Shinko Tires-AGM batt-bags-chrome-LEDs...more
__________________________________________________ ____________
Repair Manual: http://www.mediafire.com/file/mj7z81..._Catalogue.pdf

Owner's Manual: http://www.mediafire.com/file/nscb5f...ers+Manual.pdf
Spockster is offline
post #19 of 45 (permalink) Old 03-19-2020, 06:49 PM Thread Starter
Member

Join Date: Jan 2020
Posts: 42
iTrader: (0)

Engine would rev up and I could roll bike back and forth with my feet as if I were in neutral, but I was in 1st gear. I'm going to double check my clutch cable...there's a chance I have too little slack in it.

Quote:
Originally Posted by Spockster View Post
It wouldn't rev up or lacked power? Or revved up and just didn't go any faster?
jakob_rothfuss is offline
post #20 of 45 (permalink) Old 03-19-2020, 07:32 PM Thread Starter
Member

Join Date: Jan 2020
Posts: 42
iTrader: (0)

Sadly, no change in performance after I followed the Clymer's manual for adjusting cable tension. I'm going to swap clutch plates now, and soak the new ones in oil overnight. Maybe I just have old and worn friction plates.

Quote:
Originally Posted by jakob_rothfuss View Post
Engine would rev up and I could roll bike back and forth with my feet as if I were in neutral, but I was in 1st gear. I'm going to double check my clutch cable...there's a chance I have too little slack in it.
jakob_rothfuss is offline
