Question Laydown License Plate Mount

What are the chances that a laydown license plate mount for a harley would work on our bikes? I'm looking at this one on ebay. I really don't like how the license plate just kinda flaps in the wind in the stock location. I was thinking if I could get one of those laydown mounts and some led bolts I could just replace the stock mount and light. Think it would work?
Deviate is offline
Sponsored Links
Advertisement

post #2 of 12 (permalink) Old 05-21-2012, 05:28 PM
Senior Member

Join Date: Mar 2012
Posts: 450
iTrader: (0)

Garage
Just make this, only cost a few bucks.

Rebel13 is offline
post #3 of 12 (permalink) Old 05-21-2012, 06:20 PM Thread Starter
Senior Member

Deviate's Avatar

Join Date: May 2012
Location: St. Augustine, Florida
Posts: 1,253
iTrader: (5)

That's a darn fine idea. I happen to have some of that in the garage too. Thanks for the idea there. Is that 3/4" by 1/8" that you used?

Last edited by Deviate; 05-21-2012 at 06:22 PM.
Deviate is offline

post #4 of 12 (permalink) Old 05-21-2012, 07:33 PM
Senior Member

Join Date: Mar 2012
Posts: 450
iTrader: (0)

Garage
Quote:
Originally Posted by Deviate View Post
That's a darn fine idea. I happen to have some of that in the garage too. Thanks for the idea there. Is that 3/4" by 1/8" that you used?
Yep, alluminum stock with stainless hardware.
Rebel13 is offline
post #5 of 12 (permalink) Old 06-28-2012, 05:06 PM Thread Starter
Senior Member

Deviate's Avatar

Join Date: May 2012
Location: St. Augustine, Florida
Posts: 1,253
iTrader: (5)

So I finally got around to doing something with this. I ended up just using the OEM license plate bracket and removing the light. I replaced the light by using LED bolts in the top. Here are some pics to show what I did:

Before - stock:

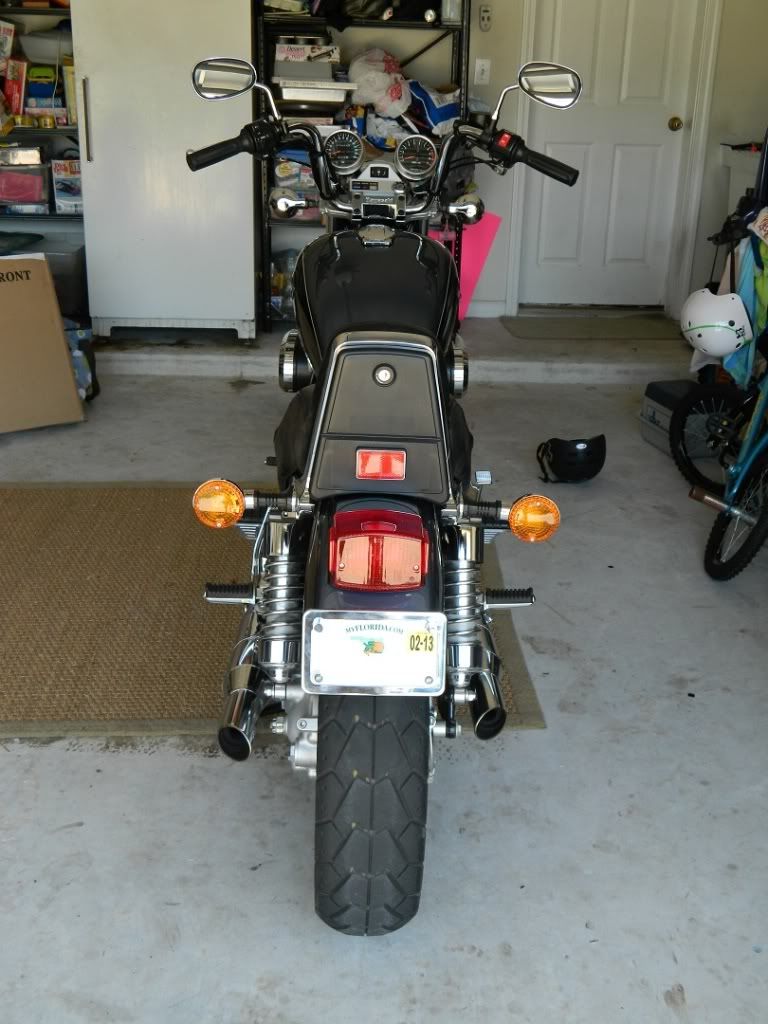

After:

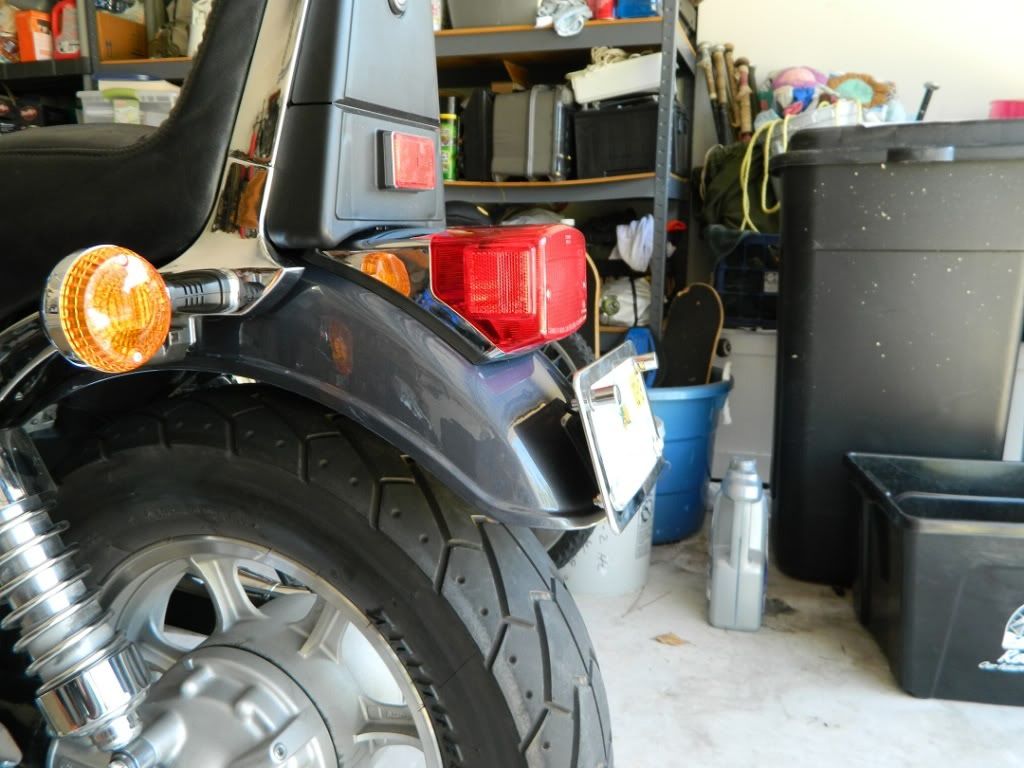

Side shot:

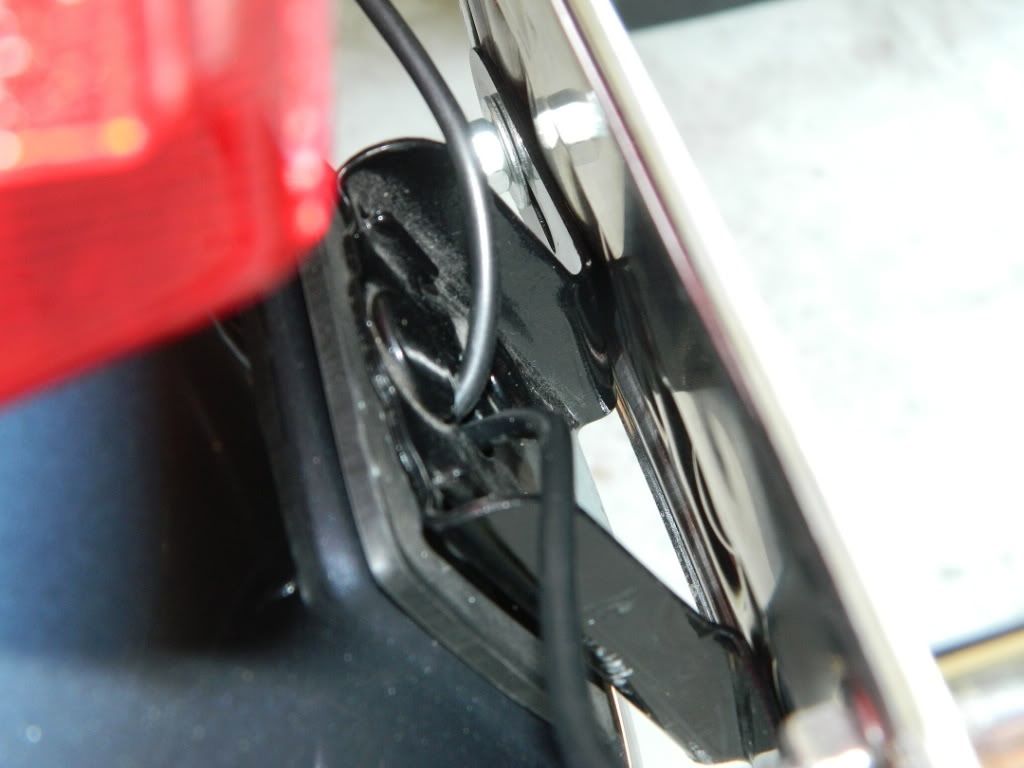

Close up of the wires:


All in all I'm very pleased with how it looks. I'll see how bright the lights are tonight.
Deviate is offline
post #6 of 12 (permalink) Old 06-28-2012, 05:18 PM
Senior Member

Join Date: Mar 2012
Posts: 450
iTrader: (0)

Garage
Looks good.
Rebel13 is offline
post #7 of 12 (permalink) Old 06-28-2012, 09:05 PM Thread Starter
Senior Member

Deviate's Avatar

Join Date: May 2012
Location: St. Augustine, Florida
Posts: 1,253
iTrader: (5)

Thanks Reb. Just checked out the LEDs in the dark. They're bright...bright enough. They could probably do a little better job illuminating the whole plate. But I think they are good for what I wanted. If I had one in each corner the whole plate would be really bright.
Deviate is offline
post #8 of 12 (permalink) Old 06-28-2012, 10:23 PM
Senior Member

Join Date: Jul 2009
Posts: 686
iTrader: (0)

I did something similar couple years ago.....and it passed inspection!!
VoIPDoc is offline
post #9 of 12 (permalink) Old 06-29-2012, 12:31 AM
1986 VN750

thtanner's Avatar

Join Date: Nov 2011
Location: Dana Point, CA
Posts: 3,255
iTrader: (8)

Garage
Link to those cool led bolts?

1986 Kawasaki Vulcan 750
NGK Iridium Plugs #7803/DPR7EIX-9
Duralast Gold ETX15 AGM Battery
Coastered & Shaved
TOC MCCTs
Metzeler ME880 [110/90-19, 170/80-15]
Balance Dampers Replaced
Tuxedo Mod
Rebuilt Forks w/ Progressive Springs
V&H Cruzers
VN750.com Grill Cover
Meanstreak Seat
Emgo 23-92411 Handlebars
MOSFET FH012AA R/R


1990 Kawasaki Vulcan 750

1998 Honda VFR800 FI

2014 Honda VFR800F

1989 Pontiac Firebird Formula 350
thtanner is offline
post #10 of 12 (permalink) Old 06-29-2012, 10:06 AM Thread Starter
Senior Member

Deviate's Avatar

Join Date: May 2012
Location: St. Augustine, Florida
Posts: 1,253
iTrader: (5)

These are the ones I got: http://www.ebay.com/itm/220819129264...84.m1497.l2649. There were lots of them on ebay and some even cheaper, but the cheaper ones didn't look as much like chrome. There are also some in black if that's more to your liking.
