Vulcan 800 custom handlebars on a vn750??

Is this possible to do without alot of complications. Someone i know is selling a stock set of custom handle bars from an 05 vulcan custom their the straight bars with a riser on them im just wondering if its possible to do an easy swap or is it alot of work?
ryanmitchy is offline
Sponsored Links
Advertisement

post #2 of 13 (permalink) Old 04-08-2011, 12:34 AM
Members who have donated towards server costs

denny6006's Avatar

Join Date: Mar 2009
Location: InezKY pop.600
Posts: 5,236
iTrader: (9)

Garage
Quote:
Originally Posted by ryanmitchy View Post
Is this possible to do without alot of complications. Someone i know is selling a stock set of custom handle bars from an 05 vulcan custom their the straight bars with a riser on them im just wondering if its possible to do an easy swap or is it alot of work?
actually quite a bit of work since the risers are built into the top tree on the vn750.




If you see it on my bike I did it
VROC#30324
92 vn750(sold)
Current ride 05 1500 Classic FI
lovin' the new scoot



Quote:
"When all is said and done,usually more is said than done" UNK
Click on one x and drag to the other to read between them.

Psalm 40:1...
XI waited patiently for the Lord; and he turned unto me, and heard my cry. X
denny6006 is offline
post #3 of 13 (permalink) Old 04-08-2011, 08:24 AM Thread Starter
Member

ryanmitchy's Avatar

Join Date: Apr 2011
Posts: 30
iTrader: (0)

has anyone added say "Drag bars" and wondering what it cost to do the swap? Im just looking for something more straight as handlebars
ryanmitchy is offline

post #4 of 13 (permalink) Old 04-08-2011, 01:57 PM
Senior Member

Join Date: Mar 2011
Location: Madisonville. TX
Posts: 137
iTrader: (1)

yeah heres my setup bars were 24$ shipped any set of 7/8 will do these are 3 & 1/4 pullback rhey do have a 5 & 1/4 pullback most are 28 inches long i have seen a few at 30 inches the risers are ......snowmobile risers 3.5 inch they do make 2 inch and 5 inch $80
Attached Thumbnails
Click image for larger version

Name:	0408011131.jpg
Views:	617
Size:	96.1 KB
ID:	3594   Click image for larger version

Name:	0408011133.jpg
Views:	538
Size:	89.3 KB
ID:	3595   Click image for larger version

Name:	0408011134.jpg
Views:	567
Size:	93.9 KB
ID:	3596
qweesy is offline
post #5 of 13 (permalink) Old 04-08-2011, 04:15 PM Thread Starter
Member

ryanmitchy's Avatar

Join Date: Apr 2011
Posts: 30
iTrader: (0)

Quote:
Originally Posted by qweesy View Post
yeah heres my setup bars were 24$ shipped any set of 7/8 will do these are 3 & 1/4 pullback rhey do have a 5 & 1/4 pullback most are 28 inches long i have seen a few at 30 inches the risers are ......snowmobile risers 3.5 inch they do make 2 inch and 5 inch $80

Did you do the install? or have it done by a shop? Was it a big job? Thats the style im looking for just something straighter
ryanmitchy is offline
post #6 of 13 (permalink) Old 04-08-2011, 04:23 PM
Senior Member

Join Date: Mar 2011
Location: Madisonville. TX
Posts: 137
iTrader: (1)

Quote:
Originally Posted by ryanmitchy View Post
Did you do the install? or have it done by a shop? Was it a big job? Thats the style im looking for just something straighter
did myself its a pretty straight forward job can be done in about 30 minutes if your not changing to new grips with glue ......you can just get a 7/8 straight bar instead of a drag bar


here is a 32 inch

http://cgi.ebay.com/ebaymotors/STRAI...Q5fAccessories



here is a 26 inch

http://cgi.ebay.com/ebaymotors/7-8-S...item27b7273cff



seems the straight bars are a little more pricey

Last edited by qweesy; 04-08-2011 at 04:31 PM.
qweesy is offline
post #7 of 13 (permalink) Old 04-08-2011, 04:39 PM Thread Starter
Member

ryanmitchy's Avatar

Join Date: Apr 2011
Posts: 30
iTrader: (0)

do you need risers or just the bars?

Last edited by ryanmitchy; 04-08-2011 at 04:45 PM.
ryanmitchy is offline
post #8 of 13 (permalink) Old 04-08-2011, 05:11 PM
Senior Member

Join Date: Mar 2011
Location: Madisonville. TX
Posts: 137
iTrader: (1)

Quote:
Originally Posted by ryanmitchy View Post
do you need risers or just the bars?
straight bars you might not need them but I had to since the drag bars are bent a little and the controls hit the tank you will have to re route all your cables though or get shorter ones., I only had to re route my choke and clutch cable with the 3.5 risers

order the bars first then if you need risers get them that's what I did ,I didn't really want risers but had to get em


heres a real good idea you could get 7/8 sportbike clipons that attach to the forks instead of the stock handle bar mount just measure the mm of the vulcan forks, and you can adjust those how straight or angled you want them

Last edited by qweesy; 04-08-2011 at 05:16 PM.
qweesy is offline
post #9 of 13 (permalink) Old 04-08-2011, 06:05 PM
Members who have donated towards server costs

denny6006's Avatar

Join Date: Mar 2009
Location: InezKY pop.600
Posts: 5,236
iTrader: (9)

Garage

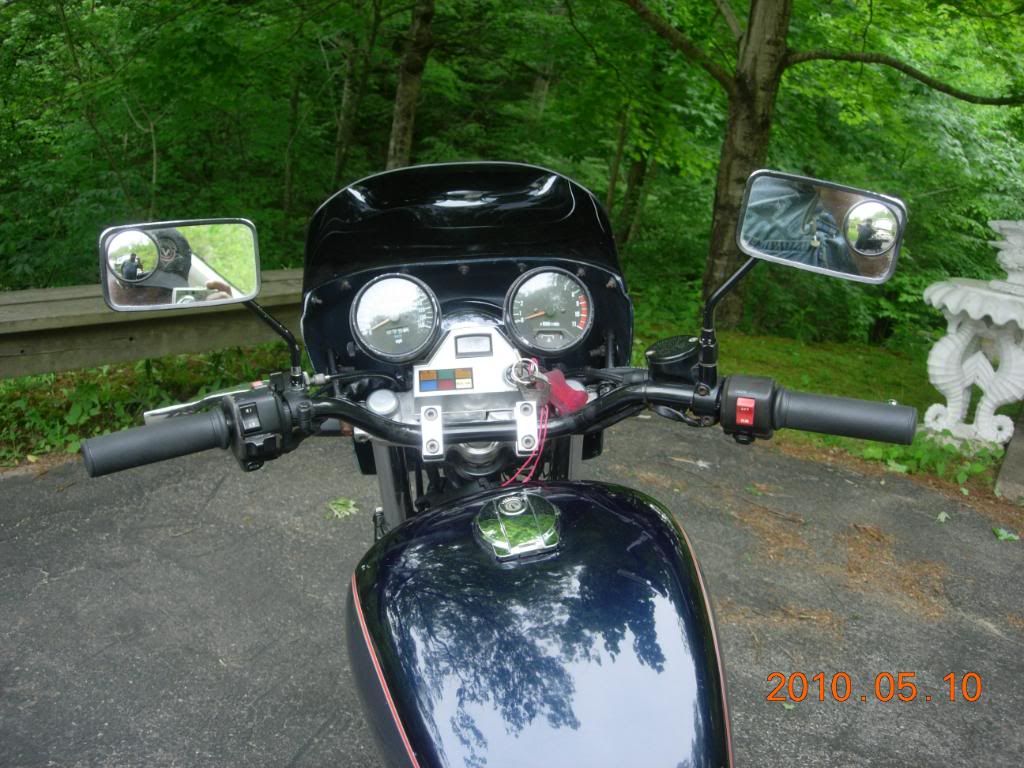

here is what I put on my 750 I think they were around twenty bucks from JC Whitney they were called Daytona bend,and I didn't have to buy risers,I did however switch to a KZ1000 clutch cable yo do away with the the curved fitting on the end of the cable where it goes into the lever.Those are the stock riser caps with the Kawasaki emblem cut out of the middle and dressed with a file and then polished out,not necessary but I liked the look of individual clamps.




If you see it on my bike I did it
VROC#30324
92 vn750(sold)
Current ride 05 1500 Classic FI
lovin' the new scoot



Quote:
"When all is said and done,usually more is said than done" UNK
Click on one x and drag to the other to read between them.

Psalm 40:1...
XI waited patiently for the Lord; and he turned unto me, and heard my cry. X
denny6006 is offline
post #10 of 13 (permalink) Old 04-08-2011, 06:05 PM
Members who have donated towards server costs

denny6006's Avatar

Join Date: Mar 2009
Location: InezKY pop.600
Posts: 5,236
iTrader: (9)

Garage
here is what I put on my 750 I think they were around twenty bucks from JC Whitney they were called Daytona bend,and I didn't have to buy risers,I did however switch to a KZ1000 clutch cable yo do away with the the curved fitting on the end of the cable where it goes into the lever.Those are the stock riser caps with the Kawasaki emblem cut out of the middle and dressed with a file and then polished out,not necessary but I liked the look of individual clamps.






If you see it on my bike I did it
VROC#30324
92 vn750(sold)
Current ride 05 1500 Classic FI
lovin' the new scoot



Quote:
"When all is said and done,usually more is said than done" UNK
Click on one x and drag to the other to read between them.

Psalm 40:1...
XI waited patiently for the Lord; and he turned unto me, and heard my cry. X
denny6006 is offline
