homemade highway pegs

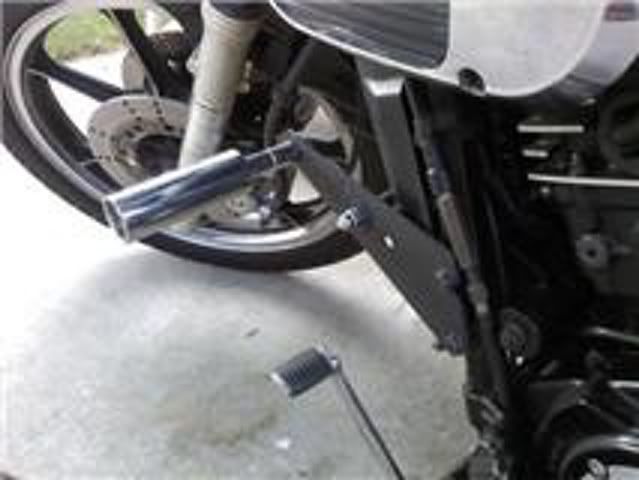

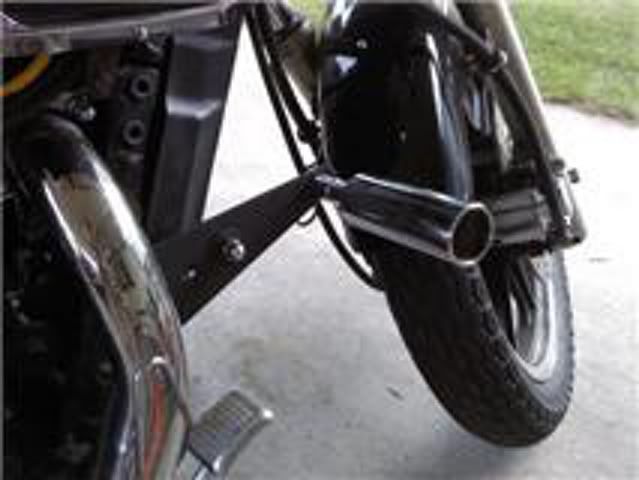

engineered these for a total of like $30. look real cool may have to move the bottom hole on the bracket to lower the pegs a bit but they dont feel to bad just took it for a short trip up to gas station. sorry bout the not so good pics took them with phone girlfriend isnt home and she has the camera. ill try to take better ones tomorrow.

gregtheplumber is offline
Sponsored Links
Advertisement

post #2 of 12 (permalink) Old 08-23-2010, 09:58 PM
Linkmeister Supreme

OlHossCanada's Avatar

Join Date: Aug 2008
Location: Lethbridge, Alberta, Canada
Posts: 7,960
iTrader: (8)

Brackets look similar to those made by Cspinner and lance328. Good basic design IMHO.
https://www.vn750.com/forum/showthread.php?t=9987

I think Cspinner used deepset sockets as spacers on a set he made, but do not recall what he used for foot rests.

I think you will need some rubber or gritty anti-slip tape on yours. Good start. I still need to make some for my bike.

Gordon

1991 VN 750 -"Cosmic Lady" or "Bad Girl"?
Purchased May 16, 2008
Approx.19,300km (12,000 miles)

H-D windshield
Relocated R/R
MF-AGM battery
Fiamm Freeway Blaster horns
F&S luggage rack and engine guard
Kury Offset Hiway pegs
July 13, 2016, Riding on the DARKSIDE now, Classic Radial 165/80-15


TOP TEN THINGS A NEW RIDER/OWNER SHOULD DO. Click on link.
https://www.vn750.com/forum/11-vn750-general-discussion/9127-top-ten-items-you-would-suggest-new-owner-do-his-new-ride.html
OlHossCanada is offline
post #3 of 12 (permalink) Old 08-23-2010, 10:16 PM Thread Starter
Member

gregtheplumber's Avatar

Join Date: Aug 2010
Posts: 38
iTrader: (0)

i was thinking bout maybe putting some strips of skateboard grip tape on them
gregtheplumber is offline

post #4 of 12 (permalink) Old 08-23-2010, 10:22 PM
Linkmeister Supreme

OlHossCanada's Avatar

Join Date: Aug 2008
Location: Lethbridge, Alberta, Canada
Posts: 7,960
iTrader: (8)

That`s the kind of stuff I was thinking of.

Gordon

1991 VN 750 -"Cosmic Lady" or "Bad Girl"?
Purchased May 16, 2008
Approx.19,300km (12,000 miles)

H-D windshield
Relocated R/R
MF-AGM battery
Fiamm Freeway Blaster horns
F&S luggage rack and engine guard
Kury Offset Hiway pegs
July 13, 2016, Riding on the DARKSIDE now, Classic Radial 165/80-15


TOP TEN THINGS A NEW RIDER/OWNER SHOULD DO. Click on link.
https://www.vn750.com/forum/showthread.php?t=9127
OlHossCanada is offline
post #5 of 12 (permalink) Old 08-24-2010, 02:09 AM
Senior Member

dirtrack650's Avatar

Join Date: Jul 2007
Location: Castle Rock, Wa
Posts: 1,750
iTrader: (0)

I've drawn up this design too for my VN. My layout includes a bar that connects the two pegs to stiffen the side to side forces. Does your heal bump the shift lever? Do you think this design will work with the Kawasaki OEM engine guard?

DT

95 VN750 (eBay)31k+
GL1100 front fender
OEM engine guard
OEM high back rest
'V-Twin' HWY pegs
Black 750 Spectre handlebars
SunPro Volt Meter (Amazon)
Maier bug shield (JCW)
Bar Ends anti-vibe (JCW)
Emgo air filters
Tank bag-Eclipse
Tail bag-FroZone Cooler
Back Rest-Igloo 6 pak cooler
WalMart Saddle Bags
R/R Relocate
Dry Splines Lubed
AGM DieHard-Sears
Gutted Goat
Sporster XL Mufflers
LED's-stop,tail,turn,marker
Pickup coil mod to .45mm
Silverstar headlight
Rotella T6
dirtrack650 is offline
post #6 of 12 (permalink) Old 08-24-2010, 02:40 AM Thread Starter
Member

gregtheplumber's Avatar

Join Date: Aug 2010
Posts: 38
iTrader: (0)

heal doesnt seem to hit the shifter ill do a longer ride tomarrow to see better. dont know about the engine guard. i have a bar running between bout half way up bracket thats what the two acorn nuts ar for on the bracket. makes it real sturdy
gregtheplumber is offline
post #7 of 12 (permalink) Old 08-24-2010, 10:36 AM
Senior Member

dirtrack650's Avatar

Join Date: Jul 2007
Location: Castle Rock, Wa
Posts: 1,750
iTrader: (0)

Quote:
Originally Posted by gregtheplumber View Post
. i have a bar running between bout half way up bracket thats what the two acorn nuts ar for on the bracket. makes it real sturdy
I missed that in the photo, nice...

DT

95 VN750 (eBay)31k+
GL1100 front fender
OEM engine guard
OEM high back rest
'V-Twin' HWY pegs
Black 750 Spectre handlebars
SunPro Volt Meter (Amazon)
Maier bug shield (JCW)
Bar Ends anti-vibe (JCW)
Emgo air filters
Tank bag-Eclipse
Tail bag-FroZone Cooler
Back Rest-Igloo 6 pak cooler
WalMart Saddle Bags
R/R Relocate
Dry Splines Lubed
AGM DieHard-Sears
Gutted Goat
Sporster XL Mufflers
LED's-stop,tail,turn,marker
Pickup coil mod to .45mm
Silverstar headlight
Rotella T6
dirtrack650 is offline
post #8 of 12 (permalink) Old 08-24-2010, 03:15 PM
Senior Member

LibertyPilot's Avatar

Join Date: Jul 2008
Location: Titusville, New Jersey
Posts: 6,397
iTrader: (0)

Very cool dude. Give yourself a little extra stretch on those long rides, looks cool, and all for 30 beans. Can't beat that. When you cover them with grip tape, have you considered making them striped? Kinda like Kury's but yours?

Quote:
Originally Posted by OlHossCanada View Post
Brackets look similar to those made by Cspinner and lance328. Good basic design IMHO.
https://www.vn750.com/forum/showthread.php?t=9987

I think Cspinner used deepset sockets as spacers on a set he made, but do not recall what he used for foot rests.

I think you will need some rubber or gritty anti-slip tape on yours. Good start. I still need to make some for my bike.
Already got the pegs Hoss!!
LibertyPilot is offline
post #9 of 12 (permalink) Old 08-24-2010, 09:54 PM Thread Starter
Member

gregtheplumber's Avatar

Join Date: Aug 2010
Posts: 38
iTrader: (0)

yeah i was thinkin of doin that
gregtheplumber is offline
post #10 of 12 (permalink) Old 08-24-2010, 10:44 PM
Old Fart

Knifemaker's Avatar

Join Date: Jun 2004
Location: Catawissa, MO
Posts: 11,674
iTrader: (4)

Garage
Quote:
Originally Posted by dirtrack650 View Post
I've drawn up this design too for my VN. My layout includes a bar that connects the two pegs to stiffen the side to side forces.
Kinda like this?
http://www.flickr.com/photos/knifema...7602277630067/


Anyones welcome to use my design. they do not fold up BTW.

All parts were available at my local Lowes. There is a 3/16 of an inch difference between the top engine mount bolt and the bottom one...meaning if you want the bracket to be perpendicular to ground, you need to add a 3/16 shim to the top of your bracket, otherwise they will not be straight. ( I solved this by crossing pieces of 3/16 strap steel to make the two front struts. And used a piece of aluminum bar for the side support, basicly making a triangle out of the three pieces.)

The cross tube is just a length of aluminum tubing I polished to cover the 1/2 inch threaded rod.

KM

I used bicycle grips for the rubber on the pegs.
