VN900 Seat on my VN700

Sorry some of the pics aren't that great.

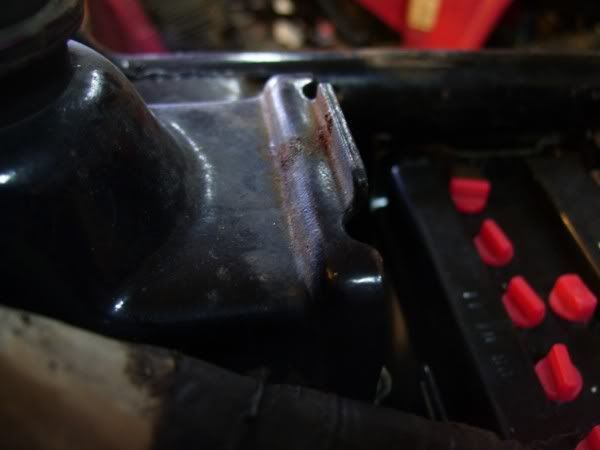

I cut this lip off flush to let the tabon the seat slide in further.
I also trimmed the inside of the tab on the seat about 1/4". The pic for this didn't turn out.

I also dropped the rear fender bracket down about 1". This let the seat sit down on the frame, and evened out the gap between the tire & fender.

I used a socket as a spacer to keep the proper gapwhen welding on the fender brackets. I cut the bracket off of the frame and made some spacers out of flat steel to relocate the them. I bolted the brackets to the fender to hold them in the proper location and welded the flat steel to the frame then to the bracket.

This is the bracket I made to mount the rear of the seat. It's a piece of 1/8"x3/4" flat steel with holes in the ends for bolts to go through to the fender mount brackets.

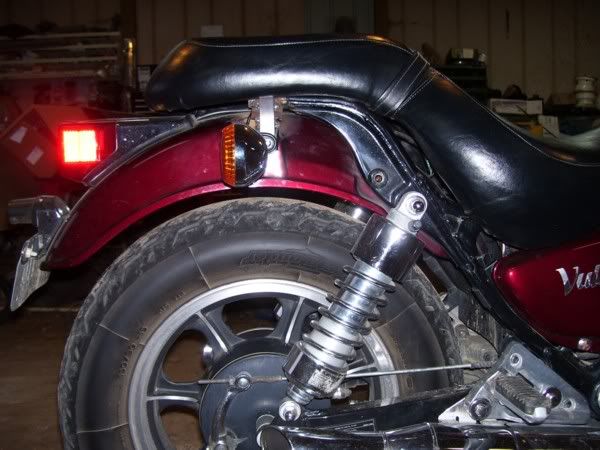

This is a side view. I mounted the turn signals to the fender brackets also. The bolts I used were the ones that held the back rest on. You can see how the fender/tire gap is even all the way around. It also gives the bike a lowered look. I moved the seat forward to close the gap between the seat & tank, But that left a gap between the seat and the frame witch is less noticable

The gap between the seat and taillight is about 3/8".

There it is. The ergos of the seat are different. I'm closer to the bars, and about an 1" taller. Now I'm 5'8" and it fits me pretty good. If you're taller you may want to move the seat back and have the gap between the tank & seat. It's alot more comfy than the stock seat.
I know this isn't the most indepth post, and I'll try to fill in some of the gaps with more pics when I can. Questions or comments welcome.

"DAISY" 85 VN 700 19K
Owned since 09/12/09
Done list
Windshield
Marbled
Metal radiator drain plug
Removed exhaust baffles
TOCMAN. ACCT's
VN900 Seat

TO Do list
To much to list


VN900 seat on my VN700
https://www.vn750.com/forum/showthread.php?t=12903

Debaffling my stock pipes
https://www.vn750.com/forum/showthread.php?t=12756
STUMPYSKAW is offline
Sponsored Links
Advertisement

post #2 of 16 (permalink) Old 10-05-2009, 11:39 PM
Senior Member

letitflight's Avatar

Join Date: Mar 2006
Posts: 668
iTrader: (0)

thanks for sharing this cool write up...nice pics too.
I just got a vn900 custom seat as well and was trying to get some ideas.

PEACE!!!

2005 Vulcan 750
letitflight is offline
post #3 of 16 (permalink) Old 10-05-2009, 11:55 PM
and the Adventure Cycle

hyperbuzzin's Avatar

Join Date: Jun 2004
Location: Western PA
Posts: 6,138
iTrader: (1)

Uh Oh, the search for Mustang and Corbin seats may have been replaced by searches for 900 custom seats now!! LOL

Good job Stumpy!!


AKA: Tim & 'The Adventure Cycle' VROC #24567, NEVROC, SteelCity VROC


"When life throws you curves,
Aim for the apex."

Author Unknown
hyperbuzzin is offline

post #4 of 16 (permalink) Old 10-06-2009, 05:03 AM
Redneck on a rice burner

Wileysden's Avatar

Join Date: Jun 2008
Location: American by birth,Southern by the grace of God ..,.AMEN !
Posts: 179
iTrader: (0)

I have a bid on a vn900 seat right now.I hope no one TRYS to outbid ,I know someone will give me a run on it.
Wileysden is offline
post #5 of 16 (permalink) Old 11-02-2009, 06:46 PM Thread Starter
Senior Member

STUMPYSKAW's Avatar

Join Date: Sep 2009
Location: South-Central, MO
Posts: 149
iTrader: (0)

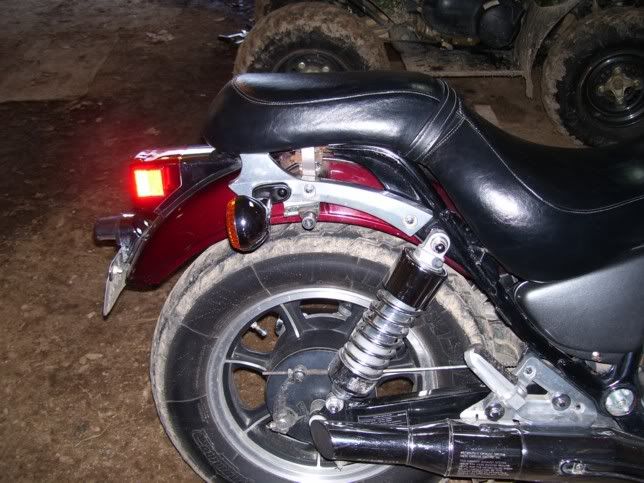

Heres a pic of what I did with the side bars.

"DAISY" 85 VN 700 19K
Owned since 09/12/09
Done list
Windshield
Marbled
Metal radiator drain plug
Removed exhaust baffles
TOCMAN. ACCT's
VN900 Seat

TO Do list
To much to list


VN900 seat on my VN700
https://www.vn750.com/forum/showthread.php?t=12903

Debaffling my stock pipes
https://www.vn750.com/forum/showthread.php?t=12756
STUMPYSKAW is offline
post #6 of 16 (permalink) Old 11-02-2009, 06:52 PM
Giggity!

kanuck69's Avatar

Join Date: Jun 2007
Location: Ohio, Zanesville
Posts: 4,307
iTrader: (24)

Garage
kanuck69 is offline
post #7 of 16 (permalink) Old 11-02-2009, 09:15 PM Thread Starter
Senior Member

STUMPYSKAW's Avatar

Join Date: Sep 2009
Location: South-Central, MO
Posts: 149
iTrader: (0)

Quote:
Originally Posted by kanuck69 View Post
Not to shabby.
Thanks
I've gotta do something about the empty space between the seat and bar. Possibly a piece of sheet alum just to cover it up.

"DAISY" 85 VN 700 19K
Owned since 09/12/09
Done list
Windshield
Marbled
Metal radiator drain plug
Removed exhaust baffles
TOCMAN. ACCT's
VN900 Seat

TO Do list
To much to list


VN900 seat on my VN700
https://www.vn750.com/forum/showthread.php?t=12903

Debaffling my stock pipes
https://www.vn750.com/forum/showthread.php?t=12756
STUMPYSKAW is offline
post #8 of 16 (permalink) Old 11-03-2009, 08:04 AM
Giggity!

kanuck69's Avatar

Join Date: Jun 2007
Location: Ohio, Zanesville
Posts: 4,307
iTrader: (24)

Garage
Quote:
Originally Posted by STUMPYSKAW View Post
Thanks
I've gotta do something about the empty space between the seat and bar. Possibly a piece of sheet alum just to cover it up.
That was the first thing that came to mind. But would you do it black or polished aluminum? That's the question.
kanuck69 is offline
post #9 of 16 (permalink) Old 11-03-2009, 09:56 AM Thread Starter
Senior Member

STUMPYSKAW's Avatar

Join Date: Sep 2009
Location: South-Central, MO
Posts: 149
iTrader: (0)

I'm not sure, I think when I finally get saddle bags nobody will be able to see it anyways. Probably wouldn't paint it.

"DAISY" 85 VN 700 19K
Owned since 09/12/09
Done list
Windshield
Marbled
Metal radiator drain plug
Removed exhaust baffles
TOCMAN. ACCT's
VN900 Seat

TO Do list
To much to list


VN900 seat on my VN700
https://www.vn750.com/forum/showthread.php?t=12903

Debaffling my stock pipes
https://www.vn750.com/forum/showthread.php?t=12756
STUMPYSKAW is offline
post #10 of 16 (permalink) Old 11-06-2009, 09:52 PM
Senior Member

Jace Bror's Avatar

Join Date: Jul 2008
Location: Prior Lake (MPLS area), MN
Posts: 950
iTrader: (1)

That looks pretty good.

Kinda of funny though. Cuz everyone who has a 900 hates the stock seat. And replaces it with a Mustang or a Corbin. So I wouldn't worry about them being bought up.

I never rode the 900 stock seat mine came with a Mustang.

Sold 750 (9-09)
Bought '07 900 Classic "LT" (6-09)
Mustand Seat (6-09)
Balanced Carbs (4-09)
Adjusted Mix Screws (4-09)
Drilled Baffles 8 holes (4-09)
R/R Relocated (3-09)
Splines Lubed (3-09)
Metzelers ME880 170/80 in back 100/90 in front (3-09)
Painted flat blak (3-09)
Kuri grips (8-08)
Kuri Longhorn pegs (8-08)
Iridium Plugs (8-08)
Highway bar/ engine guard(FS)
Some saddlebags no idea which ones
Facebook group Vulcan 750 Riders (Invite Only Group)
Facebook ID Eli Gaffke
Jace Bror is offline
