Yet another "lower my Vulcan" thread

Actually, it's a "lowered my Vulcan" thread. I did the 1/8 plate with a shackle relocation bracket, and raised the forks just a hair under an inch. I got finished about the time the wife and kids got home so I haven't test driven it yet. It feels pretty good sitting on it, the back seems pretty stiff. I'll end up pulling the bracket off and just changing shocks, but I wanted it lower today and didn't want to wait. I'll post pics tomorrow or over the weekend.

1991 VN750, purchased 5/5/15, 9092 miles
Sock is offline
Sponsored Links
Advertisement

post #2 of 11 (permalink) Old 06-05-2015, 12:41 AM
FREEBIRDS MC CENTRAL NY

OleDirtyDoc's Avatar

Join Date: May 2011
Location: Norwich,NY
Posts: 15,878
iTrader: (0)

Garage
Send a message via Yahoo to OleDirtyDoc
Melissa Fahye has 10.5" progressive shocks and moved the forks 1.5" and handles well,just the footpegs scrape more

ONE RATS ASS GIVEN PER POST
Support your local FREEBIRDS MC
1986/5 Vn700/750 Frankenfook cross eyed bitch "Mellisa Fayhe"
I am a BIKER and i'm proud.FREEBIRDS MC CENTRAL NY

lowered with progessive 412 10" shocks
rejetted for K/N Pods part#rc 2340
sportster seat

'I didn't lose my mind.i gave it away

BRING BACK WOLFIE."Peace and Carrots"RIP
"And I'm free...as a bird"John Lennon Free as a Bird
"I only carry when I have my pants on"Joe Robinson RIP aka Old Dog
OleDirtyDoc is offline
post #3 of 11 (permalink) Old 06-05-2015, 12:46 AM
Senior Member

Nitrospaz9's Avatar

Join Date: Jul 2013
Location: Saddle Brook, NJ
Posts: 1,067
iTrader: (0)

How do you move the forks?
Nitrospaz9 is offline

post #4 of 11 (permalink) Old 06-05-2015, 12:59 AM
FREEBIRDS MC CENTRAL NY

OleDirtyDoc's Avatar

Join Date: May 2011
Location: Norwich,NY
Posts: 15,878
iTrader: (0)

Garage
Send a message via Yahoo to OleDirtyDoc
Loosen up the triple tree and slide the fork.but I don't recommend doing it unless the rear is lowered, as the handling will get very wonky

ONE RATS ASS GIVEN PER POST
Support your local FREEBIRDS MC
1986/5 Vn700/750 Frankenfook cross eyed bitch "Mellisa Fayhe"
I am a BIKER and i'm proud.FREEBIRDS MC CENTRAL NY

lowered with progessive 412 10" shocks
rejetted for K/N Pods part#rc 2340
sportster seat

'I didn't lose my mind.i gave it away

BRING BACK WOLFIE."Peace and Carrots"RIP
"And I'm free...as a bird"John Lennon Free as a Bird
"I only carry when I have my pants on"Joe Robinson RIP aka Old Dog
OleDirtyDoc is offline
post #5 of 11 (permalink) Old 06-05-2015, 10:22 AM
Members who have donated towards server costs

Join Date: Nov 2007
Location: Chandler, Arizona
Posts: 2,850
iTrader: (0)

If you are doing it for cosmetic reasons, I wouldn't. I routinely drag the pegs in turns on my stock Vulcan (I'm nearly 260 pounds) Less ground clearance would probably make it easy to crash in sharp turns, like at a stoplight.

I am a motorcyclist, NOT a biker.


1997 Vulcan 750, purchased about a week ago
2006 Sportster 1200 Low
2013 Royal Enfield Bullet 500, converted to carb
2001 Yamaha XT225, heavily modified
2004 Honda Rebel 250
1979 Vespa P200E
2002 Vulcan 750 parts bike
1994 Yamaha XT225 parts bike
VN750Rider/Jerry is offline
post #6 of 11 (permalink) Old 06-05-2015, 11:38 AM
FREEBIRDS MC CENTRAL NY

OleDirtyDoc's Avatar

Join Date: May 2011
Location: Norwich,NY
Posts: 15,878
iTrader: (0)

Garage
Send a message via Yahoo to OleDirtyDoc
Dats were yas gots to be careful.I only drag pegs when I'm REALLY into it.it's not a crotch rocket and anyone who buys a Vulcan already knows that.and if you crash from scraping pegs at a stop sign you might not realize what thaw word STOP means.

ONE RATS ASS GIVEN PER POST
Support your local FREEBIRDS MC
1986/5 Vn700/750 Frankenfook cross eyed bitch "Mellisa Fayhe"
I am a BIKER and i'm proud.FREEBIRDS MC CENTRAL NY

lowered with progessive 412 10" shocks
rejetted for K/N Pods part#rc 2340
sportster seat

'I didn't lose my mind.i gave it away

BRING BACK WOLFIE."Peace and Carrots"RIP
"And I'm free...as a bird"John Lennon Free as a Bird
"I only carry when I have my pants on"Joe Robinson RIP aka Old Dog
OleDirtyDoc is offline
post #7 of 11 (permalink) Old 06-06-2015, 11:30 PM Thread Starter
Member

Sock's Avatar

Join Date: May 2015
Location: MS Gulf Coast
Posts: 65
iTrader: (0)

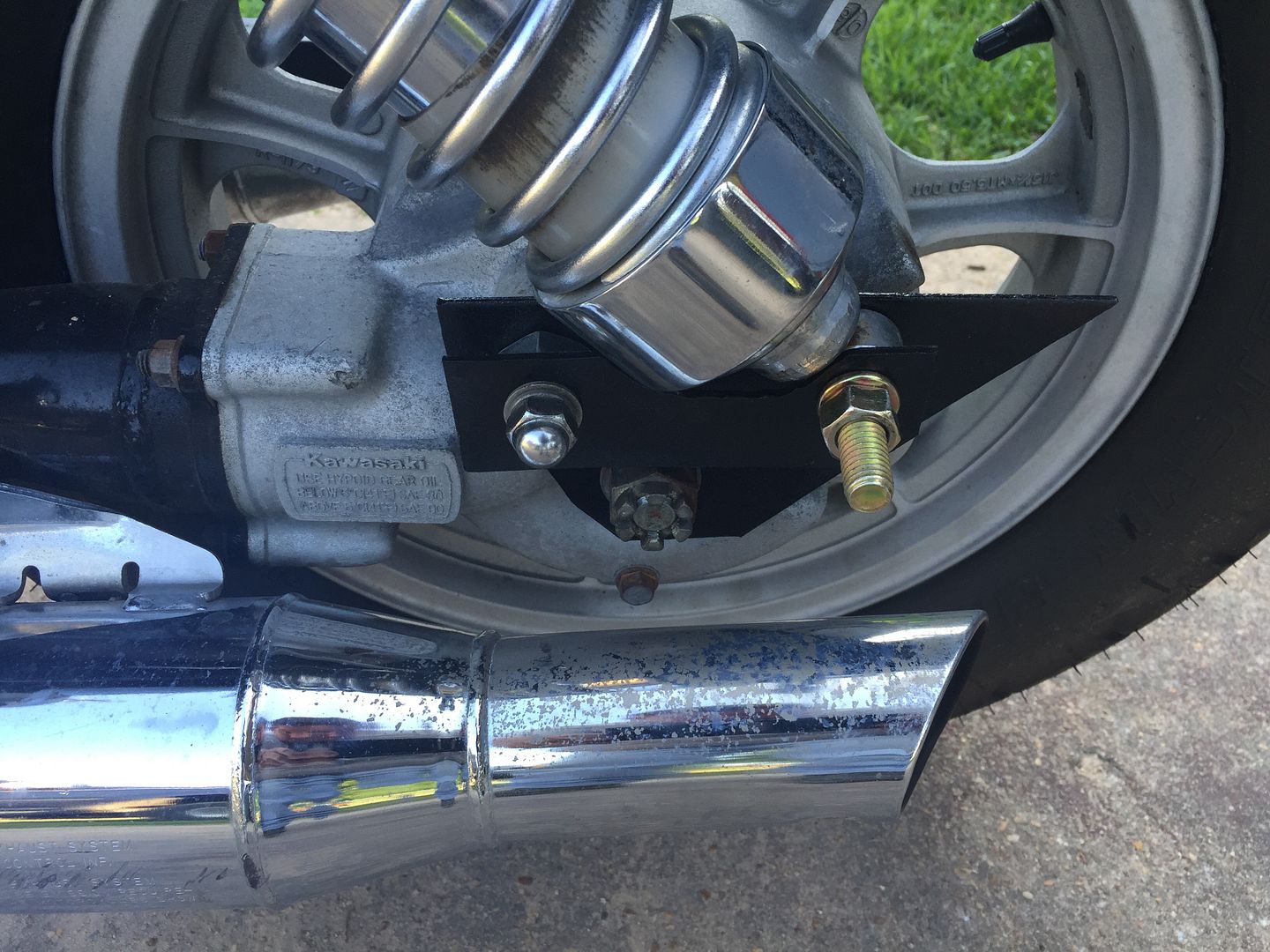

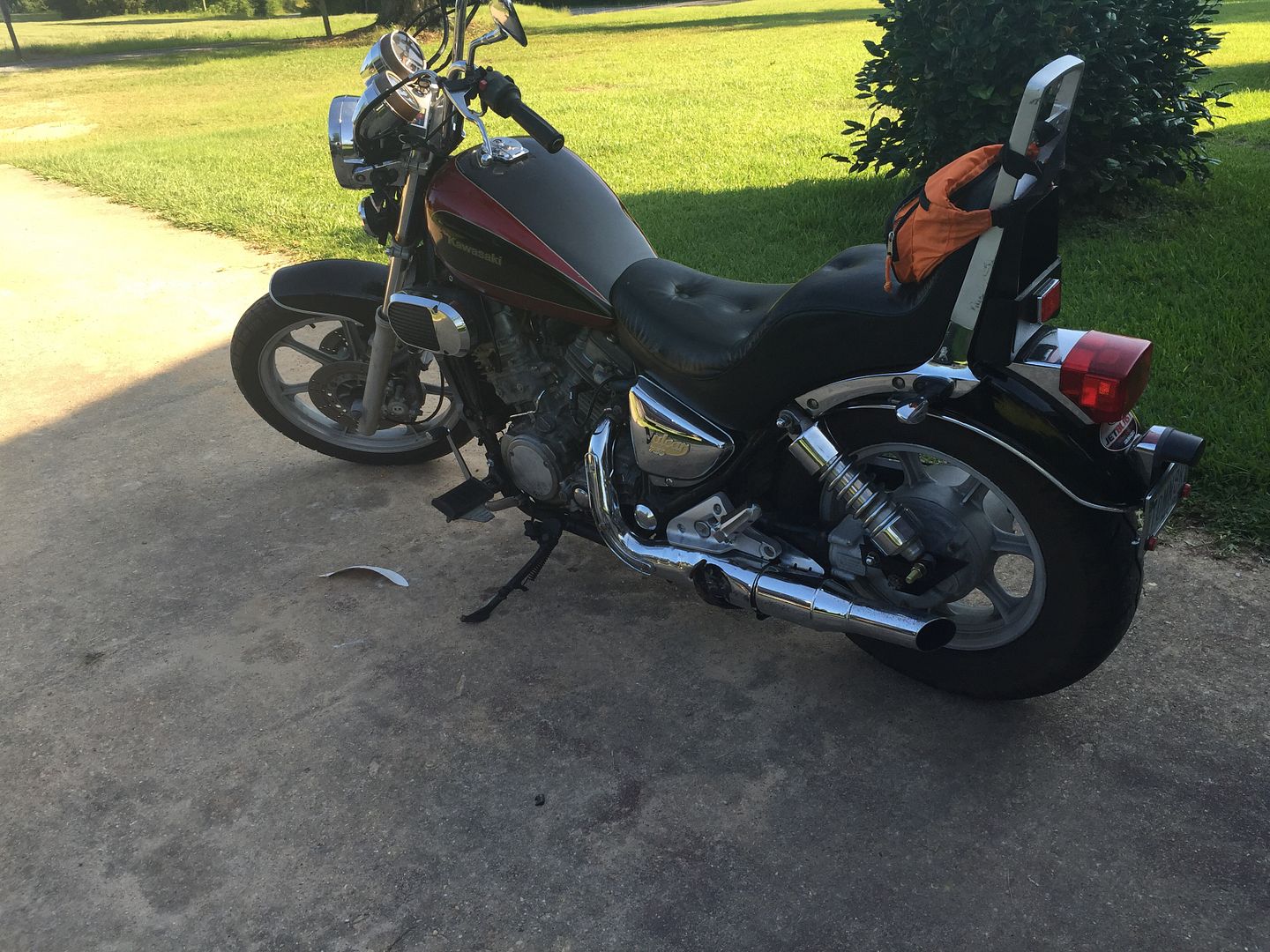

I did it because I'm a short guy. I took it a bit over 100 miles yesterday, no bottoming out on the railroad tracks or bumps, but I did drag the center stand a time or two.

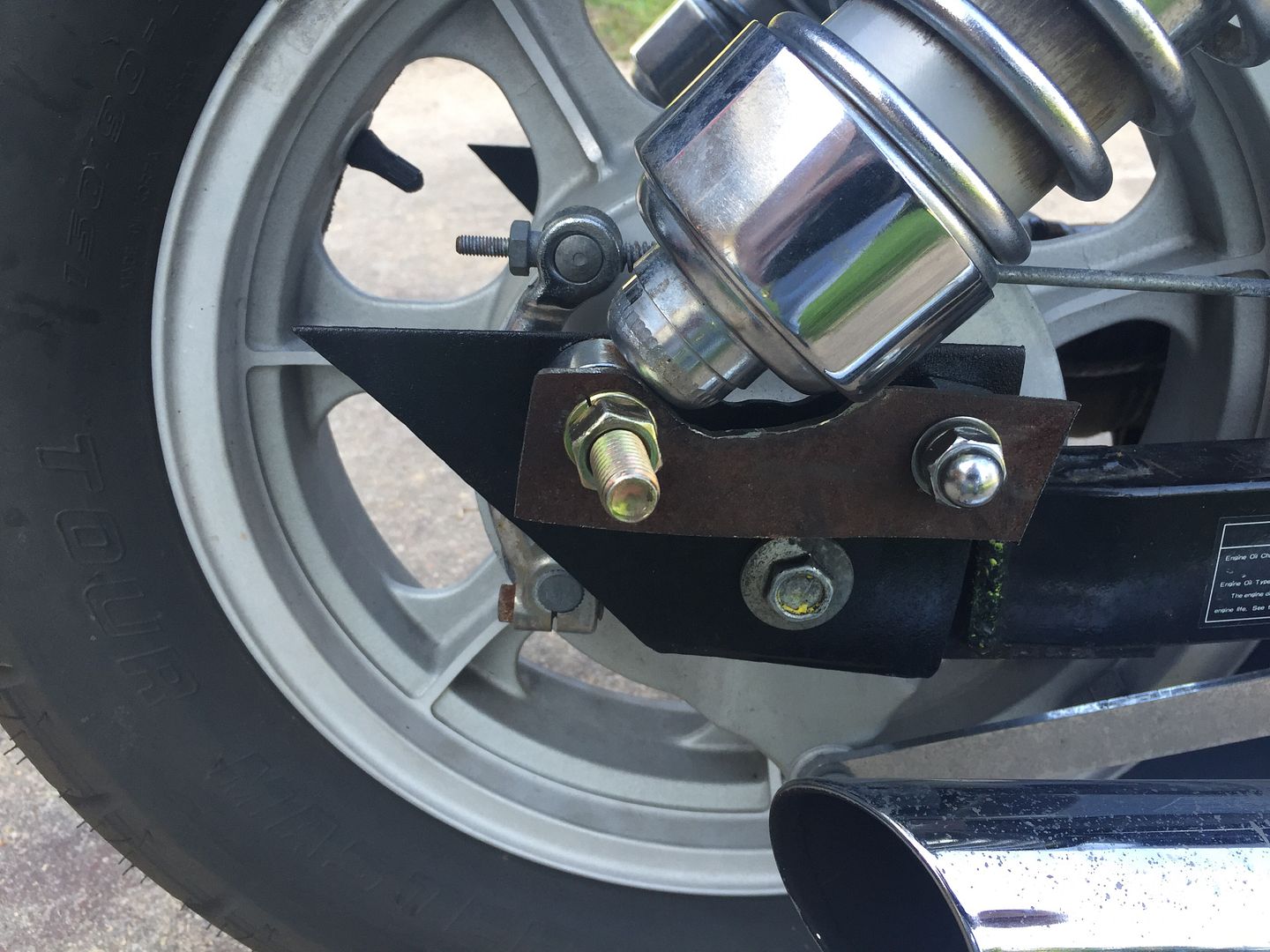

I started off with big triangles and worked them to shape. I didn't cut the rear of the brackets down because my wife proclaimed the pointy bit "bad ass."

1991 VN750, purchased 5/5/15, 9092 miles
Sock is offline
post #8 of 11 (permalink) Old 06-07-2015, 09:02 AM
FREEBIRDS MC CENTRAL NY

OleDirtyDoc's Avatar

Join Date: May 2011
Location: Norwich,NY
Posts: 15,878
iTrader: (0)

Garage
Send a message via Yahoo to OleDirtyDoc
Sweet.I removed my center stand

ONE RATS ASS GIVEN PER POST
Support your local FREEBIRDS MC
1986/5 Vn700/750 Frankenfook cross eyed bitch "Mellisa Fayhe"
I am a BIKER and i'm proud.FREEBIRDS MC CENTRAL NY

lowered with progessive 412 10" shocks
rejetted for K/N Pods part#rc 2340
sportster seat

'I didn't lose my mind.i gave it away

BRING BACK WOLFIE."Peace and Carrots"RIP
"And I'm free...as a bird"John Lennon Free as a Bird
"I only carry when I have my pants on"Joe Robinson RIP aka Old Dog
OleDirtyDoc is offline
post #9 of 11 (permalink) Old 06-07-2015, 09:13 AM
Senior Lurker

Sloppyburpfest's Avatar

Join Date: Nov 2006
Location: Westchester, New York
Posts: 509
iTrader: (0)

Does the bike sit ok when parked and on the side stand?

-Sloppy

My Flickr Gallery < Link >
Westco MF battery, R/R relocated
Küryakyn LED battery monitor
Kawasaki F&S luggage rack, bag supports & headlight visor
Splines lubed at 700 miles (they were dry from the factory!)
Anodized black SuperBrace fork brace < Link >
Mutazu GA hard saddlebags < Link >
Kawasaki F&S floorboards < Link >
Chrome Küryakyn wide brake and clutch levers < Link >
Clear Alternatives LED tail light board
National Cycle N2220 Windshield
R.I.P. Lance328
Sloppyburpfest is offline
post #10 of 11 (permalink) Old 06-07-2015, 09:42 AM
FREEBIRDS MC CENTRAL NY

OleDirtyDoc's Avatar

Join Date: May 2011
Location: Norwich,NY
Posts: 15,878
iTrader: (0)

Garage
Send a message via Yahoo to OleDirtyDoc
Had to heat my side stand up with a map torch and bend it
