?? O-Ring Size ??

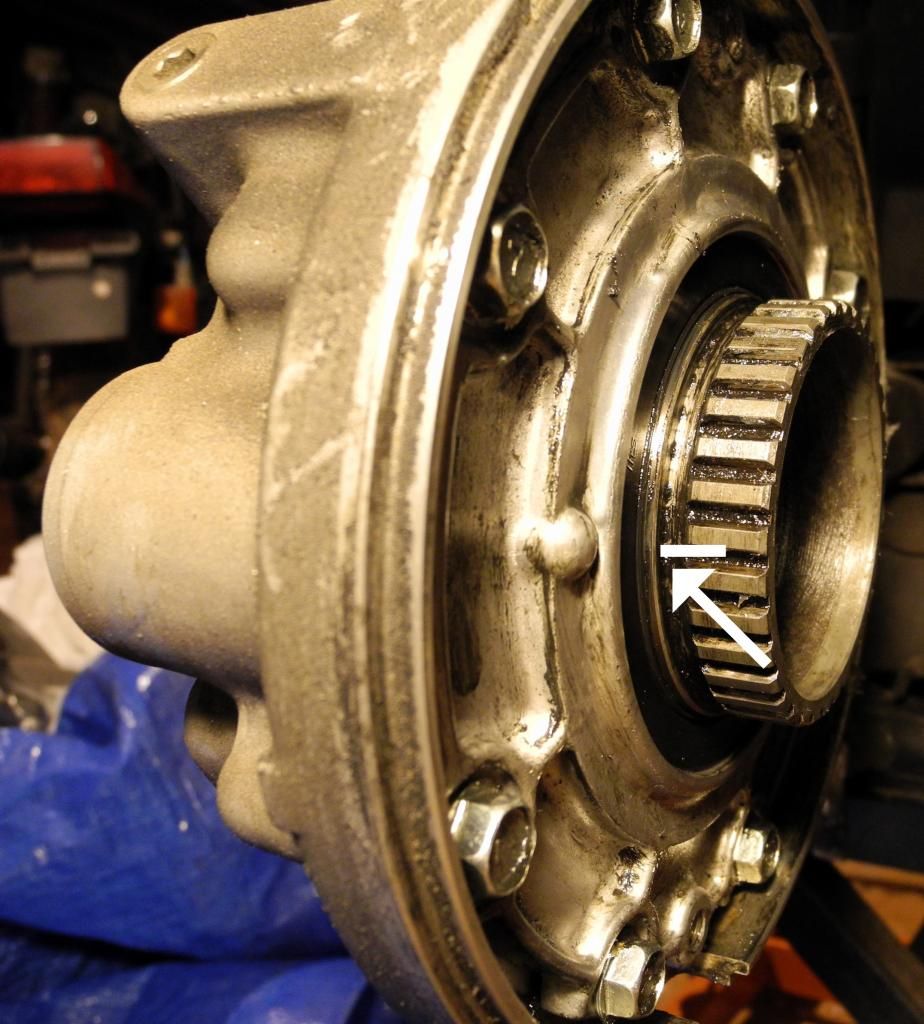

What is the size of the o-ring that goes here (see arrow) ?



I've tried several but they've all shredded allowing the grease to leak out.

I Corinthians 1:18

Last edited by 3Fan4Life; 06-13-2014 at 08:54 PM.
3Fan4Life is offline
Sponsored Links
Advertisement

post #2 of 5 (permalink) Old 06-13-2014, 08:08 PM
Super Moderator

Join Date: Feb 2013
Location: SW Florida
Posts: 2,451
iTrader: (5)

your talking about an oring or seal that seals the output (splined part) right?

the outer perimeter of the case does not get an oring or seal

looks like the seal part number is 92049-1234

according to the manual its not an easy replacement. not just a pry it out/hammer it in thing

2005 VN750

Sold 11-27-17

Last edited by michiganteddybear; 06-13-2014 at 08:28 PM.
michiganteddybear is offline
post #3 of 5 (permalink) Old 06-13-2014, 08:55 PM Thread Starter
Member

3Fan4Life's Avatar

Join Date: Apr 2013
Location: Moneta, VA
Posts: 47
iTrader: (2)

Quote:
Originally Posted by michiganteddybear View Post
your talking about an oring or seal that seals the output (splined part) right?

the outer perimeter of the case does not get an oring or seal

looks like the seal part number is 92049-1234

according to the manual its not an easy replacement. not just a pry it out/hammer it in thing

I've added an arrow to make it more clear what I'm asking about.

I Corinthians 1:18
3Fan4Life is offline

post #4 of 5 (permalink) Old 06-13-2014, 09:08 PM
Banned

Join Date: Jan 2013
Posts: 2,190
iTrader: (0)

I am pretty sure no O ring there.
wmsonta is offline
post #5 of 5 (permalink) Old 06-13-2014, 09:21 PM
200% senile

Texas's Avatar

Join Date: Sep 2013
Location: Close to San Antonio, TX
Posts: 164
iTrader: (2)

http://www.partzilla.com/parts/searc...EAR/parts.html

1996 VN 750
2007 Vulcan Mean Streak SE

When I was younger I was afraid I'd die riding. Now that I'm old and falling apart, I'm afraid I won't.
Texas is offline
