My bike is too high!

I have a 2005 VN750
Love it, but way too high for me.
Anyone got any ideas as cheap as possible?
I saw the bracket diagram and Im intrigued but theres no information. How do I know which I need? Also the opposing side doesnt have 2 bolts to work with...
Help?
dprider is offline
Sponsored Links
Advertisement

post #2 of 57 (permalink) Old 06-03-2014, 10:45 PM
Chasin' the blacktop

Spencer1's Avatar

Join Date: Sep 2012
Location: Maysville GA
Posts: 1,498
iTrader: (0)

Your stock rear shocks are 12.5" long, get some lower shocks for the rear but not much lower than 11" to keep the rear tire from rubbing.

Carefully loosen the triple tree clamps that hold the front shock tubes and ease the front down until about 2" of tube stick up of the triple tree. Be careful not to lower it too far, I hear they can be hard to get back up.

Some seats from other bike models are a little lower but take a bit of modding to fit.

Eat more spinach and drink lots of milk to grow your legs.

[/SIGPIC][/SIGPIC] The mini-skirt is a very functional article of clothing. With it a woman can run much faster; and because of it she may have too.
North Georgia
Spencer1 is offline
post #3 of 57 (permalink) Old 06-03-2014, 11:10 PM
Sparky!!!

slimvulcanrider's Avatar

Join Date: May 2008
Posts: 8,695
iTrader: (3)

Garage
Quote:
Originally Posted by dprider View Post
I have a 2005 VN750
Love it, but way too high for me.
Anyone got any ideas as cheap as possible?
I saw the bracket diagram and Im intrigued but theres no information. How do I know which I need? Also the opposing side doesnt have 2 bolts to work with...
Help?

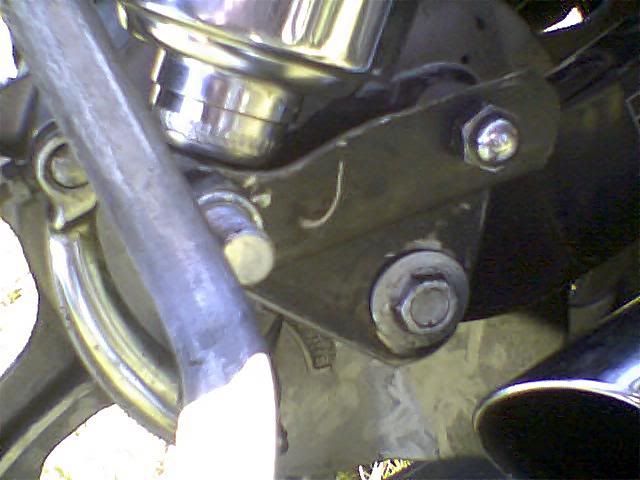

I made mine out of flat plate.. and of course you don't have three holes.. you are using your stock shock mount and the axle for the first two holes, and the third hole is your new shock bolt.



another note... those cad drawings aren't quite right.. I had to tweek them a little bit to get the holes to line up and the brackets to clear the shocks.
slimvulcanrider is offline

post #4 of 57 (permalink) Old 06-03-2014, 11:31 PM Thread Starter
Junior Member

Join Date: Jun 2014
Posts: 21
iTrader: (0)

Slim, Im with you on that side, but the other side...
dprider is offline
post #5 of 57 (permalink) Old 06-03-2014, 11:32 PM Thread Starter
Junior Member

Join Date: Jun 2014
Posts: 21
iTrader: (0)

Fool, I cant afford those shocks.
dprider is offline
post #6 of 57 (permalink) Old 06-03-2014, 11:35 PM
Sparky!!!

slimvulcanrider's Avatar

Join Date: May 2008
Posts: 8,695
iTrader: (3)

Garage
Quote:
Originally Posted by dprider View Post
Slim, Im with you on that side, but the other side...
I did the exact same thing to the other side... I posted the hard side to configure.. which was the brake side... the final drive side was cake.


Last edited by slimvulcanrider; 06-03-2014 at 11:41 PM.
slimvulcanrider is offline
post #7 of 57 (permalink) Old 06-04-2014, 12:20 AM
Senior Member

emtdon's Avatar

Join Date: May 2013
Location: PRINCETON, WV
Posts: 468
iTrader: (4)

i have a set of progressives for sale in the sell or swap section. i think they are 11 inches.

https://www.vn750.com/forum/showthread.php?t=47290
Sent from Motorcycle.com App

2003 kaw vn 750 pushing 40,000 miles.
tp stator
dampers
coil relay mod
other stuff not listed
mustang seat
motorcycle repair at a stealership 1 million bucks, repairs with the help of the Vulcan750 forum priceless.
emtdon is offline
post #8 of 57 (permalink) Old 06-04-2014, 12:34 AM
ass hole extaordinaire

new rider 9984's Avatar

Join Date: May 2012
Location: Sulphur Springs TX
Posts: 3,780
iTrader: (7)

i put a set of 11 inch harley shocks on mine you have to take out the rubber sleeves and install your original ones but they look better

Quote:
Originally Posted by denny6006 View Post
Sucks getting old but it beats not getting old.

i got my helmet but it sure makes licking the windows a chore

cell phone number for anyone who needs it 214-516-1738

photobucket link
http://s1066.photobucket.com/user/newrider9984/library/
new rider 9984 is offline
post #9 of 57 (permalink) Old 06-04-2014, 12:43 AM
FREEBIRDS MC CENTRAL NY

OleDirtyDoc's Avatar

Join Date: May 2011
Location: Norwich,NY
Posts: 15,878
iTrader: (0)

Garage
Send a message via Yahoo to OleDirtyDoc
Suzuki 650 savage (or s40 )bolt on.don't feel bad sometimes I'm higbted than my bikee

ONE RATS ASS GIVEN PER POST
Support your local FREEBIRDS MC
1986/5 Vn700/750 Frankenfook cross eyed bitch "Mellisa Fayhe"
I am a BIKER and i'm proud.FREEBIRDS MC CENTRAL NY

lowered with progessive 412 10" shocks
rejetted for K/N Pods part#rc 2340
sportster seat

'I didn't lose my mind.i gave it away

BRING BACK WOLFIE."Peace and Carrots"RIP
"And I'm free...as a bird"John Lennon Free as a Bird
"I only carry when I have my pants on"Joe Robinson RIP aka Old Dog
OleDirtyDoc is offline
post #10 of 57 (permalink) Old 06-04-2014, 12:50 AM
ass hole extaordinaire

new rider 9984's Avatar

Join Date: May 2012
Location: Sulphur Springs TX
Posts: 3,780
iTrader: (7)

doc you been drinking or is your spell check acting up again lol

Quote:
Originally Posted by denny6006 View Post
Sucks getting old but it beats not getting old.

i got my helmet but it sure makes licking the windows a chore

cell phone number for anyone who needs it 214-516-1738

photobucket link
http://s1066.photobucket.com/user/newrider9984/library/
new rider 9984 is offline
