Bike revs but wont go!

Hello, just bought my first bike. A 94 Vulcan 750 with 22xx miles. It was sitting in a garage for about 7 years without being ridden or started.. I have change the oil and brake lines battery new vance and hines exhaust. Also removed the carb and cleaned the jets. Now the engine is running great but, tried to take my first ride and the bike wont move.. Revs up nice goes into first gear let go of my clutch and it moves about an inch and doesn't go anymore. What could be my issue.. Any help would be great, thanks in advance.

Last edited by tortiz610; 05-18-2014 at 02:04 PM.
tortiz610 is offline
Sponsored Links
Advertisement

post #2 of 13 (permalink) Old 05-18-2014, 02:12 PM
1986 VN750

thtanner's Avatar

Join Date: Nov 2011
Location: Dana Point, CA
Posts: 3,255
iTrader: (8)

Garage
It sounds like your drive shaft splines may be shot? For 2xxx miles that's amazingly bad luck, could have not been lubed from the factory.

Take the rear wheel off, and then the rear final drive. Look where the final drive and the shaft meet. Is it ground down to dust on the final drive? If so, it's shot.

If it DOES end up being that, I do have a good spare I could sell for 85 shipped.

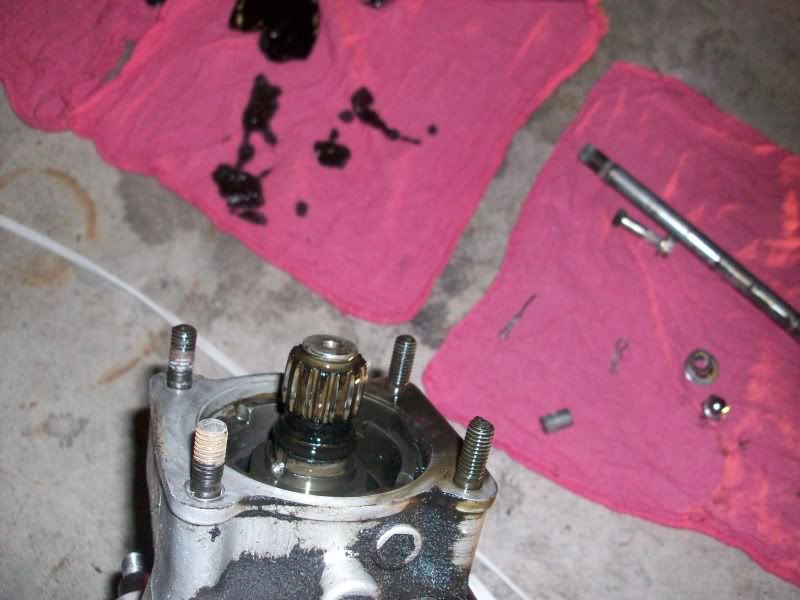

Here is what it SHOULD look like.


1986 Kawasaki Vulcan 750
NGK Iridium Plugs #7803/DPR7EIX-9
Duralast Gold ETX15 AGM Battery
Coastered & Shaved
TOC MCCTs
Metzeler ME880 [110/90-19, 170/80-15]
Balance Dampers Replaced
Tuxedo Mod
Rebuilt Forks w/ Progressive Springs
V&H Cruzers
VN750.com Grill Cover
Meanstreak Seat
Emgo 23-92411 Handlebars
MOSFET FH012AA R/R


1990 Kawasaki Vulcan 750

1998 Honda VFR800 FI

2014 Honda VFR800F

1989 Pontiac Firebird Formula 350

Last edited by thtanner; 05-18-2014 at 02:15 PM.
thtanner is offline
post #3 of 13 (permalink) Old 05-18-2014, 02:44 PM
2014 KLR 650!

Goofyfoot2001's Avatar

Join Date: Jun 2013
Location: Tega Cay, SC
Posts: 3,355
iTrader: (1)

Sounds like clutch plates to me or just not adjusted correctly.

2014 Kawasaki KLR 650
Back to the Kawa World
Goofyfoot2001 is offline

post #4 of 13 (permalink) Old 05-18-2014, 02:53 PM Thread Starter
Junior Member

Join Date: May 2014
Posts: 9
iTrader: (0)

I will look into both. Thanks guys!!
tortiz610 is offline
post #5 of 13 (permalink) Old 05-18-2014, 03:10 PM
1986 VN750

thtanner's Avatar

Join Date: Nov 2011
Location: Dana Point, CA
Posts: 3,255
iTrader: (8)

Garage
Quote:
Originally Posted by Goofyfoot2001 View Post
Sounds like clutch plates to me or just not adjusted correctly.
You're right; it could be as simple as being adjusted improperly.

Would be crazy for either the clutch plates or the final drive to be gone @ 22xx miles.

1986 Kawasaki Vulcan 750
NGK Iridium Plugs #7803/DPR7EIX-9
Duralast Gold ETX15 AGM Battery
Coastered & Shaved
TOC MCCTs
Metzeler ME880 [110/90-19, 170/80-15]
Balance Dampers Replaced
Tuxedo Mod
Rebuilt Forks w/ Progressive Springs
V&H Cruzers
VN750.com Grill Cover
Meanstreak Seat
Emgo 23-92411 Handlebars
MOSFET FH012AA R/R


1990 Kawasaki Vulcan 750

1998 Honda VFR800 FI

2014 Honda VFR800F

1989 Pontiac Firebird Formula 350
thtanner is offline
post #6 of 13 (permalink) Old 05-18-2014, 07:40 PM
Mod

Birdhunter02's Avatar

Join Date: Sep 2012
Location: Dearborn, mi
Posts: 1,014
iTrader: (8)

Check the kick stand switch. May just need a little push in.

2003 1600 Classic
Sold
900 Seat Mod
Iradiun Plugs
V and H Cruzers
Windshield with Lowers
LED Tail Lights
Saddle bags
Chads Floor boards
Highway pegs
Birdhunter02 is offline
post #7 of 13 (permalink) Old 05-18-2014, 08:48 PM
Chasin' the blacktop

Spencer1's Avatar

Join Date: Sep 2012
Location: Maysville GA
Posts: 1,498
iTrader: (0)

Quote:
Originally Posted by thtanner View Post
It sounds like your drive shaft splines may be shot? For 2xxx miles that's amazingly bad luck, could have not been lubed from the factory.

Take the rear wheel off, and then the rear final drive. Look where the final drive and the shaft meet. Is it ground down to dust on the final drive? If so, it's shot.

If it DOES end up being that, I do have a good spare I could sell for 85 shipped.

Here is what it SHOULD look like.

X 2 Anouther unlubed driveshaft bites the dust.

[/SIGPIC][/SIGPIC] The mini-skirt is a very functional article of clothing. With it a woman can run much faster; and because of it she may have too.
North Georgia
Spencer1 is offline
post #8 of 13 (permalink) Old 05-19-2014, 05:59 PM
Senior Member

GloryRider's Avatar

Join Date: Nov 2013
Location: Atlanta, GA
Posts: 277
iTrader: (1)

Have you tried starting to move in other gears?

------------------------------
GloryRider
Atlanta, GA
Current Ride: 1995 Vulcan 88 (1500A9)
Purchased Dec. 2014
approx. 6,800 miles

Previous Bike: 2000 VN750 "Glory"
With homemade stator
Details on stator build here

"Four wheels move the body. Two wheels move the soul"

"You live more in 5 minutes on a bike like this going flat out than some people live in their lifetime." - Burt Munro
GloryRider is offline
post #9 of 13 (permalink) Old 05-19-2014, 06:20 PM Thread Starter
Junior Member

Join Date: May 2014
Posts: 9
iTrader: (0)

Just removed my tire and checked spindles and the are fine.. Nice and lubed up so I know that's not the issue. Next would be to try to adjust the clutch cable! If that doesn't work changing out the plates. Or should I go straight for the plates? Can anyone help with cable adjustment?
tortiz610 is offline
post #10 of 13 (permalink) Old 05-19-2014, 06:49 PM
2014 KLR 650!

Goofyfoot2001's Avatar

Join Date: Jun 2013
Location: Tega Cay, SC
Posts: 3,355
iTrader: (1)

First just try the wheel adjuster at the clutch handle. Turn it till it's all the way in which makes the cable relax and engage more. See if you can switch into first at all and get anywhere with that first. Then you can try the barrel adjuster galf way down the cable.

2014 Kawasaki KLR 650
Back to the Kawa World
Goofyfoot2001 is offline
