post #11 of 71 (permalink) Old 09-07-2012, 04:22 PM Thread Starter
Senior Member

Join Date: Jul 2009
Posts: 686
iTrader: (0)

Quote:
Originally Posted by mkjennison View Post
What setup specifically did you use to keep the basket from turning? Tightening to 98 ft-pounds is a lot of torque to hold back, and I'm not sure how exactly to do this...

Thanks!!
Mark
I used very large channel locks but don't recommend it. If I had it to do over, I'd do what Roach did in Video #25
Advance it to the 1:25 minute mark.
And you're right....98 ft lbs is darn tight
VoIPDoc is offline
Sponsored Links
Advertisement

post #12 of 71 (permalink) Old 09-07-2012, 05:49 PM
Old Fart

Knifemaker's Avatar

Join Date: Jun 2004
Location: Catawissa, MO
Posts: 11,567
iTrader: (4)

Garage
Whatever you use just make sure it's secure and holds the hub in several spots. I've seen enough broken clutch hubs through the years from DIYers to in many cases suggest buying "the special tool"....;

But, just be carefull .....

If You Are Not Sure If I Am Joking or Not....I AM !!Photos:
http://www.flickr.com/photos/knifemaker1954/sets/
Knifemaker is offline
post #13 of 71 (permalink) Old 09-07-2012, 10:36 PM
Senior Member

shark88's Avatar

Join Date: Jan 2008
Location: Central, PA
Posts: 2,484
iTrader: (27)

Garage
Quote:
Originally Posted by Knifemaker View Post
Whatever you use just make sure it's secure and holds the hub in several spots. I've seen enough broken clutch hubs through the years from DIYers to in many cases suggest buying "the special tool"....;

But, just be carefull .....

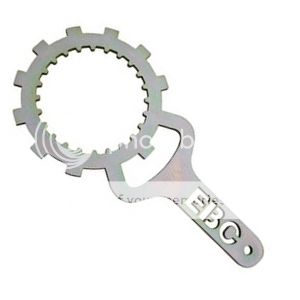

X2 on that, and don't try to put the bolts back in the hub to hold it in place. I tried doing that and bracing between the bolt and snapped one of the mounts right off. Aluminum isn't that forgiving. EBC makes a clutch hub tool that fits our bikes or if you have a set of the metal clutch plates you could probably fab one to work like this one. My cousin had a grabbit tool I borrowed to hold it when I torqued mine back on

"Show me a man who makes no mistakes, and I'll show you a man who doesn't do things." Theodore Roosevelt."

2007 Victory Kingpin
Current projects - 1986 VN750 & 1988 EL250

Last edited by shark88; 09-07-2012 at 10:39 PM.
shark88 is offline

post #14 of 71 (permalink) Old 09-11-2012, 11:11 AM
Junior Member

Join Date: Apr 2010
Location: Newport News Va.
Posts: 4
iTrader: (0)

Did the 1/16 inch drilling mod but after about a year to a year and a half it's back. Not as bad as before. The clutch makes the noise and grabs when starting out from a dead stop cold.

Tim Dawley
NEWPORT NEWS, VIRGINIA
1995 VN750
GREMLIN BELL
K&N AIR FILTERS
R/R RELOCATED
SPLINE LUBED
INSTALLED VOLT METER
CLEANED FUEL TANK CAP (PHANTOM OUT OF GAS)
SADDLE BAGS
LUGGAGE RACK
INSTALLED HINGES ON TRUNK
NATIONAL CYCLE WIND DEFLECTOR
NGK IRIDIUM PLUGS
NGK 7MM YELLOW PLUG WIRES
SHELL ROTELLA T OIL 15W-40
PUROLATOR PURE ONE OIL FILTER (PL14612)
HOLES DRILLED IN CLUTCH INNER HUB
(COFFEE GRINDER NOISE)
REPLACED CLUTCH WITH EBC SRK
COMPLETE CLUTCH KIT
timothy.dawley is offline
post #15 of 71 (permalink) Old 09-12-2012, 09:49 PM
Member

Join Date: Jun 2009
Location: Chicagoland!
Posts: 38
iTrader: (0)

I used one of these: (carefully!!!)

http://www.motionpro.com/motorcycle/partno/08-0008/

and an air wrench to remove the nut. Then spun the nut back on by hand and used a torque wrench to tighten it back up.

At first still had ocassional slight CG after the drill out, but now all is smooth and quiet!!

Great mod!!!

Dean
dino750 is offline
post #16 of 71 (permalink) Old 09-12-2012, 11:59 PM
Old Fart

Knifemaker's Avatar

Join Date: Jun 2004
Location: Catawissa, MO
Posts: 11,567
iTrader: (4)

Garage
Quote:
Originally Posted by timothy.dawley View Post
Did the 1/16 inch drilling mod but after about a year to a year and a half it's back. Not as bad as before. The clutch makes the noise and grabs when starting out from a dead stop cold.
Maybe you need to clean your holes out.......

If You Are Not Sure If I Am Joking or Not....I AM !!Photos:
http://www.flickr.com/photos/knifemaker1954/sets/
Knifemaker is offline
post #17 of 71 (permalink) Old 09-13-2012, 09:19 AM
Senior Member

Join Date: Aug 2010
Location: Daleville, Alabama
Posts: 445
iTrader: (0)

Run some Seafoam in your oil just before you make your next change. That might clean out any gunk that you have in there. Couldn't hurt giving it a try.

MCCT Mod
Pickup Mod
12 Volt Receptacle Mod
Memphis Shades Santa Cruz
Homemade Luggage Rack
NGK Iridium IX Spark Plugs
Harley Sportster Exhausts
Rotating/Flashing Tail Lights
170/80 Michelin Commander II
Saddlemen Highwayman Slant Jumbo Saddlebags
Bought 09/10 12.2k miles - 04/12 33.4k miles
CW-4 is offline
post #18 of 71 (permalink) Old 09-15-2012, 12:10 PM
Junior Member

mkjennison's Avatar

Join Date: Jun 2012
Location: Woodstock, Il
Posts: 8
iTrader: (0)

Thanks guys.... I ended up going with a holder. Can't link because I haven't posted enough. Turns out those large vice-grip clamps are about the same price anyhow, and are made from a hardened metal I couldn't drill through with a titanium bit, haha.

Motion Pro Clutch hub holder on Amazon, $24.

2006 VN750
Tim Parrott Stator
Mosfet R/R
NGK Iridium plugs
Drilled Clutch Basket
TOC rebuilt ACCT springs
Splines lubed
mkjennison is offline
post #19 of 71 (permalink) Old 09-15-2012, 06:41 PM Thread Starter
Senior Member

Join Date: Jul 2009
Posts: 686
iTrader: (0)

Quote:
Originally Posted by timothy.dawley View Post
Did the 1/16 inch drilling mod but after about a year to a year and a half it's back. Not as bad as before. The clutch makes the noise and grabs when starting out from a dead stop cold.
Yeah...to KM's point, I considered the holes might clog so I went with 3/32....not much difference but may help
I'd be interested to know if you're using dino or synthetic oil?

Quote:
Originally Posted by dino750 View Post
I used one of these: (carefully!!!)

http://www.motionpro.com/motorcycle/partno/08-0008/
and an air wrench to remove the nut. Then spun the nut back on by hand and used a torque wrench to tighten it back up.
Dean
Ahhh yes. I did the same....An impact wrench can make life easy.

Quote:
Originally Posted by CW-4 View Post
Run some Seafoam in your oil ..... Couldn't hurt giving it a try.
Great advice
VoIPDoc is offline
post #20 of 71 (permalink) Old 10-23-2012, 06:02 PM
Member

chiller's Avatar

Join Date: Mar 2010
Location: Waynesboro, VA
Posts: 67
iTrader: (0)

I drilled mine...no difference.
chiller is offline
