My tank cleaning diy pics

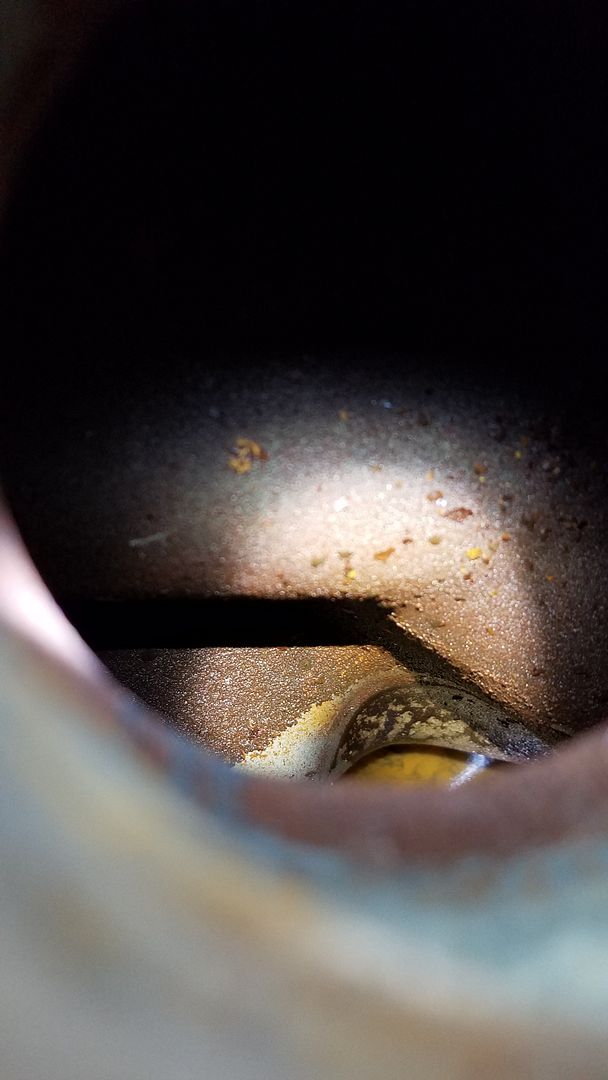

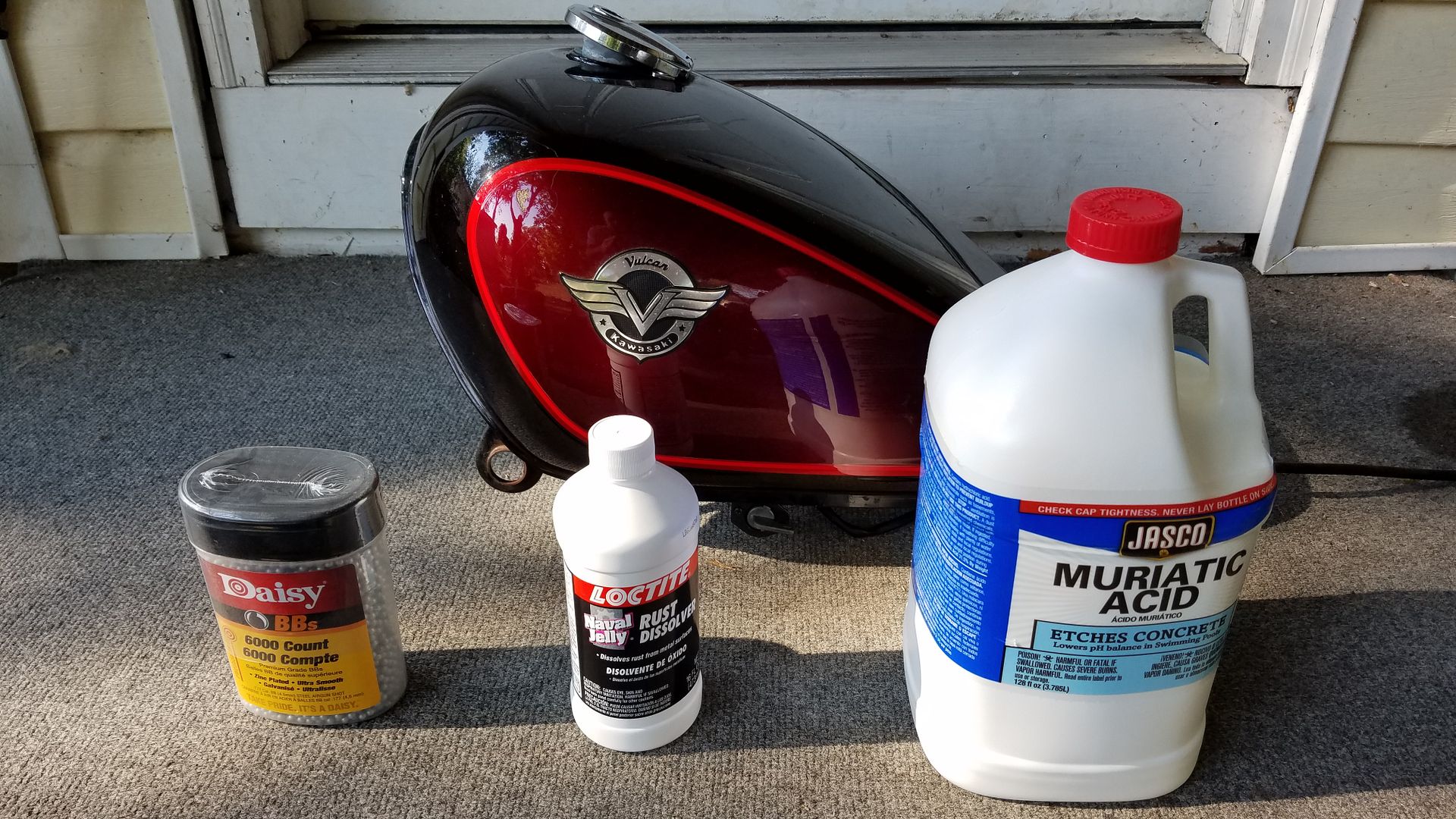

You can get instructions on how to do it in the acid thread sticking to the top of the forum. I wanted to put these pictures out here for people to see what the process is like. Simply do as the thread says and everything will turn out excellent, though I only needed about 5 minutes of shaking the bb's for my tank to be cleaned your results May Vary. it was pretty Rusty but this seems to act very quickly.
















Tada!



Thorn and Gaz73 like this.


1981 KZ750
1988 Vulcan VN750 (red)
2005 Vulcan VN750 (silver)
(2) 1994 Vulcan VN750 (red)

Engineering solutions for the VN750 Community.
One1 is offline
Sponsored Links
Advertisement

post #2 of 6 (permalink) Old 09-09-2016, 02:10 PM
Tinkerer

Gaz73's Avatar

Join Date: Mar 2016
Location: Dark Side of The Moon
Posts: 572
iTrader: (0)

Garage
I'm going to try the electrolysis method on my tank soon... however I'm really impressed with your acid method
One1 likes this.

Man can not live by bread alone... he needs Duct tape & WD40
Gaz73 is offline
post #3 of 6 (permalink) Old 09-09-2016, 02:15 PM Thread Starter
I'm a rider

One1's Avatar

Join Date: May 2014
Location: Signal Mountain, TN
Posts: 946
iTrader: (0)

Garage
I thought it was going to be a lot bigger pain in the butt then it is. it actually went really quickly I was done in about 30 minutes total from start to ready to pour the jelly in which is just your final coat
Gaz73 likes this.


1981 KZ750
1988 Vulcan VN750 (red)
2005 Vulcan VN750 (silver)
(2) 1994 Vulcan VN750 (red)

Engineering solutions for the VN750 Community.
One1 is offline

post #4 of 6 (permalink) Old 09-09-2016, 02:24 PM
Tinkerer

Gaz73's Avatar

Join Date: Mar 2016
Location: Dark Side of The Moon
Posts: 572
iTrader: (0)

Garage
That's a hell of a lot faster than the electrolysis way... think I'll have to check hardware store for the acid tomorrow

Man can not live by bread alone... he needs Duct tape & WD40
Gaz73 is offline
post #5 of 6 (permalink) Old 09-09-2016, 03:39 PM Thread Starter
I'm a rider

One1's Avatar

Join Date: May 2014
Location: Signal Mountain, TN
Posts: 946
iTrader: (0)

Garage

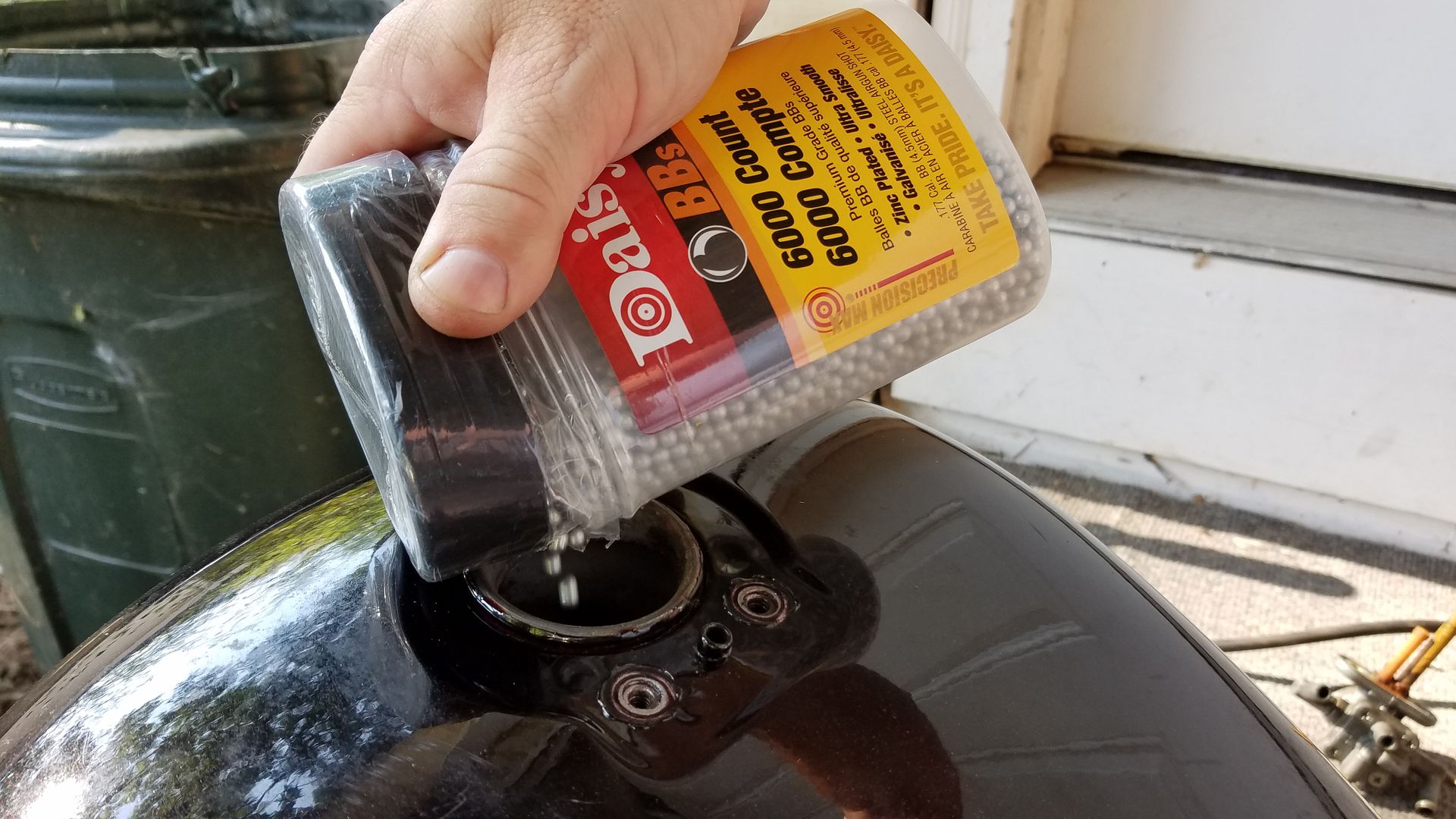

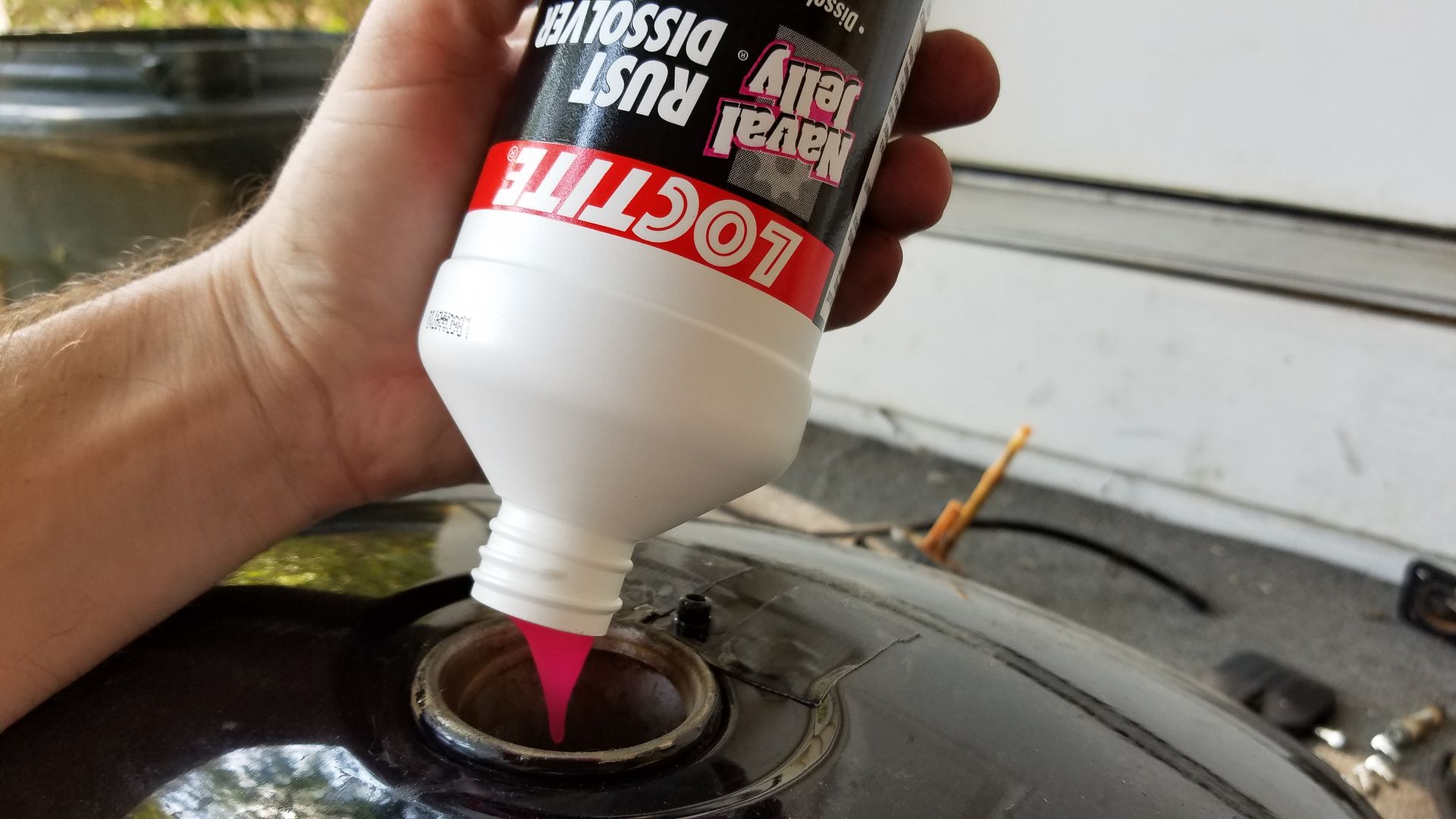

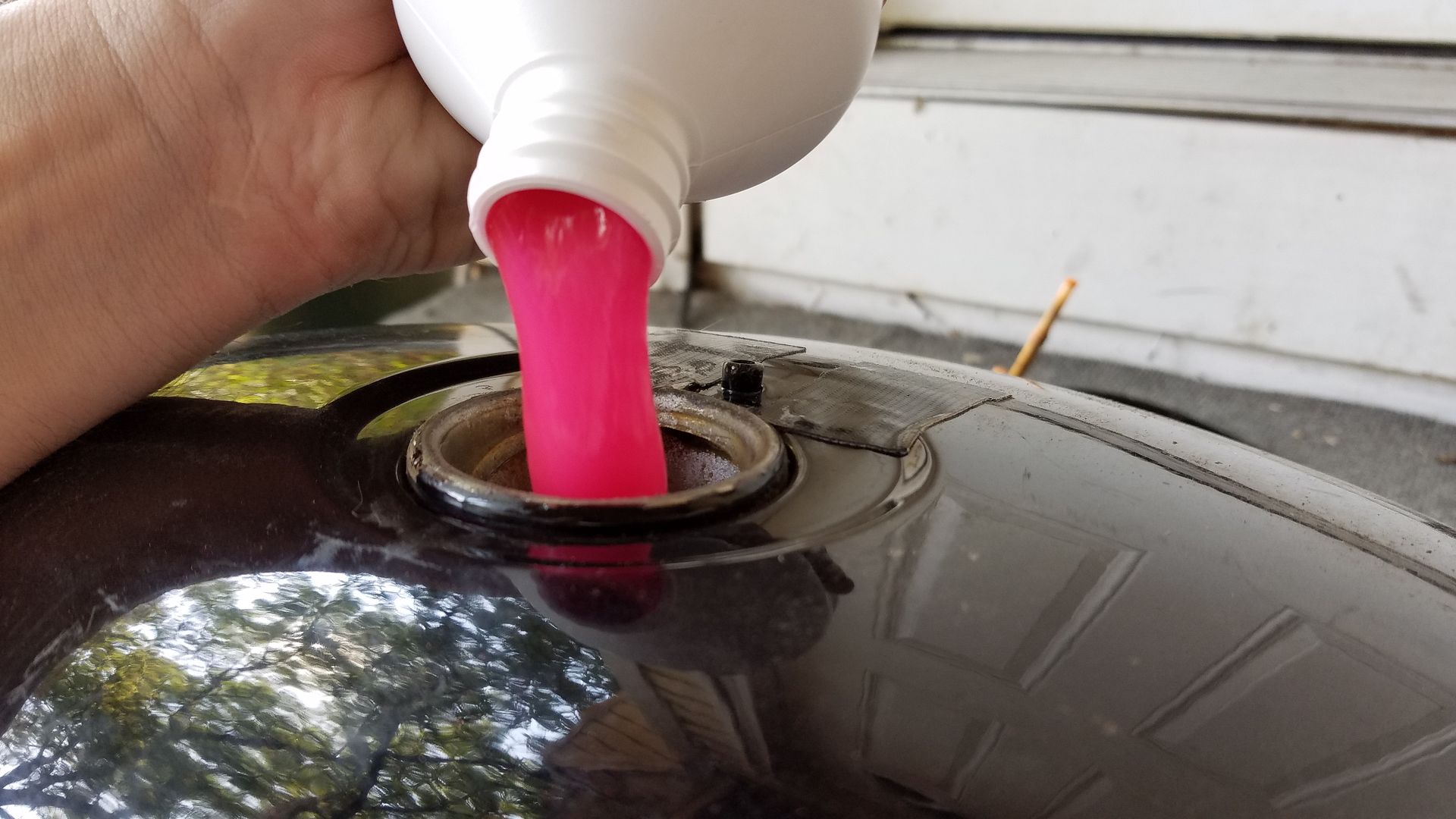

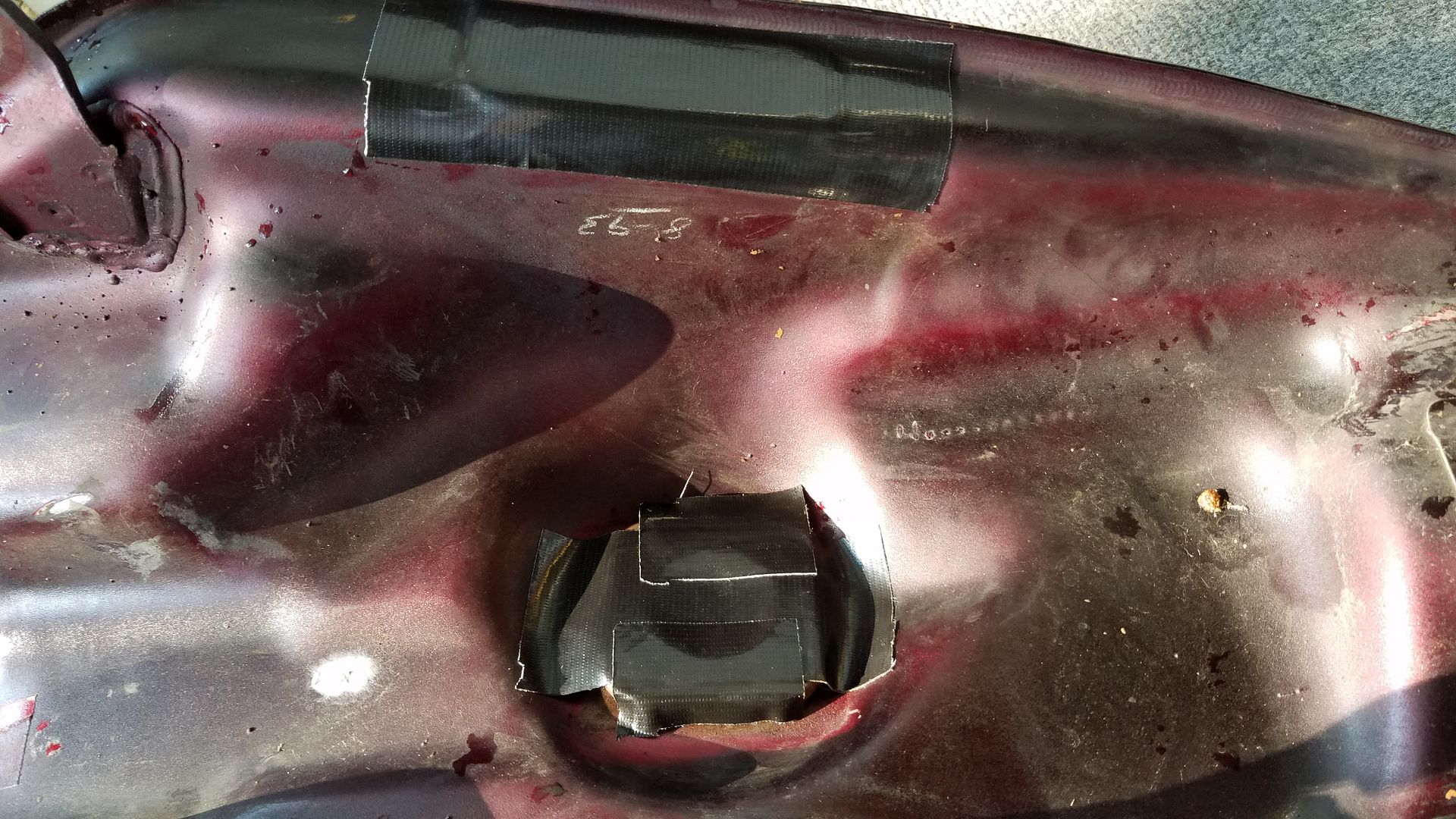

I just pulled all the accessories off of the tank and sprayed it out then taped it up, poured the bb's in and the acid. Shook it for 5 minutes washed it out and poured the jelly in. After that you're home free. Just shake the jelly around for a minute every 20 mins for an hour and wash it out. Total time was about 1 hr 20 mins. It looks like brand new and it was naaazzztttyyy.


1981 KZ750
1988 Vulcan VN750 (red)
2005 Vulcan VN750 (silver)
(2) 1994 Vulcan VN750 (red)

Engineering solutions for the VN750 Community.
One1 is offline
post #6 of 6 (permalink) Old 09-09-2016, 04:53 PM
Expendable newbie

evulcannibal's Avatar

Join Date: Apr 2016
Location: Fresno, CA
Posts: 309
iTrader: (0)

Garage
I used vinegar to clean my tank. It’s an easier method in my opinion and less “dangerous” but it takes way longer. Cover the holes, top off with vinegar and distilled water, leave it overnight, dump it out and rinse it, top off with baking soda and distilled water, let it sit a while, final rinse. It’s more chillax and less shaking.

Don't take my word for it. I'm just a foolish newbie.
When in doubt, just know that I am only joking around.

95 VN750
Top speed is 112 mph at ~7900 rpm
Blacked out engine
Dry rusty splines finally lubed for the first time
R/R relocated to the side of fuse box
Rust removed from tank
Marbled
In line fuel filter, 23-28 micron rating
Voltmeter
Gear indicator
LED turn signals & brake light
16 color LED engine light up & underglow
evulcannibal is offline
