Hard start when hot

Starts like a champ when cold. Pretty much will run the battery down trying to start it when it's got any heat in the motor, doesn't have to be even halfway normal operating temperature.

What all do I need to check to eliminate the won't start when hot issue?


1981 KZ750
1988 Vulcan VN750 (red)
2005 Vulcan VN750 (silver)
(2) 1994 Vulcan VN750 (red)

Engineering solutions for the VN750 Community.
One1 is offline
Sponsored Links
Advertisement

post #2 of 34 (permalink) Old 09-08-2016, 10:54 PM
Senior Member

cglennon's Avatar

Join Date: May 2008
Location: Portland, OR
Posts: 736
iTrader: (0)

Send a message via Skype™ to cglennon
Quote:
Originally Posted by One1 View Post
Starts like a champ when cold. Pretty much will run the battery down trying to start it when it's got any heat in the motor, doesn't have to be even halfway normal operating temperature.

What all do I need to check to eliminate the won't start when hot issue?
1. Make sure that everything is to specs
2. AGM battery - 210 CCA
3. NGK Iridium spark plugs
4. K&N drop in air filters

Starts on first push of starter for almost 9 years now.


Chris Glennon - Portland, OR
cglennon is offline
post #3 of 34 (permalink) Old 09-08-2016, 11:59 PM Thread Starter
I'm a rider

One1's Avatar

Join Date: May 2014
Location: Signal Mountain, TN
Posts: 946
iTrader: (0)

Garage
Great but that's already done and we're talking about my bike so I'm thinking more the EGR system let me get a check list from somebody


1981 KZ750
1988 Vulcan VN750 (red)
2005 Vulcan VN750 (silver)
(2) 1994 Vulcan VN750 (red)

Engineering solutions for the VN750 Community.
One1 is offline

post #4 of 34 (permalink) Old 09-09-2016, 08:27 AM
Super Moderator

Join Date: Feb 2013
Location: SW Florida
Posts: 2,527
iTrader: (5)

if you ride, then let sit for a few (10-15) mins and it starts normally, look into the pickup coil mod. solves many warm/hot start issues

and of course, that listed above too!
kc2dgq and One1 like this.

2005 VN750

Sold 11-27-17
michiganteddybear is offline
post #5 of 34 (permalink) Old 09-09-2016, 08:59 AM
Senior Member

Spockster's Avatar

Join Date: Nov 2012
Location: WV
Posts: 7,302
iTrader: (5)

No throttle. If it's been parked 5-10 min., use the choke. Works on mine. If I open the throttle, backfire and no start every time.
One1 likes this.

2003-21k mi
Shaved w/UniPK92+Stock Jets-TPE/MOSFET-Shinko Tires-AGM batt-bags-chrome-LEDs...more
__________________________________________________ ____________
Repair Manual: http://www.mediafire.com/file/mj7z81..._Catalogue.pdf

Owner's Manual: http://www.mediafire.com/file/nscb5f...ers+Manual.pdf
Spockster is offline
post #6 of 34 (permalink) Old 09-09-2016, 08:26 PM Thread Starter
I'm a rider

One1's Avatar

Join Date: May 2014
Location: Signal Mountain, TN
Posts: 946
iTrader: (0)

Garage
I'm leaning towards the ignition coils since the engine doesn't have to be warmed TOO MUCH before it starts getting harder to start. The coils heat up faster than the engine does so it's possible.


1981 KZ750
1988 Vulcan VN750 (red)
2005 Vulcan VN750 (silver)
(2) 1994 Vulcan VN750 (red)

Engineering solutions for the VN750 Community.
One1 is offline
post #7 of 34 (permalink) Old 09-10-2016, 03:27 PM Thread Starter
I'm a rider

One1's Avatar

Join Date: May 2014
Location: Signal Mountain, TN
Posts: 946
iTrader: (0)

Garage
Well hell, Did the ign coils mod with a relay and fuse and didn't help. Onto other things. Keep the suggestions coming.

Suspecting the petcock could be leaking into the chambers, I turned it off when I got off the bike to see if that could be an issue and it wasn't affected. Still hard to nearly impossible to start when warm.






1981 KZ750
1988 Vulcan VN750 (red)
2005 Vulcan VN750 (silver)
(2) 1994 Vulcan VN750 (red)

Engineering solutions for the VN750 Community.

Last edited by One1; 09-10-2016 at 03:29 PM.
One1 is offline
post #8 of 34 (permalink) Old 09-10-2016, 04:12 PM
Senior Member

Join Date: Nov 2015
Location: Pittsburgh, PA
Posts: 1,215
iTrader: (0)

Garage

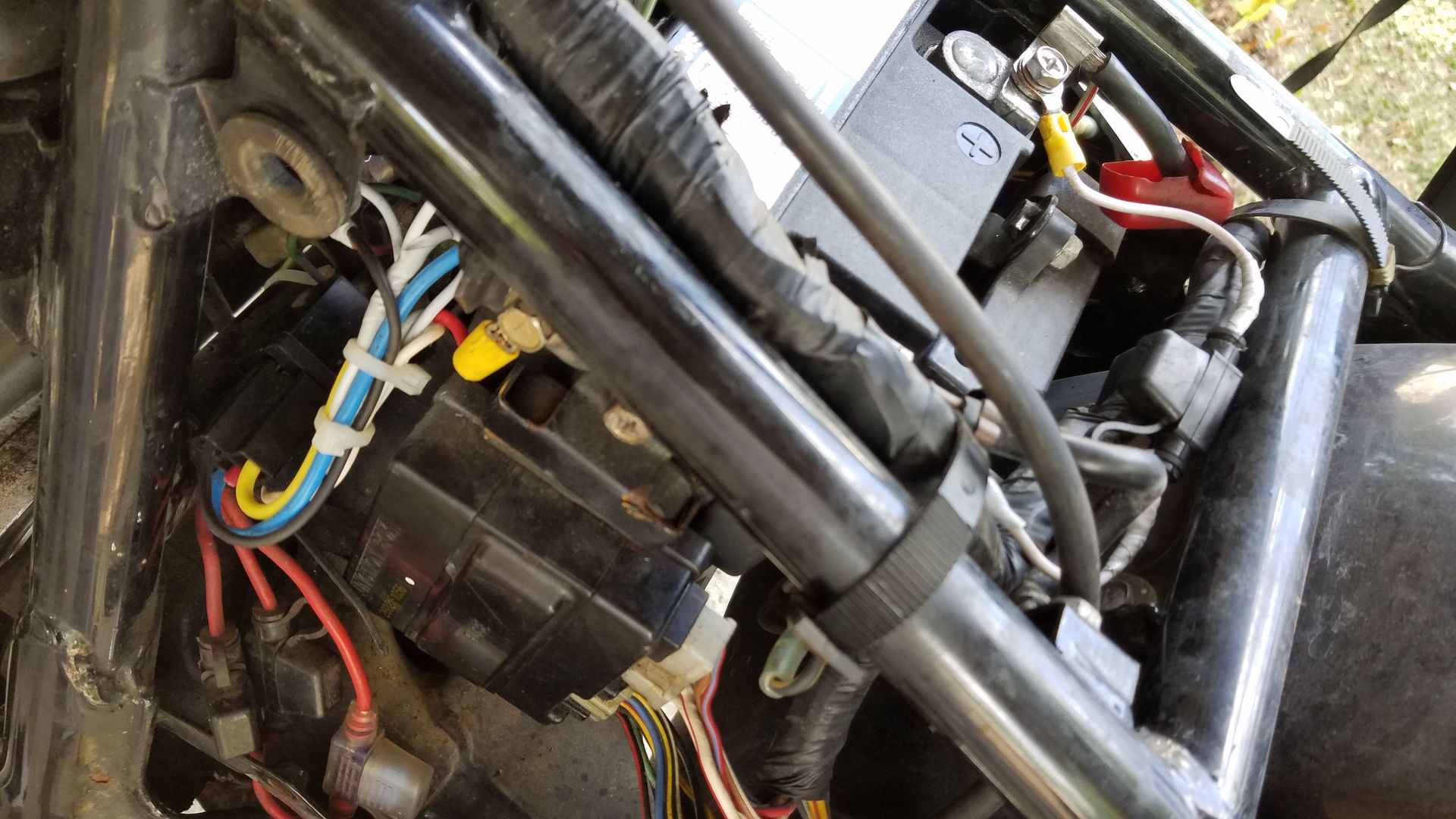

Nice pictures of a clean job.
Have you pulled a plug to check the quality of the spark when hot?
One1 likes this.

1992 US-nonCA * tuxedo mod * r/r relocated

Vulcan slang for newcomers
Service Manual Download
Wiring Diagram + annotations * still undergoing revisions, but still more useful than the generic one. Let me know if you find mistakes or think something additional should be added
Thorn is offline
post #9 of 34 (permalink) Old 09-10-2016, 06:58 PM
Senior Member

Spockster's Avatar

Join Date: Nov 2012
Location: WV
Posts: 7,302
iTrader: (5)

Run it for a bit, then pull the petcock vac off at the carb and see if it's wet. If it happens to be wet, gas in the oil is also a concern.

2003-21k mi
Shaved w/UniPK92+Stock Jets-TPE/MOSFET-Shinko Tires-AGM batt-bags-chrome-LEDs...more
__________________________________________________ ____________
Repair Manual: http://www.mediafire.com/file/mj7z81..._Catalogue.pdf

Owner's Manual: http://www.mediafire.com/file/nscb5f...ers+Manual.pdf
Spockster is offline
post #10 of 34 (permalink) Old 09-10-2016, 07:19 PM Thread Starter
I'm a rider

One1's Avatar

Join Date: May 2014
Location: Signal Mountain, TN
Posts: 946
iTrader: (0)

Garage
Nevermind. The engine just hydrolocked trying to start. It's the floats.




1981 KZ750
1988 Vulcan VN750 (red)
2005 Vulcan VN750 (silver)
(2) 1994 Vulcan VN750 (red)

Engineering solutions for the VN750 Community.
One1 is offline
