where is this leak coming from?

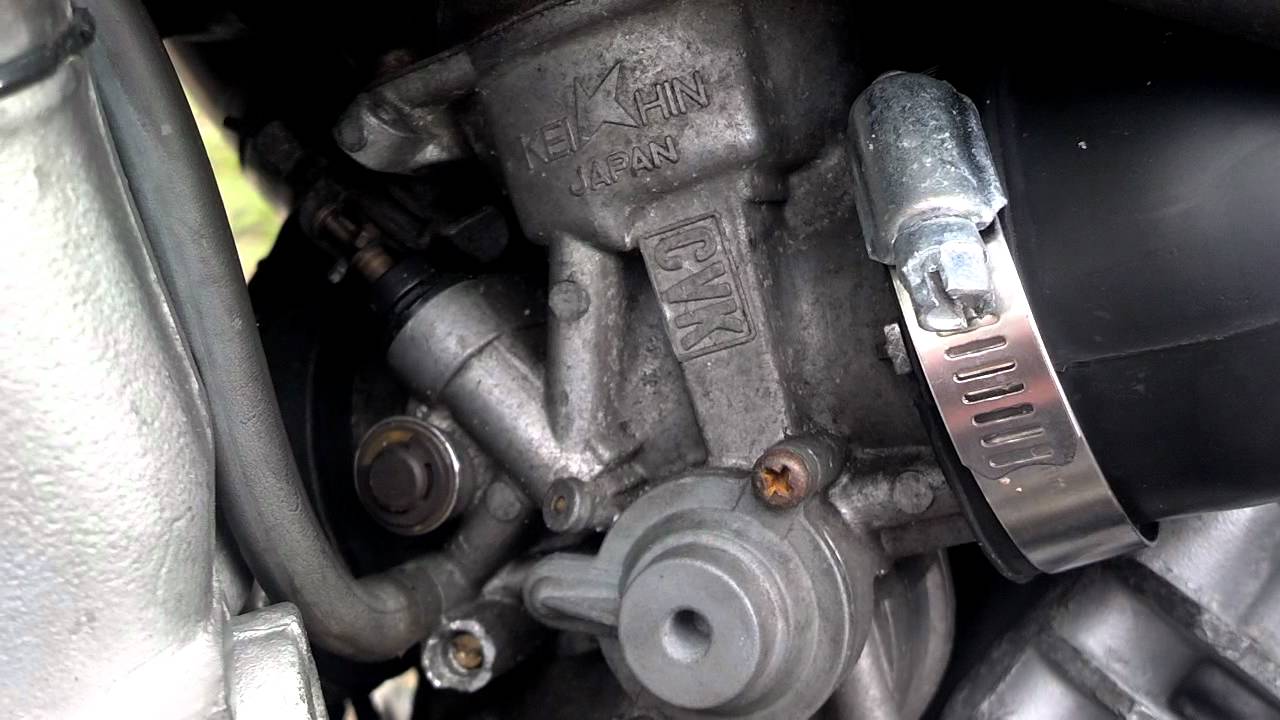

Hey all, I just got myself an 86 vn750 (got tired of killing my back on my gsxr600 sitting in nyc traffic every day). I'm not very good with carbed bikes (I've wrenched my gsxr more than a few times though so I'm not completely new to it), however I cant seem to find any diagrams of what a specific part is on my carb. There is a plunger type thing with a black boot that sits on top of the carb, about 2 inches above the air/fuel screw. It seems that, even if the bike is off, there is a steady drip of gas coming from it. This is only happening on one side. do you guys know what this part is specifically? and also, can this be a result of a clogged carb/needle?


Attached Thumbnails
Click image for larger version

Name:	maxresdefault.jpg
Views:	23
Size:	94.4 KB
ID:	16777
erentil is offline
Sponsored Links
Advertisement

post #2 of 13 (permalink) Old 06-25-2014, 01:31 PM
Member

VampV's Avatar

Join Date: Jun 2011
Location: Colonial Heights VA
Posts: 73
iTrader: (0)

Thats the choke...and it appears to be stuck in that particular pic. The lil v fork and the top of the lil plunger should always be
touching.

"95 FrankenBike 750VN
Jetted/Coastered/Shaved
Chopped/Bobbed
Splines Lubed
Tank Kreemed
Drag Bars w/risers
Instrument cluster customized
Frame powder coated
Engine/exhaust blacked
Seat recovered
VampV is offline
post #3 of 13 (permalink) Old 06-25-2014, 01:53 PM
Super Moderator

Join Date: Feb 2013
Location: SW Florida
Posts: 2,434
iTrader: (5)

correct.

they can stick in just about any position between all the way in (choke off) or all the way out (choke full on).

the seals can leak and are replaceable.

2005 VN750

Sold 11-27-17
michiganteddybear is offline

post #4 of 13 (permalink) Old 06-26-2014, 01:44 PM Thread Starter
Junior Member

Join Date: Jun 2014
Posts: 15
iTrader: (0)

Thank you guys, I will check that out. Is there any particular reason why they stick? Flooded/clogged bowl? Do I just wiggle them up and down to unstick them or should I drain the carb first?
erentil is offline
post #5 of 13 (permalink) Old 06-26-2014, 02:04 PM
Super Moderator

Join Date: Feb 2013
Location: SW Florida
Posts: 2,434
iTrader: (5)

one reason they can stick is varnish/corrosion from fuel..

they can wear also and get cocked in the bore they go into.. that can cause sticking as well (not as likely)

2005 VN750

Sold 11-27-17
michiganteddybear is offline
post #6 of 13 (permalink) Old 06-26-2014, 04:09 PM
Senior Member

Nitrospaz9's Avatar

Join Date: Jul 2013
Location: Saddle Brook, NJ
Posts: 1,067
iTrader: (0)

I'd also change the gaskets on the petcock. I rebuilt my entire carb and was still getting a drip here and there. Turns out the gasket was bad on the PC and it kept leaking and filling up the carb

2007 Kawi ninja-sold
1990 Vulcan 750-sold
2001 Honda Sabre 1100-wrecked then sold
2013 Victory Highball
Ride on wolf
Nitrospaz9 is offline
post #7 of 13 (permalink) Old 06-27-2014, 01:08 PM Thread Starter
Junior Member

Join Date: Jun 2014
Posts: 15
iTrader: (0)

Thanks for the suggestions guys, I wiggled it around and it seems to not be stuck anymore, however, the mystery continues.

Now when I try to start the bike, it just cranks and cranks but wont start. If i move the choke all the way towards me (towards the rear of the bike), the bike will stop cranking completely. Like it will crank once and then silence. Could this be related to the leaking choke or should I just call it a day and pull out the carbs for a cleaning (which I would like to avoid if possible, as the bike ran before this gas leak)?

Thanks again!
erentil is offline
post #8 of 13 (permalink) Old 06-27-2014, 01:15 PM
Banned

Join Date: Jan 2013
Posts: 2,190
iTrader: (0)

Quote:
Originally Posted by erentil View Post
Thanks for the suggestions guys, I wiggled it around and it seems to not be stuck anymore, however, the mystery continues.

Now when I try to start the bike, it just cranks and cranks but wont start. If i move the choke all the way towards me (towards the rear of the bike), the bike will stop cranking completely. Like it will crank once and then silence. Could this be related to the leaking choke or should I just call it a day and pull out the carbs for a cleaning (which I would like to avoid if possible, as the bike ran before this gas leak)?

Thanks again!
That sounds like a battery/cranking issue.
wmsonta is offline
post #9 of 13 (permalink) Old 06-27-2014, 08:51 PM Thread Starter
Junior Member

Join Date: Jun 2014
Posts: 15
iTrader: (0)

Another update: I've found that after doing the back blow method described by Wolfie, when I start letting the carbs drain via drain screws, the gas just keeps flowing and flowing no matter what position the petcock is on. My guess is that I'm flooding the carb/cylinder and that's why the bike isn't starting. Is this the result of a stuck float or needle?
erentil is offline
post #10 of 13 (permalink) Old 06-27-2014, 09:07 PM
Senior Member

Nitrospaz9's Avatar

Join Date: Jul 2013
Location: Saddle Brook, NJ
Posts: 1,067
iTrader: (0)

Most likely. Stuck needle in the open position I think just let's it flow. Can try a lot of sea foam and see if it'll clean up the carbs or else ya gotta take the carbs out. New needles are like $10-12

2007 Kawi ninja-sold
1990 Vulcan 750-sold
2001 Honda Sabre 1100-wrecked then sold
2013 Victory Highball
Ride on wolf
