crank case vent??

hello all. i am in the process of coastering my bike and have a question about the crank vent. where the heck is it?? i looked all over the front cylinder and nothing there. no hose/fitting or anything. i know that there should be one but WTF, nothing. could someone post a pic of the fitting/hose location please. i dont want to seal up my motor and let it self vent. thanks, hoodrat
hoodrat is offline
Sponsored Links
Advertisement

post #2 of 10 (permalink) Old 09-25-2007, 12:30 AM
Senior Member

oglejust's Avatar

Join Date: Aug 2007
Location: Paris IL
Posts: 572
iTrader: (2)

Send a message via AIM to oglejust Send a message via MSN to oglejust Send a message via Yahoo to oglejust
the crankcase vent is dun when u do the ear shave mod... not the coastering mod

1990 Kawasaki Vulcan 750

.... slightly modified
oglejust is offline
post #3 of 10 (permalink) Old 09-25-2007, 12:32 AM
Senior Member

oglejust's Avatar

Join Date: Aug 2007
Location: Paris IL
Posts: 572
iTrader: (2)

Send a message via AIM to oglejust Send a message via MSN to oglejust Send a message via Yahoo to oglejust
here is the crankcase vent hose
http://i35.photobucket.com/albums/d1...r/000_0034.jpg

thanx to niterider for the pic

1990 Kawasaki Vulcan 750

.... slightly modified
oglejust is offline

post #4 of 10 (permalink) Old 09-25-2007, 01:16 AM Thread Starter

Join Date: Oct 2006
Posts: 13
iTrader: (0)

my bike came with pods air filters from the previous owner but no smog plumbing. just open reed valves, so i want to coaster them. that pic is ok but still cant tell where it enters the cylinder. if i am looking at the front jug there is a boss(?) just to the right of the exhaust. could that be it? seems to be plugged. thanks, hr
hoodrat is offline
post #5 of 10 (permalink) Old 09-25-2007, 06:27 AM
Members who have donated towards server costs

Crobins365's Avatar

Join Date: Jul 2006
Location: Kennett Square, PA
Posts: 3,505
iTrader: (48)

I think this may be what you're referring to - it's a hose linking the airbox to the front cylinder. It's only sorta part of your smog plumbing, in the sense that there's a hose from the airbox to the emissions canister, and hoses from the canister to the reed valve covers. So, fresh air to the combustion chamber. Jon Landau (93VN750) did both the ear shave and coastering - you might post him a pm and see how he dealt with that particular vent.

C

Last edited by Crobins365; 10-05-2008 at 07:51 PM.
Crobins365 is offline
post #6 of 10 (permalink) Old 09-25-2007, 08:29 AM
Giggity!

kanuck69's Avatar

Join Date: Jun 2007
Location: Ohio, Zanesville
Posts: 4,307
iTrader: (24)

Garage
I new these pics off ebay would come in handy. Do you see the black hose to the right of the manifold. Thats it. This is a front on view.
kanuck69 is offline
post #7 of 10 (permalink) Old 09-25-2007, 08:53 AM
Members who have donated towards server costs

Crobins365's Avatar

Join Date: Jul 2006
Location: Kennett Square, PA
Posts: 3,505
iTrader: (48)

That's a good pic, Jason. Hoodrat, transfer that black hose coming up to the right of the manifold to my pic, where the hose is coming up (from the right of the manifold) to the airbox. I'm guessing in Oglejust's pic, the hose is now hooked up to a pod?
Crobins365 is offline
post #8 of 10 (permalink) Old 09-25-2007, 06:25 PM Thread Starter

Join Date: Oct 2006
Posts: 13
iTrader: (0)

thats the one. i shot some carb cleaner in the front cylinder to clean off the gunk and thats what is there BUT with a small brass cap in it. i assume the old owner did that. i will run a hose and small breather on it. thanks for all the help. hoodrat
hoodrat is offline
post #9 of 10 (permalink) Old 09-25-2007, 06:34 PM
Old Truck Junkie

niterider's Avatar

Join Date: Jul 2007
Location: Roby Texas
Posts: 4,130
iTrader: (15)

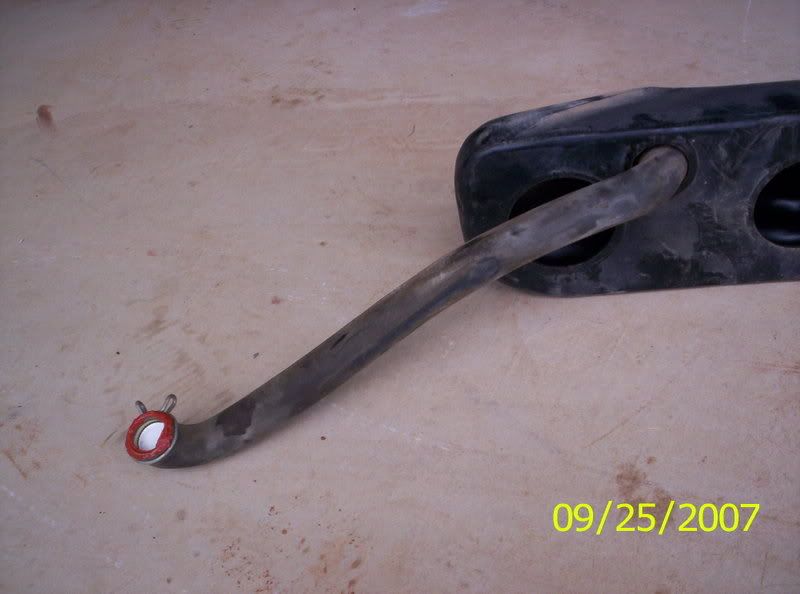

In this pic I am trying to show the hose that goes to the air box from the valve under the seat. Remove the valve plug hose.

Here the small hose that activates the air valve with intake manifold vaccuum has to be removed and the hole to carb has to be plugged.
I hope this helps you.

02 honda sabre 1100
niterider is offline
post #10 of 10 (permalink) Old 09-26-2007, 12:33 AM Thread Starter

Join Date: Oct 2006
Posts: 13
iTrader: (0)

thanks. i will run a hose and breather/filter of some kind and that should take care of that.
