Gas Cap and POOGS

Got the common gas cap problem yesterday, bike would bog down. Rode the bike with the gas cap open and problem resolved so I cleaned the gas cap and no more problems. I took pics to help anyone with a similar problem.

Pic 1: Gas cap with cover removed. Under the large brass ring are 5 little springs. I left them in place but don't loose them!



Pic 2: Brass Cover removed. You can see the air piston (orange piece)



Pic 3: The key tumbler cover removed, remember its orientation with the tumbler.


Last edited by gaillarry; 07-29-2012 at 08:17 AM.
gaillarry is offline
Sponsored Links
Advertisement

post #2 of 46 (permalink) Old 07-29-2012, 07:20 AM Thread Starter
Junior Member

Join Date: May 2012
Posts: 24
iTrader: (0)

Pic 4: Orange valve removed. I used a pair of tweezers to gently lift it out of the hole. I found this was the problem it as sticking in the hole, preventing it from moving up/down. Using a Q-Tip I cleaned the piston and hole with brake cleaner.



Pic 5: There's a gasket and diaphragm sitting in the hole, again gently remove them.





Pic 6: This is the air channel between the cylinder and cap vent. I used a can of compressed air to blow it out.


Last edited by gaillarry; 07-29-2012 at 07:37 AM.
gaillarry is offline
post #3 of 46 (permalink) Old 07-29-2012, 07:25 AM Thread Starter
Junior Member

Join Date: May 2012
Posts: 24
iTrader: (0)

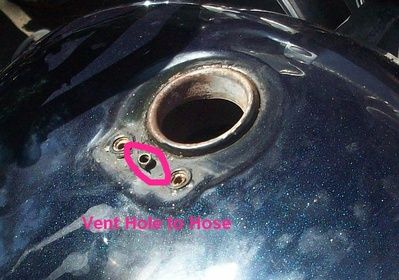

You can now put everything back together. Also check the gas tank vent. I used a compressor to blow out the vent hole in the tank. On the underside of the tank is a rubber vent line running to the rear wheel. Make sure the tank vent and rubber line are clear.

gaillarry is offline

post #4 of 46 (permalink) Old 07-29-2012, 10:30 AM
Senior Member

Okiebezer's Avatar

Join Date: Apr 2012
Location: OKC
Posts: 1,011
iTrader: (2)

Thanks

Great breakdown of this task. That's what I love about this forum! So much knowledge and just a few clicks away.
Okiebezer is offline
post #5 of 46 (permalink) Old 07-29-2012, 11:14 AM
Senior Member

kc2dgq's Avatar

Join Date: May 2010
Location: New Jersey
Posts: 3,350
iTrader: (13)

Garage
Nice job on the write up!
Photos are always a great addition to the instructions...good work!
kc2dgq is offline
post #6 of 46 (permalink) Old 07-29-2012, 12:06 PM
Banned

Join Date: Jun 2010
Location: Simpsonville, SC
Posts: 1,620
iTrader: (8)

Excellent work...
So who's in charge of collecting, categorizing, and maintaining all the 'good' information?
Is anybody actively working on the Verses?
dariv is offline
post #7 of 46 (permalink) Old 07-29-2012, 12:19 PM
Prowling Tiger

blazblu82's Avatar

Join Date: Apr 2012
Posts: 2,048
iTrader: (4)

Quote:
Originally Posted by dariv View Post
Excellent work...
So who's in charge of collecting, categorizing, and maintaining all the 'good' information?
Is anybody actively working on the Verses?
I feel the same way. All this info and it eventually gets lost in the forums. I think I read somewhere that the guys running this site manage other sites and don't do much moderation here. Would be awesome if they assigned some folks here to help moderate and organize the info better.

Peace.

I only understand what I don't understand.
blazblu82 is offline
post #8 of 46 (permalink) Old 07-29-2012, 12:51 PM
Banned

Join Date: Jun 2010
Location: Simpsonville, SC
Posts: 1,620
iTrader: (8)

Quote:
Originally Posted by blazblu82 View Post
I feel the same way. All this info and it eventually gets lost in the forums. I think I read somewhere that the guys running this site manage other sites and don't do much moderation here. Would be awesome if they assigned some folks here to help moderate and organize the info better.

Peace.
Seems we may have to 'elect' a member ourselves....
dariv is offline
post #9 of 46 (permalink) Old 07-29-2012, 01:15 PM
Prowling Tiger

blazblu82's Avatar

Join Date: Apr 2012
Posts: 2,048
iTrader: (4)

Quote:
Originally Posted by dariv View Post
Seems we may have to 'elect' a member ourselves....
On a positive note, this write up is awesome! My bike is starting the POOGs symptoms and now I know what to do. Thanks for the write up!

I only understand what I don't understand.
blazblu82 is offline
post #10 of 46 (permalink) Old 07-29-2012, 10:35 PM
Linkmeister Supreme

OlHossCanada's Avatar

Join Date: Aug 2008
Location: Lethbridge, Alberta, Canada
Posts: 7,960
iTrader: (8)

I just PM`d our remaining moderator, Dianna, and asked her to sticky this thread so it will stay at the top of the Carbs and Fuel tech forum table of contents.

This is the best we can do because the Vulcan Verses are closed to additions.

BTW gaillarry, thanks for the excellent write-up and photos documenting this procedure. I will be refering to it in the near future as I need to check and clean my cap and vent.

cglennon already has a sticky thread on this subject, so I am going to cross reference them to each other.
https://www.vn750.com/forum/showthread.php?t=17572

He has more text explaining what the theory behind the process is.
gaillary has more pictures to help visualize exactly what the parts look like that we are working on.
I hope this helps someone besides just me!

Gordon

1991 VN 750 -"Cosmic Lady" or "Bad Girl"?
Purchased May 16, 2008
Approx.19,300km (12,000 miles)

H-D windshield
Relocated R/R
MF-AGM battery
Fiamm Freeway Blaster horns
F&S luggage rack and engine guard
Kury Offset Hiway pegs
July 13, 2016, Riding on the DARKSIDE now, Classic Radial 165/80-15


TOP TEN THINGS A NEW RIDER/OWNER SHOULD DO. Click on link.
https://www.vn750.com/forum/11-vn750-general-discussion/9127-top-ten-items-you-would-suggest-new-owner-do-his-new-ride.html

Last edited by OlHossCanada; 07-29-2012 at 10:47 PM.
OlHossCanada is offline
