Question What's the best way to clean & rebuild carbs?

So my bike sat for almost 2 years. It fired up, but fuel was pouring out the carb overflow/vent line into the right ear. Thinking it was a stuck float, I tried all the tricks on these forums, but I eventually had to pull the carbs and want to do a full cleaning and rebuild.

Besides the obvious carb cleaner on the parts, what other things can I do?
I've read about boiling the carbs in distilled water, lemon juice, Simple Green, detergent, etc. What parts are NOT safe to boil? I'm assuming everything plastic or rubber that is removable should be removed?
My carbs are definitely in need of a cleaning, but I did not see a ton of gunk.

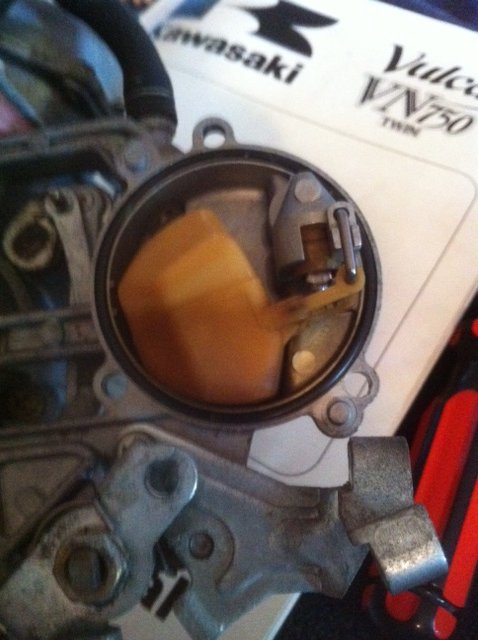

My floats are discolored (see pic at bottom), but I think that's cuz half of the float was sitting in gas for almost 2 years. If I submerge the float in water and don't see any bubbles and it floats on top, they should be fine, correct?
What about the float needle? If it looks clean, is it fine?

I'm also doing an Ear Shave, so I'm replacing the jets, so no need to worry about them being gummed up.

One more thing...do I have to sync the carbs after doing all this? I read some threads about being able to make your own sync tool, but no one posted a link for it, and the "Search this Forum" function doesn't really bring in exact results.

Thanks for all and any advice/tips.

1993 VN750 stock
knicol is offline
Sponsored Links
Advertisement

post #2 of 16 (permalink) Old 07-19-2011, 12:26 AM
Member

Join Date: May 2011
Posts: 57
iTrader: (0)

I use Berryman's B12, carb cleaner, a gun cleaning brush, 18ga stranded copper wire, and a torch tip cleaner, and a compressor.....

Sometimes I think its just easier to take it to a shop just to keep the hassle off my shoulders. They wil clean, sync, test the float level, and sometimes bench test the carbs.... But, i always end up doing it myself
biggestjd is offline
post #3 of 16 (permalink) Old 07-19-2011, 12:35 AM
Member

Join Date: May 2011
Posts: 57
iTrader: (0)

[QUOTE=knicol;182034]
What parts are NOT safe to boil? I wouldnt boil anything
I'm assuming everything plastic or rubber that is removable should be removed?replace all o-rings and any dry rotted plastic parts
My carbs are definitely in need of a cleaning, but I did not see a
ton of gunk.Thats a good thing

My floats are discolored (see pic at bottom), but I think that's cuz half of the float was sitting in gas for almost 2 years. If I submerge the float in water and don't see any bubbles and it floats on top, they should be fine, correct?Your correct, theres no holes in the float.... discoloring comes from gas on the brass
What about the float needle? If it looks clean, is it fine?clean it with a scotch brite pad, the tip is usually what gets the dirtiest

I'm also doing an Ear Shave, so I'm replacing the jets, so no need to worry about them being gummed up.I would still clean them and put them back on the bike til you get your parts. Taking the carbs out gets super easy after you have done it a couple times

One more thing...do I have to sync the carbs after doing all this? Theres one on here somewhere... maybe someone else could help you on the link


Hope this helps... Clymers has an awesome manual for this whole procedure
biggestjd is offline

post #4 of 16 (permalink) Old 07-19-2011, 12:42 AM
Nateloggg

Join Date: Sep 2009
Location: Vancouver, Washington
Posts: 13
iTrader: (0)

Go to youtube and search for "manometer". When you see it, you will wonder why you didn't think of it. SImple
nateloggg is offline
post #5 of 16 (permalink) Old 07-19-2011, 01:08 AM
Junior Member

cjcoburn's Avatar

Join Date: Jul 2005
Location: Arvada, CO, US
Posts: 29
iTrader: (0)

I recently have found myself wanting to get into the DIY-carb-synch game, too. I plan on giving this one a try... http://moto.zoic.org/r100gs/redneck.html. Of course just follow their instructions for building it. Then one tube to each carb (of course) and synch away.

I plan on turning my petcock to PRI (as opposed to RUN or RES) if the bowls run dry while synching.

Best Regards,
Chris

Arvada, CO
VROC No. 7348

1986 VN 750 Ebony

Last edited by cjcoburn; 07-19-2011 at 01:16 AM.
cjcoburn is offline
post #6 of 16 (permalink) Old 07-19-2011, 12:42 PM Thread Starter
Member

Join Date: Apr 2011
Location: San Clemente, CA
Posts: 40
iTrader: (0)

Quote:
Originally Posted by biggestjd View Post
I use Berryman's B12, carb cleaner, a gun cleaning brush, 18ga stranded copper wire, and a torch tip cleaner, and a compressor.....

Sometimes I think its just easier to take it to a shop just to keep the hassle off my shoulders. They wil clean, sync, test the float level, and sometimes bench test the carbs.... But, i always end up doing it myself
Do you soak any parts in the B12, or do you just spray on, clean with the brush, and dry with the compressor?
What is the 18Ga. wire for?
I'm assuming a torch tip cleaner is used for the Needle? Are those available at a Lowe's or Home Depot?

Thanks for the info. I really want to clean/rebuild these myself, but I've read SO SO many different methods of cleaning, soaking, boiling, ultra sonic, etc...I guess I'll just start cleaning with simple carb cleaner, and go from there.

1993 VN750 stock
knicol is offline
post #7 of 16 (permalink) Old 07-19-2011, 01:47 PM
Members who have donated towards server costs

Crobins365's Avatar

Join Date: Jul 2006
Location: Kennett Square, PA
Posts: 3,505
iTrader: (48)

I just use parts cleaner (a big bucket o' acetone) from Napa or similar, but try to get one with a basket. Usually I'll soak everything (minus pastic and rubber) overnight, hose it off the next day, and dry everything thoroughly with an air compressor (just hang on tightly - the parts are small and the compressor can have its way with them!). Ditto for the jets - put 'em in the basket to soak, use the compressor to blow dry. You should be able to see through all the holes when you're done.

You'll likely need to replace the following, just because they tend to be in bad shape when pulling apart the carbs:

1. The three bolts on the back of each carb that hold the float bowl to the throttle body (you can get reasonable repalcements at Lowe's or HD).
2. Teeny-tiny cotter pins to reconnect the linkages on the throttle body.
3. Possibly the small bolts that hold the covers onto each slide diaphragm.
4. As noted, likely the float bowl gaskets.

There's a pile of pictures under my user name from a set of disgusting carbs I cleaned a couple of years ago. Hopefully those can help.

Here's a link to the manometer: http://www.powerchutes.com/manometer.asp

C
Crobins365 is offline
post #8 of 16 (permalink) Old 07-19-2011, 02:35 PM
Member

Join Date: May 2011
Posts: 57
iTrader: (0)

Quote:
Originally Posted by knicol View Post
Do you soak any parts in the B12, or do you just spray on, clean with the brush, and dry with the compressor?
If youre patient enough you can soak overnight, if not you dont necessarily have to. Parts cleaner fluid works awesome... I use NAFTA but its hard to get a hold of.

What is the 18Ga. wire for?those small holes
I'm assuming a torch tip cleaner is used for the Needle? reeming out jet holes and such
Are those available at a Lowe's or Home Depot?I get em from welding shops, I have never looked for em at Home Depot but they do have some welding supplies so they might.

Thanks for the info. I really want to clean/rebuild these myself, but I've read SO SO many different methods of cleaning, soaking, boiling, ultra sonic, etc...I guess I'll just start cleaning with simple carb cleaner, and go from there.
Theres a guy on the forum somewhere that will sonic clean your carbs for $160, hes out of Illinois or something like that... I ran across his number searching.
biggestjd is offline
post #9 of 16 (permalink) Old 07-19-2011, 02:46 PM
If only it had 6th gear..

DavesVulster's Avatar

Join Date: Jul 2011
Location: North of Boston
Posts: 1,100
iTrader: (1)

[QUOTE=Crobins365;182098]
There's a pile of pictures under my user name from a set of disgusting carbs I cleaned a couple of years ago. Hopefully those can help.

Yeah those pictures are a huge help. I think I'll need to crack my folat bowls if the cleaner doesn't fix my issue. Thanks for posting them!
DavesVulster is offline
post #10 of 16 (permalink) Old 07-19-2011, 03:01 PM
Linkmeister Supreme

OlHossCanada's Avatar

Join Date: Aug 2008
Location: Lethbridge, Alberta, Canada
Posts: 7,960
iTrader: (8)

Link to Crobins albums for carbs and building a manometer, etc.
https://www.vn750.com/photopost/showg...puser=962&sl=c

There is an outfit called "Carbworx" or some such, that has received high praise for their work too. Not sure if he is in IL or on the east coast.

Gordon

1991 VN 750 -"Cosmic Lady" or "Bad Girl"?
Purchased May 16, 2008
Approx.19,300km (12,000 miles)

H-D windshield
Relocated R/R
MF-AGM battery
Fiamm Freeway Blaster horns
F&S luggage rack and engine guard
Kury Offset Hiway pegs
July 13, 2016, Riding on the DARKSIDE now, Classic Radial 165/80-15


TOP TEN THINGS A NEW RIDER/OWNER SHOULD DO. Click on link.
https://www.vn750.com/forum/11-vn750-general-discussion/9127-top-ten-items-you-would-suggest-new-owner-do-his-new-ride.html
OlHossCanada is offline
