Need help hooking up gas tank lines

Got an idea of which line is which, but there is one that i dont know where it goes... the one labeled "middle of the petcock" is 2 lines going into a 2-to-1 brass barb. Please take a look at the picture and let me know what i should do.
Thanks.
Attached Thumbnails
Click image for larger version

Name:	tank2.jpg
Views:	111
Size:	46.0 KB
ID:	3856
six6six is offline
Sponsored Links
Advertisement

post #2 of 11 (permalink) Old 06-23-2011, 08:43 PM
Senior Member

Stones750's Avatar

Join Date: Jun 2011
Location: Littleton, CO
Posts: 223
iTrader: (0)

That is the "t" for your carb vents and the hose that attaches there is the one that ran to your right ear or air cleaner. Your two gas lines are right and the short hose with all the ????? is the line to the middle connection on the petcock It sticks straight down. (petcock is on bottom left side of fuel tank)

86 Vn750
Coastered
De-Goated
Ears shaved
"Custom Pipes"
"Custom Seat"
Apes
Stator Mod
Malteese led Turn Signals (Rear)
Paid 750.00$ for her in 2005 w/ 9k
Currently @ 23k and counting

Last edited by Stones750; 06-23-2011 at 08:45 PM.
Stones750 is offline
post #3 of 11 (permalink) Old 06-23-2011, 09:46 PM Thread Starter
Member

six6six's Avatar

Join Date: Jun 2011
Location: Plainfield, IL
Posts: 35
iTrader: (4)

Can someone post a picture of where the hose coming from the barb would go? I checked my air cleaner boxes and intake tubes and cant find anywhere for a hose to go....
six6six is offline

post #4 of 11 (permalink) Old 06-23-2011, 10:22 PM
Linkmeister Supreme

OlHossCanada's Avatar

Join Date: Aug 2008
Location: Lethbridge, Alberta, Canada
Posts: 7,960
iTrader: (8)

Quote:
Originally Posted by six6six View Post
Can someone post a picture of where the hose coming from the barb would go? I checked my air cleaner boxes and intake tubes and cant find anywhere for a hose to go....
Look on the back of the air filter housing in the depression with the square air intake hole.

(Edit for clarity) There are two 1/2" diameter black plastic cylinders molded in as an integral part of the housing.

They are 1 1/2" long, with a slot about an 1/8" wide running the length of the cylinder. (one above and one below the square hole, on the circumference of the housing).

Take the end of the vent hose that fits into the slotted cylinder and cut it off at a 45* angle, with the cut facing the slot. This prevents plugging the hole if the hose gets pushed to the bottom of the cylinder, and leaves it vented to the atmosphere.

Gordon

1991 VN 750 -"Cosmic Lady" or "Bad Girl"?
Purchased May 16, 2008
Approx.19,300km (12,000 miles)

H-D windshield
Relocated R/R
MF-AGM battery
Fiamm Freeway Blaster horns
F&S luggage rack and engine guard
Kury Offset Hiway pegs
July 13, 2016, Riding on the DARKSIDE now, Classic Radial 165/80-15


TOP TEN THINGS A NEW RIDER/OWNER SHOULD DO. Click on link.
https://www.vn750.com/forum/11-vn750-general-discussion/9127-top-ten-items-you-would-suggest-new-owner-do-his-new-ride.html

Last edited by OlHossCanada; 06-24-2011 at 02:57 PM. Reason: clarity of sentence
OlHossCanada is offline
post #5 of 11 (permalink) Old 06-24-2011, 11:46 AM Thread Starter
Member

six6six's Avatar

Join Date: Jun 2011
Location: Plainfield, IL
Posts: 35
iTrader: (4)

Are you talking about the slots on the back of the air box?? A picture would really help...
six6six is offline
post #6 of 11 (permalink) Old 06-24-2011, 12:23 PM Thread Starter
Member

six6six's Avatar

Join Date: Jun 2011
Location: Plainfield, IL
Posts: 35
iTrader: (4)

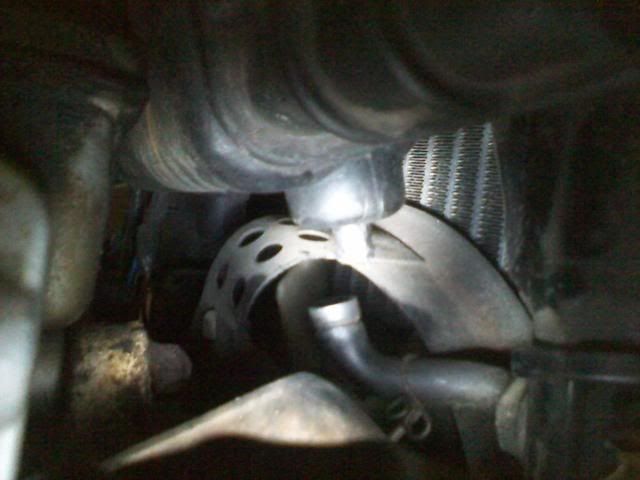

Is this it?

six6six is offline
post #7 of 11 (permalink) Old 06-24-2011, 01:11 PM
Senior Member

Stones750's Avatar

Join Date: Jun 2011
Location: Littleton, CO
Posts: 223
iTrader: (0)

No that little hose should connect to the little tip right above it, that is a vent from the air box, the hole he is referring to I cant take a picture of because the air filters are removed from my bike. If you do a google image search for "vn750 air cleaner carb vent" the 4th pic shows the round hole above the square on the back of the air cleaner. Theres two round holes one above the square and one below you want to put the hose off the "t" fitting to the top hole on the back of air cleaner.

86 Vn750
Coastered
De-Goated
Ears shaved
"Custom Pipes"
"Custom Seat"
Apes
Stator Mod
Malteese led Turn Signals (Rear)
Paid 750.00$ for her in 2005 w/ 9k
Currently @ 23k and counting
Stones750 is offline
post #8 of 11 (permalink) Old 06-24-2011, 01:51 PM Thread Starter
Member

six6six's Avatar

Join Date: Jun 2011
Location: Plainfield, IL
Posts: 35
iTrader: (4)

Okay that makes sence, now i just gotta figure out how to run the line.
six6six is offline
post #9 of 11 (permalink) Old 06-26-2011, 03:26 PM
Senior Member

InvisiBill's Avatar

Join Date: Aug 2010
Location: Grand Rapids-ish, MI
Posts: 162
iTrader: (1)



Use one of the two slotted cylinders on the rear of the ear. The top would probably be better, so that stuff can't fall into it. A common tip is to cut the end of the hose at a 45 angle so that if it gets pushed all the way in against the bottom, it won't block off the end of the hose.

The line just allows air to vent in and out of the float bowl as the fuel level goes up and down. It just needs to be tucked out of the airflow where a little air can freely flow to it. If it's out in the open, you can get weird things happening when you get up to speed and air is forced into the line (and therefore into the float bowl).


1985 VN700 A1 (Sold) | 2009 Ninja 500R EX500D9F
VROC #32761
InvisiBill is offline
post #10 of 11 (permalink) Old 06-29-2011, 12:44 PM Thread Starter
Member

six6six's Avatar

Join Date: Jun 2011
Location: Plainfield, IL
Posts: 35
iTrader: (4)

Thanks for the picture.

I noticed while looking in the repair manual i have my fuel lines reversed, does it really matter which one goes to which side of the petcock?
