Help identifying the air/fuel screw. Pics Included.

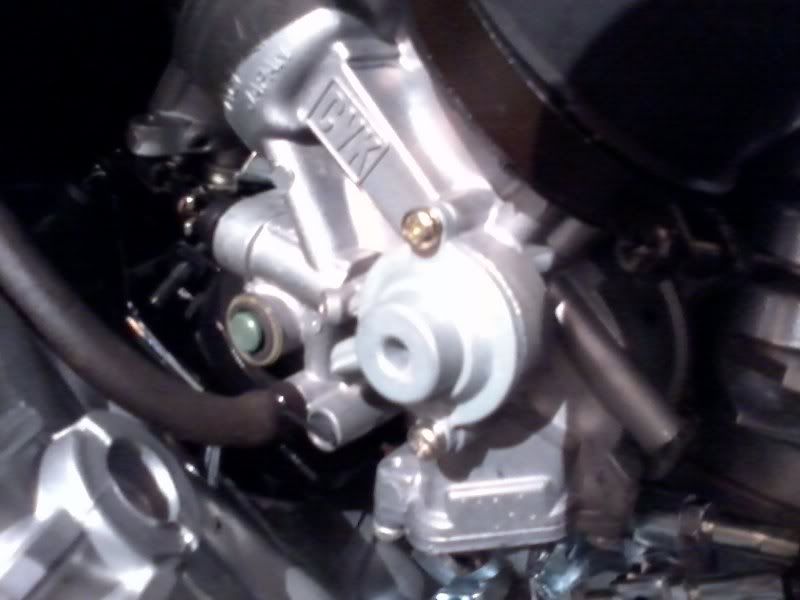

I took a few pics, I believe the air-fuel screws are the ones above the hose with a cap that has a greenish tinge, but can never be too sure so I'm posting pics for verification. Thanks!




Last edited by Unclemoney; 04-03-2011 at 12:40 AM.
Unclemoney is offline
Sponsored Links
Advertisement

post #2 of 24 (permalink) Old 04-03-2011, 12:46 AM
Linkmeister Supreme

OlHossCanada's Avatar

Join Date: Aug 2008
Location: Lethbridge, Alberta, Canada
Posts: 7,960
iTrader: (8)

That looks like the one. It should be a soft metal cap or plug covering the screw.
Here is a picture from the gallery:
https://www.vn750.com/photopost/showp...oto=23&cat=503

Gordon

1991 VN 750 -"Cosmic Lady" or "Bad Girl"?
Purchased May 16, 2008
Approx.19,300km (12,000 miles)

H-D windshield
Relocated R/R
MF-AGM battery
Fiamm Freeway Blaster horns
F&S luggage rack and engine guard
Kury Offset Hiway pegs
July 13, 2016, Riding on the DARKSIDE now, Classic Radial 165/80-15


TOP TEN THINGS A NEW RIDER/OWNER SHOULD DO. Click on link.
https://www.vn750.com/forum/11-vn750-general-discussion/9127-top-ten-items-you-would-suggest-new-owner-do-his-new-ride.html
OlHossCanada is offline
post #3 of 24 (permalink) Old 04-03-2011, 01:13 AM
Senior Member

ohio_redneck75's Avatar

Join Date: Jul 2009
Location: coshocton,oh
Posts: 166
iTrader: (0)

i think so mine was lead i think

2002 vn750,7800 mile,homemade drag pipes,harley heratige seat,honda sissybar,led rear turn signals,
iridium plugs,marbled,110/90/19 kenda kruz front,
170/80/15 kenda kruz rear,saddlebags.
whats to come****handlebars,highway pegs
ohio_redneck75 is offline

post #4 of 24 (permalink) Old 04-03-2011, 05:11 AM Thread Starter
Member

Join Date: Mar 2011
Location: Canon City/Colorado Springs, CO
Posts: 57
iTrader: (0)

Couldn't get the plugs to pop off, I drove a screwdriver in and went to pry and bent the screwdriver but no luck with the plugs... Any advice?
Unclemoney is offline
post #5 of 24 (permalink) Old 04-03-2011, 05:28 AM
Banned

Join Date: Dec 2010
Posts: 448
iTrader: (3)

The caps are aluminum, and they are the ones under the hose in the picture. I tried to drill mine, but couldn't get the right angle to do it, so I took a flat bladed screwdriver and small hammer, and broke the flange around the bottom of the plug, and pried the cap out. Took a little time, but I was able to remove them w/o hurting the carbs any.
RakerBill is offline
post #6 of 24 (permalink) Old 04-03-2011, 11:38 AM
Member

Join Date: Nov 2010
Location: RI
Posts: 97
iTrader: (2)

Dont drill above the vacuum hose!!!!! That greenish looking thing is the end of the rod that your butterfly valve sits on.
Bazooka_Luca is offline
post #7 of 24 (permalink) Old 04-03-2011, 12:08 PM
Members who have donated towards server costs

JM2001's Avatar

Join Date: Mar 2011
Location: Rochester, New York
Posts: 1,803
iTrader: (1)

Quote:
Originally Posted by Unclemoney View Post
I took a few pics, I believe the air-fuel screws are the ones above the hose with a cap that has a greenish tinge, but can never be too sure so I'm posting pics for verification. Thanks!



NO No That is not the air/fuel screw. The screw is just below the vacuum hose. In the picture of the left side the hose clamp is covering it. It faces downward.
JM2001 is offline
post #8 of 24 (permalink) Old 04-03-2011, 12:45 PM
Senior Member

Ceal's Avatar

Join Date: Aug 2010
Posts: 2,687
iTrader: (2)

I just took a blade screwdriver that was smaller than the actual cap and I hammered on it. The cap isn't very hard, so I drove the screwdriver right through the middle and just pulled it out. No damage to the carb at all, didn't even touch it.
Ceal is offline
post #9 of 24 (permalink) Old 04-03-2011, 02:39 PM Thread Starter
Member

Join Date: Mar 2011
Location: Canon City/Colorado Springs, CO
Posts: 57
iTrader: (0)

Oh I see, I had the wrong cap there, good thing the screwdriver bent and the cap stayed on then!!!!

Thanks for pointing out the right one!
Unclemoney is offline
post #10 of 24 (permalink) Old 04-03-2011, 02:44 PM Thread Starter
Member

Join Date: Mar 2011
Location: Canon City/Colorado Springs, CO
Posts: 57
iTrader: (0)

Also, do you think that I wouldn't have to adjust the screws out as far to compensate for elevation???

Canon is over 5,000ft and the Springs is over 6,000, can go up quite a bit higher than that (like 8,000 all the way up to 11,000ft) but not too often
