turn signals

Hello all, its time I replace my turn signals, there limp as can be and just bounce up and down. Im thinking of giving the el cheapo LED lights on ebay a try, kinda figure you get what you pay for so with that in mind have any of you tried them? If I can get the links to work ill post a few im thinking of trying.

http://www.ebay.com/itm/24-Red-LED-C...54c32b&vxp=mtr

http://www.ebay.com/itm/Universal-Mo...8380e9&vxp=mtr

http://www.ebay.com/itm/Skull-Turn-S...c4ad7c&vxp=mtr
scott42 is offline
Sponsored Links
Advertisement

post #2 of 12 (permalink) Old 10-27-2014, 11:09 PM
1986 VN750

thtanner's Avatar

Join Date: Nov 2011
Location: Dana Point, CA
Posts: 3,255
iTrader: (8)

Garage
Just a note if you do change them you may need to get a EP34 flasher relay to fix the blink rate. It's a plug and play thing. About $10.

1986 Kawasaki Vulcan 750
NGK Iridium Plugs #7803/DPR7EIX-9
Duralast Gold ETX15 AGM Battery
Coastered & Shaved
TOC MCCTs
Metzeler ME880 [110/90-19, 170/80-15]
Balance Dampers Replaced
Tuxedo Mod
Rebuilt Forks w/ Progressive Springs
V&H Cruzers
VN750.com Grill Cover
Meanstreak Seat
Emgo 23-92411 Handlebars
MOSFET FH012AA R/R


1990 Kawasaki Vulcan 750

1998 Honda VFR800 FI

2014 Honda VFR800F

1989 Pontiac Firebird Formula 350
thtanner is offline
post #3 of 12 (permalink) Old 10-28-2014, 12:26 AM
ass hole extaordinaire

new rider 9984's Avatar

Join Date: May 2012
Location: Sulphur Springs TX
Posts: 3,780
iTrader: (7)

I have some signals for sell get on your bike this weekend and come out to sulphur springs we got an event out here Saturday anyways my number is right down there V

Quote:
Originally Posted by denny6006 View Post
Sucks getting old but it beats not getting old.

i got my helmet but it sure makes licking the windows a chore

cell phone number for anyone who needs it 214-516-1738

photobucket link
http://s1066.photobucket.com/user/newrider9984/library/
new rider 9984 is offline

post #4 of 12 (permalink) Old 10-28-2014, 02:03 AM
Senior Member

MadKat's Avatar

Join Date: Sep 2014
Location: Bay Area, California
Posts: 149
iTrader: (0)

Another thing to keep in mind is the two wire vs 3 wire signals.

2 Wires will be ground and positive 12v for when the blinker is switched on,
but the light will not be on at all unless you have the blinker going.

If you want to have a dual function running light / blinker, where the light is
on at all times and blinks brighter when you hit the turn signal, youll need 3 wire
turn signals. The front on your bike should have been 3 wire from the factory,
and the rear I believe are usually 2 wire but you can splice the blue running light
wire onto them to make them running lights as well.

I have been going thru all this and made the mistake of ordering two wire lights from
the ol bay and had to go sort thru the listings to find 3 wire ones I liked.

[SIZE="4"][B]"A ship does not sail on yesterday`s wind."
[I]-Louis L'amour[/I][/B][/SIZE]
MadKat is offline
post #5 of 12 (permalink) Old 10-28-2014, 03:19 PM
Senior Member

kc2dgq's Avatar

Join Date: May 2010
Location: New Jersey
Posts: 3,350
iTrader: (13)

Garage
front signals are 3 wire and incorporate a running light that stays on all the time.
Rear blinkers are 2 wire and only function as blinkers.

If you keep the same style stalks, I offer LED inserts to fit the round case....see my signature links.

IF you add running lights to the rear, you have to check your local laws because AMBER is not permitted in the rear in most states unless it is a blinker only. My inserts have RED LED running lights and AMBER blinkers on the same board which is leagal with a RED lens. Yellow shows through the red lens just fine....or use smoked lenses.

and yes, you will need to replace your blinker relay with an EP34 like Thtanner said.
kc2dgq is offline
post #6 of 12 (permalink) Old 10-28-2014, 07:20 PM Thread Starter
Senior Member

scott42's Avatar

Join Date: Aug 2014
Location: arlington tx
Posts: 139
iTrader: (0)

Thank you guys for the info, thats stuff I didnt know so thank you much for the info. Im going to do something just dont know as of now. The wife has aproved a new bike loan so I might be getting me a new bike soon, not sure what as theres too many to choose from.
scott42 is offline
post #7 of 12 (permalink) Old 11-16-2014, 07:00 PM Thread Starter
Senior Member

scott42's Avatar

Join Date: Aug 2014
Location: arlington tx
Posts: 139
iTrader: (0)

Guys I got my lights in and the rear turn signals installed, what do you think?

this is the light strait out of the package.



this is them installed and ready to go.


Here they are with the flashers on, its not a very good pic but its goodn to see how bright they are.

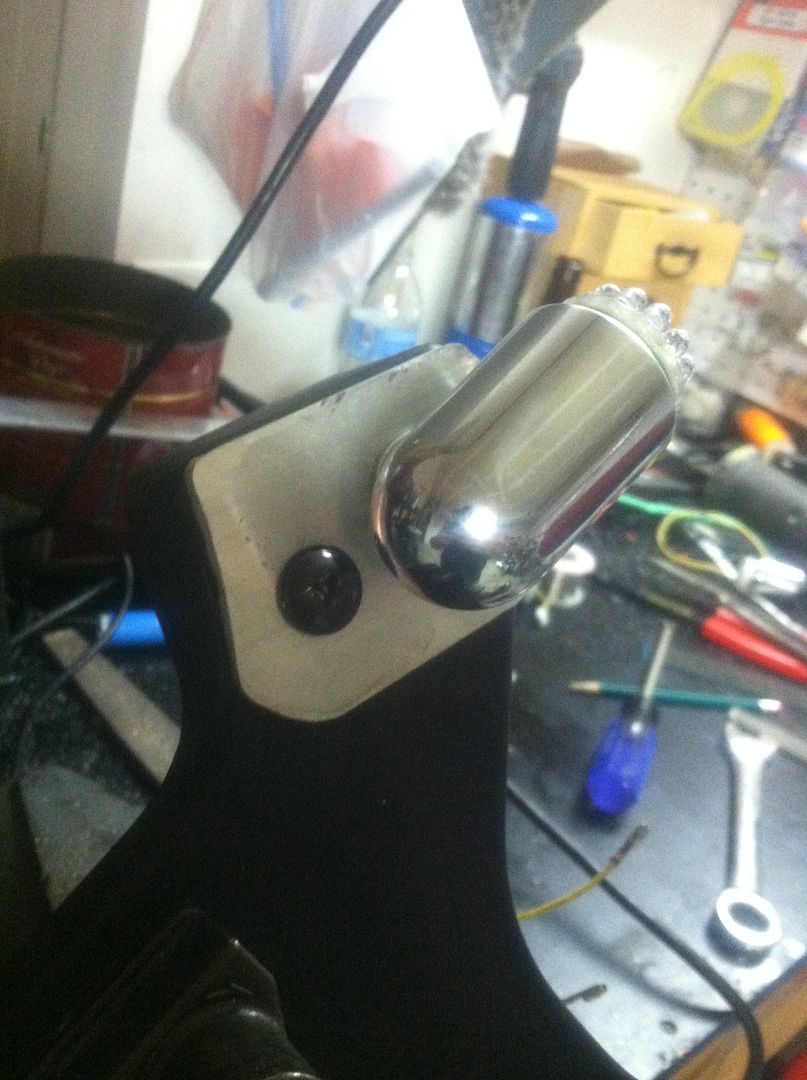

This is the mounting plates I made from aluminum flat stock so I could mount them in the original place as toe others with out drilling unnessary holes in my bag mounts.
scott42 is offline
post #8 of 12 (permalink) Old 11-16-2014, 07:01 PM Thread Starter
Senior Member

scott42's Avatar

Join Date: Aug 2014
Location: arlington tx
Posts: 139
iTrader: (0)

Im going to make mounts for the front some time this week and get them installed. I really like the clean slim look of them.
scott42 is offline
post #9 of 12 (permalink) Old 11-16-2014, 07:13 PM
1986 VN750

thtanner's Avatar

Join Date: Nov 2011
Location: Dana Point, CA
Posts: 3,255
iTrader: (8)

Garage
Nicely done!

1986 Kawasaki Vulcan 750
NGK Iridium Plugs #7803/DPR7EIX-9
Duralast Gold ETX15 AGM Battery
Coastered & Shaved
TOC MCCTs
Metzeler ME880 [110/90-19, 170/80-15]
Balance Dampers Replaced
Tuxedo Mod
Rebuilt Forks w/ Progressive Springs
V&H Cruzers
VN750.com Grill Cover
Meanstreak Seat
Emgo 23-92411 Handlebars
MOSFET FH012AA R/R


1990 Kawasaki Vulcan 750

1998 Honda VFR800 FI

2014 Honda VFR800F

1989 Pontiac Firebird Formula 350
thtanner is offline
post #10 of 12 (permalink) Old 05-12-2015, 10:11 AM
Junior Member

Join Date: Jul 2013
Location: South east PA
Posts: 8
iTrader: (0)

Pays to read first...

Hey all, I love all the info here. I almost never need to ask a question because they are all already answered here.

I just received my new eBay turn signals and they look great for $10. I like the LED and I like that its simple to replace the flasher unit rather than install the resistor ballasts like I did on my sisters R6.

My question was about mounting them, ours have the twist lock base with the screw off to the side. The new ones (all except OEM) are a single stalk with the wires protruding through the stem.

I love the simple plate scott42 made and that is the answer to my question. I assume I can make these from whatever aluminum or steel stock I have in the shop.

One more question tho, and I apologize if it was already covered but I assume I will lose my front running lights because the stock are 3 wire not 2. Was anyone able to easily fix this issue? If I added a resistor to lower the LED output and add a diode to prevent back flow I could maybe add the feature back with little hassle. Just wondering out loud.

Thanks for all your advise.
