flip floped the pickups, does it matter?

So I did the stator MOD, put everything back in. She turned over but not catching.. I have spark to all plugs... So I'm second guessing myself on my work. Would flip flopping the pickups cause an issue? Also I may have flip floped the green and black wires on the rear coil would that matter??. Someone help me please

The constitution was not written for We The People, but rather for those who SERVE THE PEOPLE!
The strongest reason for the people's right to bear arms is as a last resort to prevent tyranny in government,
T Jefferson.....Don't Tread On Me!

Last edited by grousehunter1475; 10-20-2014 at 03:26 PM. Reason: typo's
grousehunter1475 is offline
Sponsored Links
Advertisement

post #2 of 10 (permalink) Old 10-20-2014, 03:24 PM
Super Moderator

Join Date: Feb 2013
Location: SW Florida
Posts: 2,442
iTrader: (5)

if the pickup coils are in the wrong locations, it wont run well, if at all.

2005 VN750

Sold 11-27-17
michiganteddybear is offline
post #3 of 10 (permalink) Old 10-20-2014, 04:06 PM Thread Starter
Senior Member

Join Date: Jul 2014
Location: Columbus Ohio
Posts: 106
iTrader: (0)

Copy that Thad. I'll try flip flopping them and try starting her up

The constitution was not written for We The People, but rather for those who SERVE THE PEOPLE!
The strongest reason for the people's right to bear arms is as a last resort to prevent tyranny in government,
T Jefferson.....Don't Tread On Me!
grousehunter1475 is offline

post #4 of 10 (permalink) Old 10-20-2014, 04:08 PM Thread Starter
Senior Member

Join Date: Jul 2014
Location: Columbus Ohio
Posts: 106
iTrader: (0)

Ryan's for the reply I'll be flip flopping them and trying to start her again tomorrow

The constitution was not written for We The People, but rather for those who SERVE THE PEOPLE!
The strongest reason for the people's right to bear arms is as a last resort to prevent tyranny in government,
T Jefferson.....Don't Tread On Me!
grousehunter1475 is offline
post #5 of 10 (permalink) Old 10-20-2014, 04:46 PM
Senior Member

scott42's Avatar

Join Date: Aug 2014
Location: arlington tx
Posts: 139
iTrader: (0)

I dont understand how you could get them in the wrong place to begine with? Arnt the leads on each pickup coil different lenths? I could be wrong on that but thats what stands out from my exsperiance with my stator job.
scott42 is offline
post #6 of 10 (permalink) Old 10-20-2014, 06:55 PM
ass hole extaordinaire

new rider 9984's Avatar

Join Date: May 2012
Location: Sulphur Springs TX
Posts: 3,780
iTrader: (7)

they are the same length but different colors

Quote:
Originally Posted by denny6006 View Post
Sucks getting old but it beats not getting old.

i got my helmet but it sure makes licking the windows a chore

cell phone number for anyone who needs it 214-516-1738

photobucket link
http://s1066.photobucket.com/user/newrider9984/library/
new rider 9984 is offline
post #7 of 10 (permalink) Old 10-20-2014, 08:29 PM Thread Starter
Senior Member

Join Date: Jul 2014
Location: Columbus Ohio
Posts: 106
iTrader: (0)

On my bike they were the same legth.. I even marked one with tape but when I took off the tape to put everything back i got distracted by my girlfriend (go figure) and lost which one was wich. I thought I put them in right. But ive been having troubles starting her... I did the earshave too and adjusted the mix screw per instructions.

The constitution was not written for We The People, but rather for those who SERVE THE PEOPLE!
The strongest reason for the people's right to bear arms is as a last resort to prevent tyranny in government,
T Jefferson.....Don't Tread On Me!
grousehunter1475 is offline
post #8 of 10 (permalink) Old 10-20-2014, 09:54 PM
200% senile

Texas's Avatar

Join Date: Sep 2013
Location: Close to San Antonio, TX
Posts: 164
iTrader: (2)

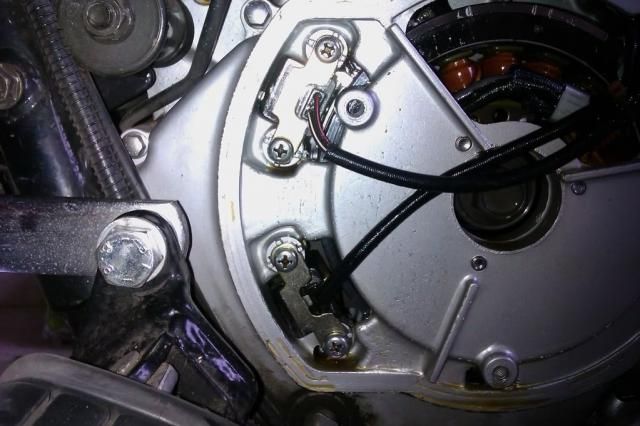

Here is a pic for ya showing the (black/white : black/red) wire colors going to the upper mounted pickup coil...

The wire colors for the lower pickup coil is (black/yellow : black)

Just a info side-note...the upper mounted pickup coil is for the rear cylinder, and the lower mounted one is for the front cylinder.

1996 VN 750
2007 Vulcan Mean Streak SE

When I was younger I was afraid I'd die riding. Now that I'm old and falling apart, I'm afraid I won't.
Texas is offline
post #9 of 10 (permalink) Old 10-21-2014, 08:03 AM Thread Starter
Senior Member

Join Date: Jul 2014
Location: Columbus Ohio
Posts: 106
iTrader: (0)

Thank you thank you thank you Texas!!!

The constitution was not written for We The People, but rather for those who SERVE THE PEOPLE!
The strongest reason for the people's right to bear arms is as a last resort to prevent tyranny in government,
T Jefferson.....Don't Tread On Me!
grousehunter1475 is offline
post #10 of 10 (permalink) Old 10-21-2014, 11:54 PM Thread Starter
Senior Member

Join Date: Jul 2014
Location: Columbus Ohio
Posts: 106
iTrader: (0)

Well they were where they should be! I guess I didn't give myself credit. But that leaves me with the carb adjustments to deal with now in trying to start her up. Thanks y'all for the input. Texas big props to you for posting the pick it helped me out tremendously!!
