stator issues again :BLAM:

I have a tpe stator installed and have had it for over a year now but I recently have developed a charging issue

I checked for parasitic drain and found none

the charging system is charging at around 12.5 to 13v at 4k rpm and it is reading between 11.5 and 12.5 at idle

seems to charge less when the engine is warm and we don't even want to talk about what happens if the fan kicks on lol its pitiful

the stator is showing infinite resistance from each leg to ground but no resistance from leg to leg all combinations

I put my mosfet r/r on another bike and it is working fine so I know it has to be the stator that is bad again

my question is has anyone else had an issue with a tpe stator going out or am I the first one?

Quote:
Originally Posted by denny6006 View Post
Sucks getting old but it beats not getting old.

i got my helmet but it sure makes licking the windows a chore

cell phone number for anyone who needs it 214-516-1738

photobucket link
http://s1066.photobucket.com/user/newrider9984/library/
new rider 9984 is offline
Sponsored Links
Advertisement

post #2 of 33 (permalink) Old 10-19-2014, 12:17 PM
Giggity!

kanuck69's Avatar

Join Date: Jun 2007
Location: Ohio, Zanesville
Posts: 4,307
iTrader: (24)

Garage
Your not the first. I've had two TPE stators fail. Or should I say eat'n by my bike.
There was something killing them on my machine. I hope yours hasn't developed the same issue.
How many miles did you get out of it before this issue showed up?
kanuck69 is offline
post #3 of 33 (permalink) Old 10-19-2014, 07:44 PM Thread Starter
ass hole extaordinaire

new rider 9984's Avatar

Join Date: May 2012
Location: Sulphur Springs TX
Posts: 3,780
iTrader: (7)

Hey man I'm thinking about going with your alt mod did you do a write up for it?

Quote:
Originally Posted by denny6006 View Post
Sucks getting old but it beats not getting old.

i got my helmet but it sure makes licking the windows a chore

cell phone number for anyone who needs it 214-516-1738

photobucket link
http://s1066.photobucket.com/user/newrider9984/library/
new rider 9984 is offline

post #4 of 33 (permalink) Old 10-20-2014, 12:07 PM Thread Starter
ass hole extaordinaire

new rider 9984's Avatar

Join Date: May 2012
Location: Sulphur Springs TX
Posts: 3,780
iTrader: (7)

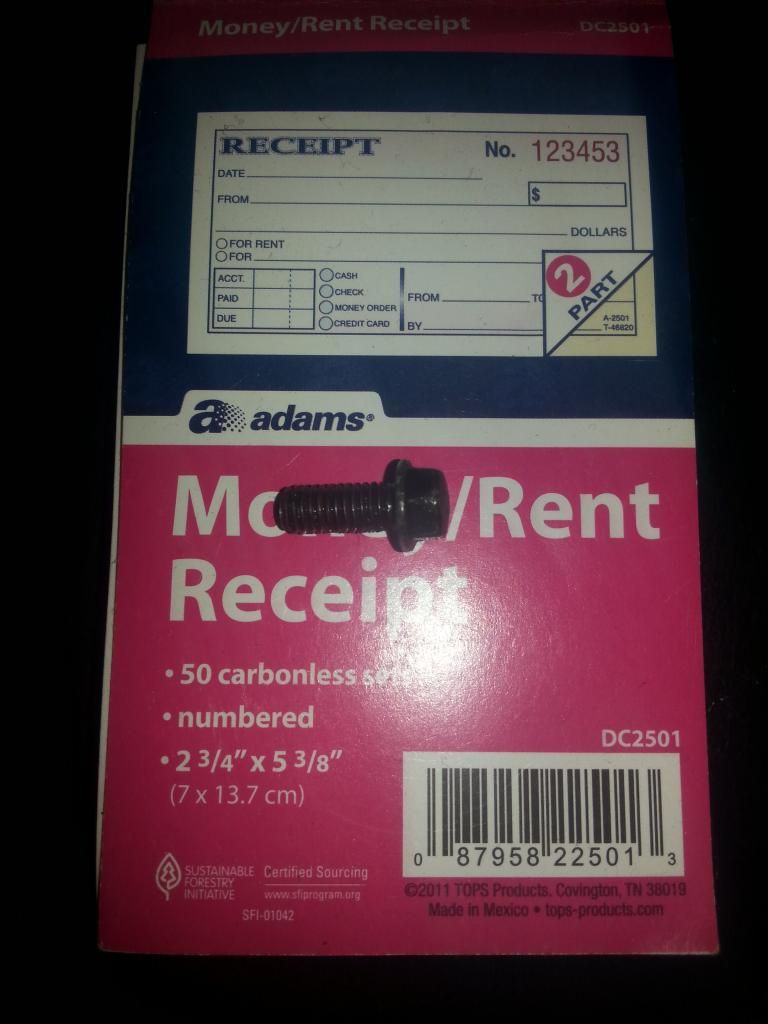

I pulled the outer stator cover to take some measurements for the alternator mod and this fell out from behind it does any one recognize this bolt

[IMG][/IMG]

Quote:
Originally Posted by denny6006 View Post
Sucks getting old but it beats not getting old.

i got my helmet but it sure makes licking the windows a chore

cell phone number for anyone who needs it 214-516-1738

photobucket link
http://s1066.photobucket.com/user/newrider9984/library/
new rider 9984 is offline
post #5 of 33 (permalink) Old 10-20-2014, 04:42 PM
Senior Member

scott42's Avatar

Join Date: Aug 2014
Location: arlington tx
Posts: 139
iTrader: (0)

looks like the bolt that holds the flywheel in place to me. The damper bolt is gold in coloer if I remember correct from exsperiance.
scott42 is offline
post #6 of 33 (permalink) Old 10-20-2014, 06:53 PM Thread Starter
ass hole extaordinaire

new rider 9984's Avatar

Join Date: May 2012
Location: Sulphur Springs TX
Posts: 3,780
iTrader: (7)

Quote:
Originally Posted by scott42 View Post
looks like the bolt that holds the flywheel in place to me. The damper bolt is gold in coloer if I remember correct from exsperiance.
I can ensure you that it is not the flywheel bolt since this one is an 8mm head

I put it on the receipt book for size reference the book is 2 3/4 of an inch by 5 3/8 of an inch

Quote:
Originally Posted by denny6006 View Post
Sucks getting old but it beats not getting old.

i got my helmet but it sure makes licking the windows a chore

cell phone number for anyone who needs it 214-516-1738

photobucket link
http://s1066.photobucket.com/user/newrider9984/library/
new rider 9984 is offline
post #7 of 33 (permalink) Old 10-21-2014, 12:42 AM
Ndr
Senior Member

Join Date: Feb 2010
Location: Pittsburgh, PA
Posts: 856
iTrader: (10)

only bolts with and 8mm head I can think of on that side/area would be for the cam chain guides, but I'm pretty sure all those were all zinc coated bolts and not black.

......I'd rather wake up in the middle of nowhere then in any city on earth.

*2014 VN900 Custom (16,200 miles and counting)
Ndr is offline
post #8 of 33 (permalink) Old 10-21-2014, 09:36 AM Thread Starter
ass hole extaordinaire

new rider 9984's Avatar

Join Date: May 2012
Location: Sulphur Springs TX
Posts: 3,780
iTrader: (7)

yeah those were zinc 10mm for the chain guides

Quote:
Originally Posted by denny6006 View Post
Sucks getting old but it beats not getting old.

i got my helmet but it sure makes licking the windows a chore

cell phone number for anyone who needs it 214-516-1738

photobucket link
http://s1066.photobucket.com/user/newrider9984/library/
new rider 9984 is offline
post #9 of 33 (permalink) Old 10-21-2014, 09:41 AM Thread Starter
ass hole extaordinaire

new rider 9984's Avatar

Join Date: May 2012
Location: Sulphur Springs TX
Posts: 3,780
iTrader: (7)

I figured it out I had that bolt holding my left side ear on and dropped the bolt I thought I lost it in the grass but now that I think of it I did have the oil fill cap off at the time

i'm just glad that's all it was and that It didn't do any damage

Quote:
Originally Posted by denny6006 View Post
Sucks getting old but it beats not getting old.

i got my helmet but it sure makes licking the windows a chore

cell phone number for anyone who needs it 214-516-1738

photobucket link
http://s1066.photobucket.com/user/newrider9984/library/
new rider 9984 is offline
post #10 of 33 (permalink) Old 11-05-2014, 09:56 PM Thread Starter
ass hole extaordinaire

new rider 9984's Avatar

Join Date: May 2012
Location: Sulphur Springs TX
Posts: 3,780
iTrader: (7)

so i have now bought an alternator and will be working on making mounting plates and doing the crankshaft mods to create my drive pulley setup

i will be trying to run this as a one belt system and integrate forward controls into the alternator brackets wish me luck guys this is going to be fun

Quote:
Originally Posted by denny6006 View Post
Sucks getting old but it beats not getting old.

i got my helmet but it sure makes licking the windows a chore

cell phone number for anyone who needs it 214-516-1738

photobucket link
http://s1066.photobucket.com/user/newrider9984/library/
new rider 9984 is offline
