Cuts off when clutch pulled in slowly

So I've had an intermittent shut off situation for awhile.. It was that anytime I turned the handle bar, the engine cut off. It didn't matter if if was standing still in neutral or turning while on the road. Once I straightened up I could immediately restart and keep going...
Here's what I discovered this morning.
Idling
In neutral
KICKSTAND UP
Handlebar moved side to side, no issues (this morning)
Clutch lever moved in and out slowly, no issue

Same set up, but, KICKSTAND DOWN
Slowly pull the clutch and the engine cuts off..
Quickly pull the clutch, no issue.

I've cleaned the cut off switch and clutch switch. No changes

Any ideas.
2kawaowner is offline
Sponsored Links
Advertisement

post #2 of 7 (permalink) Old 09-12-2014, 11:54 AM
..have a vulcan good day!

WilliamTech's Avatar

Join Date: May 2011
Location: Pensacola, FL.
Posts: 4,508
iTrader: (17)

Quote:
Originally Posted by 2kawaowner View Post
So I've had an intermittent shut off situation for awhile.. It was that anytime I turned the handle bar, the engine cut off. It didn't matter if if was standing still in neutral or turning while on the road. Once I straightened up I could immediately restart and keep going...
Here's what I discovered this morning.
Idling
In neutral
KICKSTAND UP
Handlebar moved side to side, no issues (this morning)
Clutch lever moved in and out slowly, no issue

Same set up, but, KICKSTAND DOWN
Slowly pull the clutch and the engine cuts off..
Quickly pull the clutch, no issue.


I've cleaned the cut off switch and clutch switch. No changes

Any ideas.

EDIT:

PHP Code:
Kick stand switch .... bypass it
Oops....brain did not consider "Neutral" gear
PHP Code:
Clutch switch... clean again
Oops....brain did not consider "Neutral" gear

Handlebar issue: Check/Clean wire harness "connectors" under neck covers.

hth


'86 VN750 13,700 mi -Stock
-Purchased 2008 w/8800mi
Replaced ALL Cables . Kuryakyn LED Voltmeter
SilverStar Ultra 9003/HB2 H4 Headlamp, Jardine Fwd Controls,
Iridiums DPR7EIX-9 & Wires, Tuxedo Mod, Coil Mod, P/U Sensor Mod, Fork Seals,
Splines Lubed - 11/4/2012 - MF AGM Battery
Additional Flashing LED Brake Light on Trunk
Dampers went out @ 13+K !
After TOC MCCT's..... so amazingly quiet I discovered a rattling heat shield on my stock exhaust !
...have a vulcan good day!

Last edited by WilliamTech; 09-12-2014 at 03:02 PM.
WilliamTech is offline
post #3 of 7 (permalink) Old 09-12-2014, 02:27 PM
Senior Member

kc2dgq's Avatar

Join Date: May 2010
Location: New Jersey
Posts: 3,350
iTrader: (13)

Garage
Quote:
Originally Posted by 2kawaowner View Post
So I've had an intermittent shut off situation for awhile.. It was that anytime I turned the handle bar, the engine cut off. It didn't matter if if was standing still in neutral or turning while on the road. Once I straightened up I could immediately restart and keep going...
Here's what I discovered this morning.
Idling
In neutral
KICKSTAND UP
Handlebar moved side to side, no issues (this morning)
Clutch lever moved in and out slowly, no issue

Same set up, but, KICKSTAND DOWN
Slowly pull the clutch and the engine cuts off..
Quickly pull the clutch, no issue.

I've cleaned the cut off switch and clutch switch. No changes

Any ideas.
If the bike is in neutral, none of this would matter.

you have an intermittent connection that needs to be found in the harness around the neck someplace.

Pulling the clutch with kickstand down does nothing if the bike is in neutral. if it were in gear it would die letting the clutch OUT...not pulling the lever.

I suggest that pulling the clutch put tension on the clutch cable....which slightly flexes it around the neck...possibly moving a wire bundle that is either shorting to the frame or has an intemittent connection.

Good luck!
kc2dgq is offline

post #4 of 7 (permalink) Old 09-12-2014, 04:15 PM Thread Starter
Member

Join Date: Aug 2009
Location: Richmond, VA
Posts: 31
iTrader: (0)

Thanks Williamtech and KC2dgq for your input..
I'm feeling a wire is rubbing somewhere because of the prior issue.. It would cut out ONLY when I turned. I'll pull some things off and take a closer look..
2kawaowner is offline
post #5 of 7 (permalink) Old 09-12-2014, 05:50 PM
Senior Member

scott42's Avatar

Join Date: Aug 2014
Location: arlington tx
Posts: 139
iTrader: (0)

I had that same identicle problem, mine was from the wiring harness that attaches to the key igition,every time it would move it would loose contact and die.My suggestion would be start the bike, locate the harness of the key and wiggle it without moving the handle bars and see if it dies or not. Thats what was happening with mine. My simple fix was to place a small washer in the gap to keep it from moving around and adrop og super glue to hold the washer in place. I havent had the problem since doing it. I will try to post a pic or two for you.


Last edited by scott42; 09-12-2014 at 06:06 PM.
scott42 is offline
post #6 of 7 (permalink) Old 09-12-2014, 06:08 PM
Senior Member

scott42's Avatar

Join Date: Aug 2014
Location: arlington tx
Posts: 139
iTrader: (0)

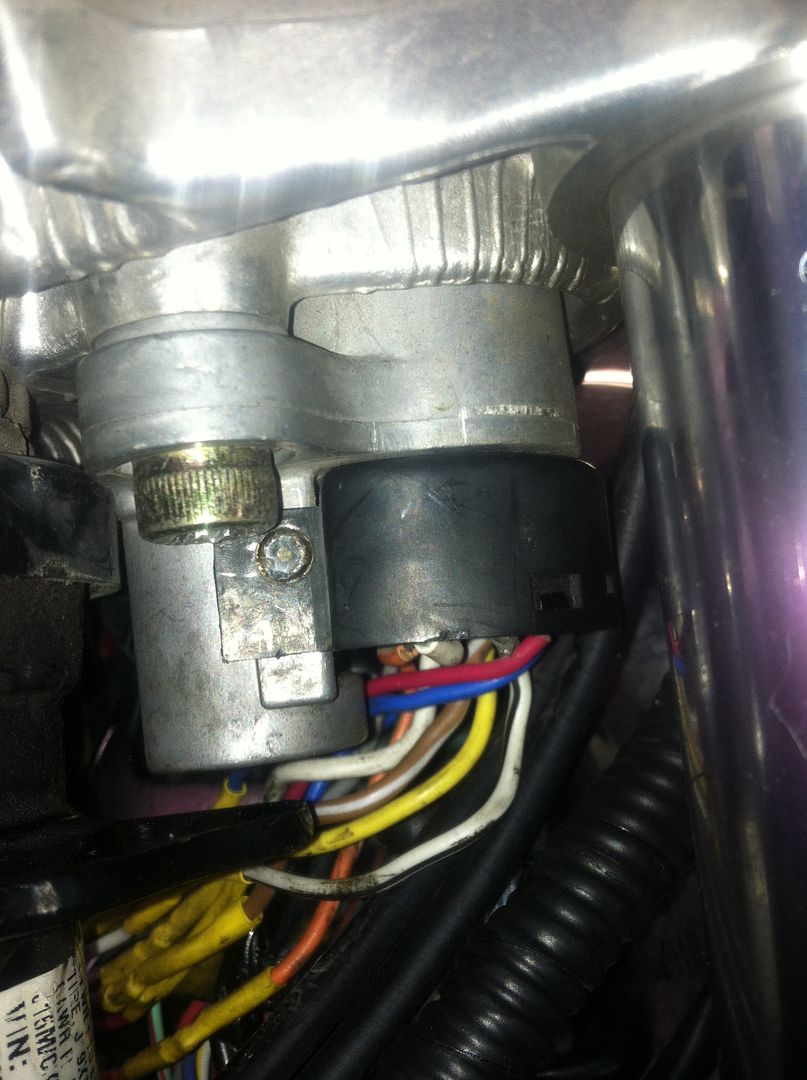

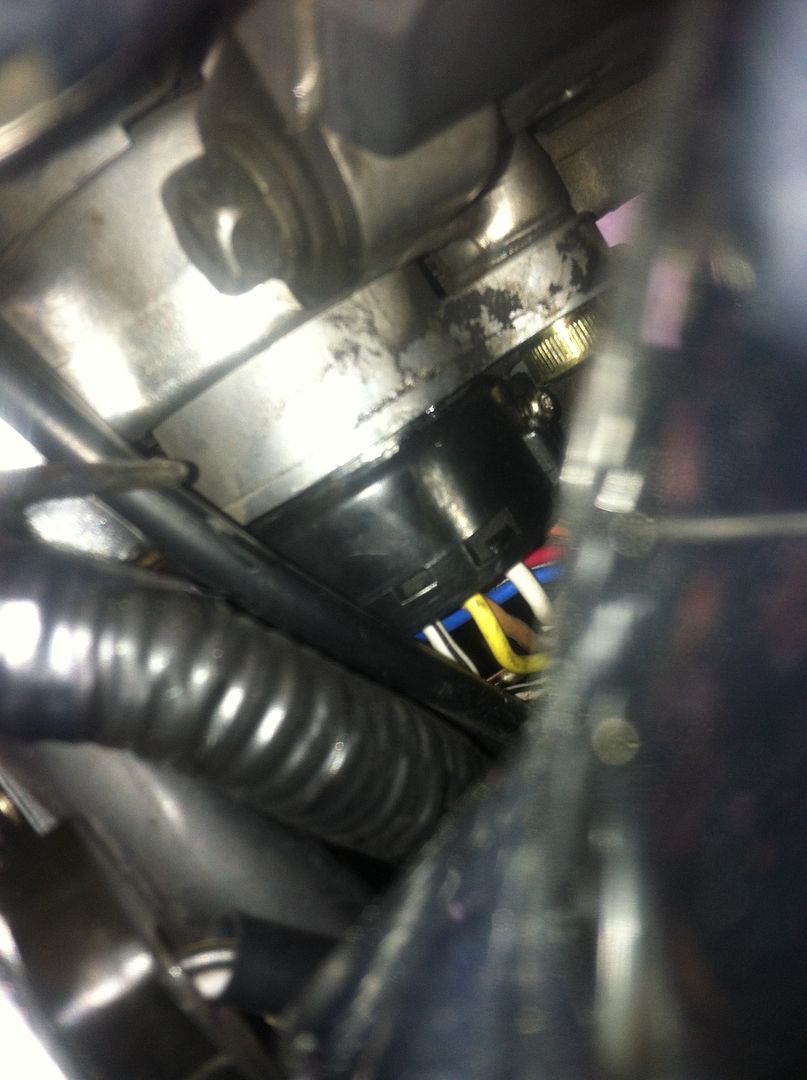

In the top pic if you look you can see just a small washer in between the harness and the key ignition, thats what my problem was and this was my fix.
scott42 is offline
post #7 of 7 (permalink) Old 09-12-2014, 11:33 PM Thread Starter
Member

Join Date: Aug 2009
Location: Richmond, VA
Posts: 31
iTrader: (0)

Thanks Scott42, that seems quick and simple I WILL be trying this tomorrow morning.
