Stator problems

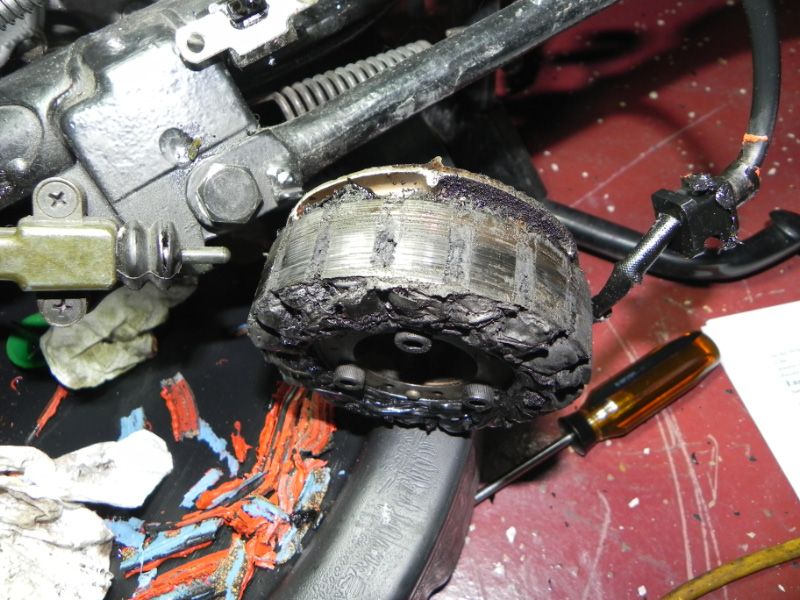

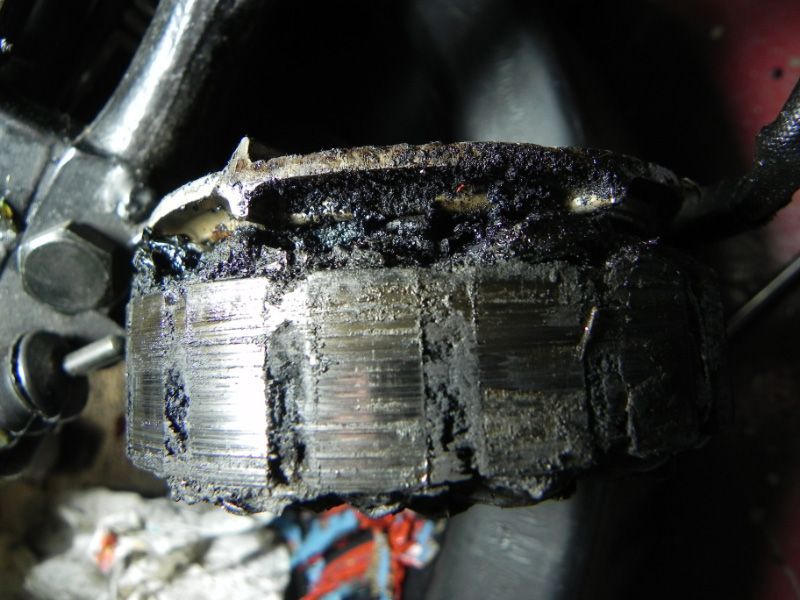

Well I have a new to me bike, that was not charging the battery. Following the troubleshooting, it was pretty quick to determine a bad stator when all three elads showed solid continuity. Luckily the bike already had what I believe is the Tuxedo mod done. So it only took me about 15 minutes to pull the stator. What a mess. Looks burnt pretty bad, you can even smell that burnt electric smell. So obviously I will be ordering a new stator (any suggestions on where to order best quality replacement appreciated). One concern I have is that the inside of the cup the stator sits is now scored up pretty bad (see Picture), should this be a concern and if so what is the fix? Thanks

Bill





NM750 is offline
Sponsored Links
Advertisement

post #2 of 22 (permalink) Old 06-15-2013, 01:04 PM
1986 VN750

thtanner's Avatar

Join Date: Nov 2011
Location: Dana Point, CA
Posts: 3,255
iTrader: (8)

Garage
Ouch, that stator is TOAST!

Talk to Tim Parrot @ www.tpe-usa.com - he rebuilds stators and they're much better quality than a cheap Chinese one would be. That's probably what that one is!

At least the tuxedo mod was done prior. I had the same luck when I got my bike.. saved me a ton of time. I put a TPE stator in it with a MOSFET R/R and all has been well since.

I'd wipe the crud off the rotor as well so it doesn't get in the engine / oil.

1986 Kawasaki Vulcan 750
NGK Iridium Plugs #7803/DPR7EIX-9
Duralast Gold ETX15 AGM Battery
Coastered & Shaved
TOC MCCTs
Metzeler ME880 [110/90-19, 170/80-15]
Balance Dampers Replaced
Tuxedo Mod
Rebuilt Forks w/ Progressive Springs
V&H Cruzers
VN750.com Grill Cover
Meanstreak Seat
Emgo 23-92411 Handlebars
MOSFET FH012AA R/R


1990 Kawasaki Vulcan 750

1998 Honda VFR800 FI

2014 Honda VFR800F

1989 Pontiac Firebird Formula 350
thtanner is offline
post #3 of 22 (permalink) Old 06-15-2013, 01:07 PM
Glenn C.

gcextreme's Avatar

Join Date: Apr 2010
Location: Alexandria, Minnesota
Posts: 1,625
iTrader: (16)

Ouch...been there done that..

First, make sure your mod plate is CORRECT and is done right!!
it looks like the stator had been rubbing on the rotor??
If so then the stator isn't getting centered in there.


And YES go with TPE Tim Parrott Enterprises...he stands behind his work and his stators are the BEST

Glenn C
Alexandria, MN
My VN750 Page
VN750 Stator Plates and Products

2001 Kawasaki Vulcan VN750
1986 Kawasaki Vulcan VN750 (being restored)
1986 Kawasaki 454LTD (being restored)
1985 Kawasaki 454LTD (being restored)
gcextreme is offline

post #4 of 22 (permalink) Old 06-15-2013, 01:12 PM
1986 VN750

thtanner's Avatar

Join Date: Nov 2011
Location: Dana Point, CA
Posts: 3,255
iTrader: (8)

Garage
Quote:
Originally Posted by gcextreme View Post
it looks like the stator had been rubbing on the rotor??
The scraping may have been from all that nasty stuff flaking off, and getting between the stator and rotor. Worth checking if it's centered, but who would re-assemble the bike if it was scraping? Then again.. POs do all sorts of stupid things.

1986 Kawasaki Vulcan 750
NGK Iridium Plugs #7803/DPR7EIX-9
Duralast Gold ETX15 AGM Battery
Coastered & Shaved
TOC MCCTs
Metzeler ME880 [110/90-19, 170/80-15]
Balance Dampers Replaced
Tuxedo Mod
Rebuilt Forks w/ Progressive Springs
V&H Cruzers
VN750.com Grill Cover
Meanstreak Seat
Emgo 23-92411 Handlebars
MOSFET FH012AA R/R


1990 Kawasaki Vulcan 750

1998 Honda VFR800 FI

2014 Honda VFR800F

1989 Pontiac Firebird Formula 350
thtanner is offline
post #5 of 22 (permalink) Old 06-15-2013, 01:15 PM Thread Starter
Junior Member

Join Date: Jun 2013
Posts: 20
iTrader: (2)

After doing some research, I think I want to replace the rotor as scored up as this one is. There are some used ones on ebay for fairly cheap. I don't have a service manual yet, is replacing the rotor as easy as removing the center bolt, pulling it and replacing it? Also will any year rotor fit my bike (2005)?
Will definitely go with TPE.

As far as the stator rubbing, when I install a new one, I assume I should just turn the engine without the cover on and watch for any rubbing?
NM750 is offline
post #6 of 22 (permalink) Old 06-15-2013, 01:30 PM
1986 VN750

thtanner's Avatar

Join Date: Nov 2011
Location: Dana Point, CA
Posts: 3,255
iTrader: (8)

Garage
Quote:
Originally Posted by NM750 View Post
After doing some research, I think I want to replace the rotor as scored up as this one is. There are some used ones on ebay for fairly cheap. I don't have a service manual yet, is replacing the rotor as easy as removing the center bolt, pulling it and replacing it? Also will any year rotor fit my bike (2005)?
Will definitely go with TPE.

As far as the stator rubbing, when I install a new one, I assume I should just turn the engine without the cover on and watch for any rubbing?
I replaced the balance dampers on mine, which are right behind the stator rotor.

You'll have to pull the engine to get the side cover off (pull it, or tilt it to the side). You then need to use a flywheel puller to pop the rotor out: http://www.ebay.com/itm/Flywheel-Rot...6ce341&vxp=mtr

It's not the most fun job in the world, but I did my engine pull and bolted it back in in the same day.

1986 Kawasaki Vulcan 750
NGK Iridium Plugs #7803/DPR7EIX-9
Duralast Gold ETX15 AGM Battery
Coastered & Shaved
TOC MCCTs
Metzeler ME880 [110/90-19, 170/80-15]
Balance Dampers Replaced
Tuxedo Mod
Rebuilt Forks w/ Progressive Springs
V&H Cruzers
VN750.com Grill Cover
Meanstreak Seat
Emgo 23-92411 Handlebars
MOSFET FH012AA R/R


1990 Kawasaki Vulcan 750

1998 Honda VFR800 FI

2014 Honda VFR800F

1989 Pontiac Firebird Formula 350
thtanner is offline
post #7 of 22 (permalink) Old 06-15-2013, 09:03 PM Thread Starter
Junior Member

Join Date: Jun 2013
Posts: 20
iTrader: (2)

So I have worked with Tim Parrot and will be shipping the stator off Monday for rebuild. Also replacing the rotor due to the gouges. I'm wondering if maybe it would be worth it to undo the tuxedo mod while it's torn apart so that I know the new one will be centered correctly, or if it's not centered will all I need is a new center plate? Really want to make sure it's put back correctly as I don't want to do this again.
NM750 is offline
post #8 of 22 (permalink) Old 06-15-2013, 09:58 PM
1986 VN750

thtanner's Avatar

Join Date: Nov 2011
Location: Dana Point, CA
Posts: 3,255
iTrader: (8)

Garage
Quote:
Originally Posted by NM750 View Post
So I have worked with Tim Parrot and will be shipping the stator off Monday for rebuild. Also replacing the rotor due to the gouges. I'm wondering if maybe it would be worth it to undo the tuxedo mod while it's torn apart so that I know the new one will be centered correctly, or if it's not centered will all I need is a new center plate? Really want to make sure it's put back correctly as I don't want to do this again.
You won't have to 'undo' the stator mod. When you get the new stator in, put it on the bracket and see if it lines up. If it doesn't, follow the tuxedo mod instructions on how to fab the plate. I think someone also made some to order on here, not sure if they're still doing it.

1986 Kawasaki Vulcan 750
NGK Iridium Plugs #7803/DPR7EIX-9
Duralast Gold ETX15 AGM Battery
Coastered & Shaved
TOC MCCTs
Metzeler ME880 [110/90-19, 170/80-15]
Balance Dampers Replaced
Tuxedo Mod
Rebuilt Forks w/ Progressive Springs
V&H Cruzers
VN750.com Grill Cover
Meanstreak Seat
Emgo 23-92411 Handlebars
MOSFET FH012AA R/R


1990 Kawasaki Vulcan 750

1998 Honda VFR800 FI

2014 Honda VFR800F

1989 Pontiac Firebird Formula 350
thtanner is offline
post #9 of 22 (permalink) Old 06-15-2013, 10:52 PM
Giggity!

kanuck69's Avatar

Join Date: Jun 2007
Location: Ohio, Zanesville
Posts: 4,307
iTrader: (24)

Garage
Hey, sorry your having such a bad experience with your new scoot.
I actually have a spare rotor I got from a combined purchase.
If you want it ill ship it to you for $35. The only thing that needs mentioned is
Where the woodruff key goes is slightly worn. Very usable though.
I'd confidently install it in my machine.

Let me know.

Edit:I have a stator that needs rewound. $45 ill Abel them both to you.
As the post below here noted. Your stator is probably beyond shot!

Last edited by kanuck69; 06-16-2013 at 08:39 AM. Reason: Adittional Info!
kanuck69 is offline
post #10 of 22 (permalink) Old 06-16-2013, 07:39 AM
Senior Member

Chuck A.'s Avatar

Join Date: Nov 2010
Posts: 1,623
iTrader: (1)

Garage
Sense the stator and the drum have been rubbing together and the drum in worn, is the stator not worn/pitted/grooved also. TPE may not be able to rebuild it if it is. NOW, with that said, where is the mending/mounting plate. It should be bolted to the stator and the engine cut out casing. Did it have one or did someone just put the stator/inside casing back in the hole and put the outside cover on. That stator has been rub all the way around and not just on one spot.
