post #1 of 12 (permalink) Old 01-27-2011, 05:02 AM Thread Starter
Blake W.

cowboydesperado's Avatar

Join Date: Jan 2011
Location: Foley, Alabama
Posts: 46
iTrader: (0)

Everything works except tach

Tach is only gauge not working. All lights work too. What could the problem be?

1991 Vulcan 750
29800 miles
Coastered...3 1/2 turns
R/R relocated
MCCT....home built from old ACCT
"Custom" Metallic Black paint....me and a can....lol....Looks damn good though.
AGM battery
Volt meter
Gutted goats belly
Harley Screamin Eagle mufflers
Spline lube....and mine actaully had grease upon inspection but regreased anyway
Metzler ME880 170/80/15 on rear
Pics coming soon...as soon as I find the camera
cowboydesperado is offline
Sponsored Links
Advertisement

post #2 of 12 (permalink) Old 01-27-2011, 09:51 AM
Giggity!

kanuck69's Avatar

Join Date: Jun 2007
Location: Ohio, Zanesville
Posts: 4,307
iTrader: (24)

Garage
Check the connections to your front ignition coil. It's possible that you don't have a good connectiuon. Also check where it connects to the wire harnes.

kanuck69 is offline
post #3 of 12 (permalink) Old 01-27-2011, 10:46 AM
Senior Member

Joem's Avatar

Join Date: Jun 2006
Location: Springfield MO
Posts: 659
iTrader: (3)

Here is something else to check. When I first got my 750 the tach didn't work either. One day I noticed a very slight movement of the indicator when I revved it. I looked closer and saw that the indicator (or pointer) was actually stuck on the wrong side of the little rubber stop that is supposed to keep it from going below zero. I drilled a tiny hole in the side of the body of the tach, stuck a piece of stiff wire in and popped the indicator back to the other side of the stop. Works fine now. The PO told me it had been knocked over in a parking lot, and the impact must have knocked the pointer onto the other side of the stop.

"Shutting up rarely leads to anything bad"

Joe McAdoo
Springfield, MO
[email protected]
VROC # 28175
-2004 Vulcan 1500 Classic 22000 miles
-1995 VN750 (Back home again!) 25000 miles
-1995 Suzuki DR350 Dualsport 1720 miles
Joem is offline

post #4 of 12 (permalink) Old 01-28-2011, 01:41 PM Thread Starter
Blake W.

cowboydesperado's Avatar

Join Date: Jan 2011
Location: Foley, Alabama
Posts: 46
iTrader: (0)

Still working on the tach but got to drive it yesterday and the speedometer wasn't working. Pulled the cable loose from the front wheel and spun the cable with my drill to see if the gauge worked....it did. Could the sensor on the front wheel be bad? I did notice the cable just slips into the sensor into a slot. Can the cable slid back of the slot and not spin?

1991 Vulcan 750
29800 miles
Coastered...3 1/2 turns
R/R relocated
MCCT....home built from old ACCT
"Custom" Metallic Black paint....me and a can....lol....Looks damn good though.
AGM battery
Volt meter
Gutted goats belly
Harley Screamin Eagle mufflers
Spline lube....and mine actaully had grease upon inspection but regreased anyway
Metzler ME880 170/80/15 on rear
Pics coming soon...as soon as I find the camera
cowboydesperado is offline
post #5 of 12 (permalink) Old 01-28-2011, 02:27 PM
Giggity!

kanuck69's Avatar

Join Date: Jun 2007
Location: Ohio, Zanesville
Posts: 4,307
iTrader: (24)

Garage

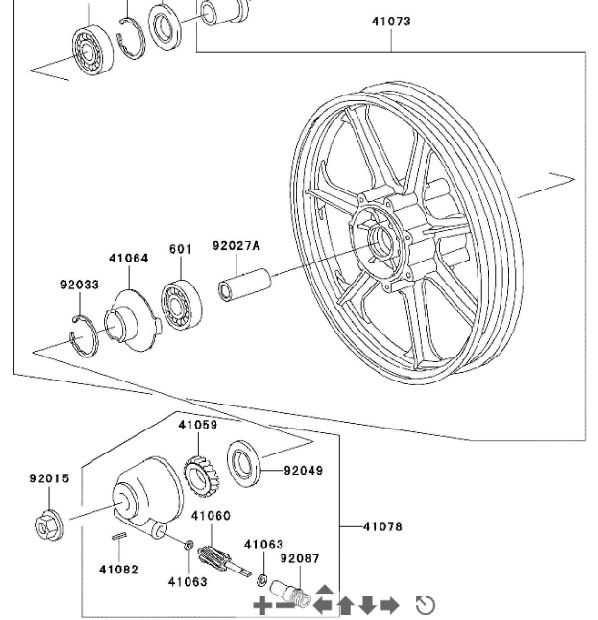

Check to see the condition of your drive gear that runs the spedometer gear. I had two of these go bad. The corners that go into the spedo gear should be nice & square. If they're not, it can slip.

Part 41064
kanuck69 is offline
post #6 of 12 (permalink) Old 01-28-2011, 03:28 PM Thread Starter
Blake W.

cowboydesperado's Avatar

Join Date: Jan 2011
Location: Foley, Alabama
Posts: 46
iTrader: (0)

Thanks I'll check the gear. I got the tach working....damn loose wire....lol

1991 Vulcan 750
29800 miles
Coastered...3 1/2 turns
R/R relocated
MCCT....home built from old ACCT
"Custom" Metallic Black paint....me and a can....lol....Looks damn good though.
AGM battery
Volt meter
Gutted goats belly
Harley Screamin Eagle mufflers
Spline lube....and mine actaully had grease upon inspection but regreased anyway
Metzler ME880 170/80/15 on rear
Pics coming soon...as soon as I find the camera
cowboydesperado is offline
post #7 of 12 (permalink) Old 02-03-2011, 09:31 AM Thread Starter
Blake W.

cowboydesperado's Avatar

Join Date: Jan 2011
Location: Foley, Alabama
Posts: 46
iTrader: (0)

Think the gears are bad. Gonna try to find another unit and thanks for the digrams kanuck. Helped alot.

1991 Vulcan 750
29800 miles
Coastered...3 1/2 turns
R/R relocated
MCCT....home built from old ACCT
"Custom" Metallic Black paint....me and a can....lol....Looks damn good though.
AGM battery
Volt meter
Gutted goats belly
Harley Screamin Eagle mufflers
Spline lube....and mine actaully had grease upon inspection but regreased anyway
Metzler ME880 170/80/15 on rear
Pics coming soon...as soon as I find the camera
cowboydesperado is offline
post #8 of 12 (permalink) Old 02-03-2011, 09:59 AM
Giggity!

kanuck69's Avatar

Join Date: Jun 2007
Location: Ohio, Zanesville
Posts: 4,307
iTrader: (24)

Garage
kanuck69 is offline
post #9 of 12 (permalink) Old 02-03-2011, 03:29 PM
Senior Member

Ceal's Avatar

Join Date: Aug 2010
Posts: 2,687
iTrader: (2)

Which wire was loose?
I have a similar problem... but mine kinda tries to move, except it just bounces around in the first couple 1000 RPM or it just stays at 0. I'm almost thinking it's the mechanism in the tach itself rather than a wire, especially cause I changed out the wiring harness already, but I suppose looking at the wires again wouldn't hurt...

So which wire was it for you?
Ceal is offline
post #10 of 12 (permalink) Old 02-04-2011, 07:13 AM Thread Starter
Blake W.

cowboydesperado's Avatar

Join Date: Jan 2011
Location: Foley, Alabama
Posts: 46
iTrader: (0)

There are two wires on the top of the coil. Mine was the rear wire that was unplugged.

1991 Vulcan 750
29800 miles
Coastered...3 1/2 turns
R/R relocated
MCCT....home built from old ACCT
"Custom" Metallic Black paint....me and a can....lol....Looks damn good though.
AGM battery
Volt meter
Gutted goats belly
Harley Screamin Eagle mufflers
Spline lube....and mine actaully had grease upon inspection but regreased anyway
Metzler ME880 170/80/15 on rear
Pics coming soon...as soon as I find the camera
cowboydesperado is offline
