Relocated my R/R: question...

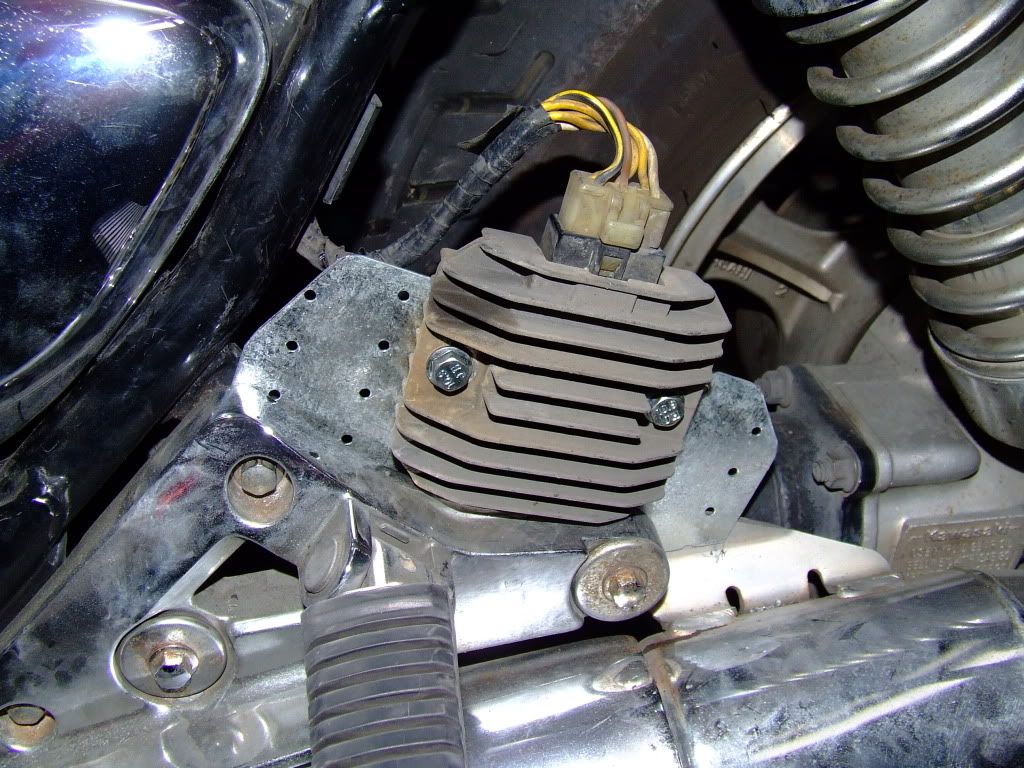

I got it moved out of the goat's belly. No problem at all: just unfastened the battery holder and then was able to move it enough to get to the bolts for the R/R. And thankfully they came out easy. Got a 3x7 nailer from the hardware store, made some slight adjustments to it, and it worked out nicely:


Now, my question is, since it's all so exposed now, should I tape or heat-shrink the exposed part of the connector to keep water out? Or is it nothing to worry about?

'95 Vulcan 750 - Purchased 8/2003 w/ 21,124 miles - passed 50K 9/3/15
* VN900 seat * Daytona handlebar * Converted ACCTs to MCCTs * Relocated R/R * Drilled clutch basket * Coastered * Repainted *

Last edited by DaveT319; 01-11-2011 at 09:19 PM.
DaveT319 is offline
Sponsored Links
Advertisement

post #2 of 9 (permalink) Old 12-05-2010, 05:15 PM
Banned

Join Date: Mar 2009
Location: Cedar Grove, NC
Posts: 431
iTrader: (0)

I would imagine that water here would be a big problem, especially considering that gravity is working against you with the R/R in this orientation. It seems like water could pool in the connection. I can't think of a good solution to isolate the connection at this point. Maybe excessive packing of the entire connection with dielectric grease?
km60155 is offline
post #3 of 9 (permalink) Old 12-05-2010, 05:33 PM Thread Starter
Let's Ride!!

DaveT319's Avatar

Join Date: Nov 2010
Location: Eugene, OR
Posts: 600
iTrader: (5)

Garage
Yeah, I really wanted to orient it with the plug below the R/R, but the wires were too short to allow that, and I didn't feel like splicing them to extend it. I think I'll just heat-shrink the top of the connector to be sure nothing shorts out.

'95 Vulcan 750 - Purchased 8/2003 w/ 21,124 miles - passed 50K 9/3/15
* VN900 seat * Daytona handlebar * Converted ACCTs to MCCTs * Relocated R/R * Drilled clutch basket * Coastered * Repainted *
DaveT319 is offline

post #4 of 9 (permalink) Old 12-05-2010, 05:42 PM
Sparky!!!

slimvulcanrider's Avatar

Join Date: May 2008
Posts: 8,695
iTrader: (3)

Garage
I have been running mine in the same mannor as yours since spring of 08 with out any problems due to water. If you are worried about water, get some heat-shrink and cover the white connector enough to make the water drip down over the outside of the R/R, and then use dialectic grease to fill the inside of the connectors.
slimvulcanrider is offline
post #5 of 9 (permalink) Old 12-05-2010, 07:51 PM Thread Starter
Let's Ride!!

DaveT319's Avatar

Join Date: Nov 2010
Location: Eugene, OR
Posts: 600
iTrader: (5)

Garage
I think that's what I'll do, just to be safe.

'95 Vulcan 750 - Purchased 8/2003 w/ 21,124 miles - passed 50K 9/3/15
* VN900 seat * Daytona handlebar * Converted ACCTs to MCCTs * Relocated R/R * Drilled clutch basket * Coastered * Repainted *
DaveT319 is offline
post #6 of 9 (permalink) Old 12-05-2010, 09:53 PM
Members who have donated towards server costs

flitecontrol's Avatar

Join Date: Dec 2008
Location: Monroe, LA
Posts: 4,698
iTrader: (14)

Just looking at it, I would say the wires are plenty long to fit with it rotated 180 degrees. Where it is now, the wires come from almost below the r/r, over the top, and back down to the fitting. On my bracket, there is enough room between the lower left side of the bracket and the frame for the wires to fit. JMTCW.

I'm keepin' all the left over parts. I'm gonna use 'em to build another bike!
_____________________________________________
"Black Beauty"
1989 VN750 acquired December, 2008, 6,711 miles
Currently 23,298 miles

Old Blue
2001 Honda CMX250 Rebel acquired July, 2008

1987 VN750 project bike, acquired August, 2009, 33,000 miles and balancer sticking out of the case, currently awaiting attention and parts
flitecontrol is offline
post #7 of 9 (permalink) Old 12-05-2010, 11:31 PM Thread Starter
Let's Ride!!

DaveT319's Avatar

Join Date: Nov 2010
Location: Eugene, OR
Posts: 600
iTrader: (5)

Garage
I'm not sure if it will with this particular plate. I may have to go get something different to make that work. With it turned 180, the plug itself will push the R/R higher on the plate, and I'm not sure if there will be room for new holes. I'll check tomorrow.

'95 Vulcan 750 - Purchased 8/2003 w/ 21,124 miles - passed 50K 9/3/15
* VN900 seat * Daytona handlebar * Converted ACCTs to MCCTs * Relocated R/R * Drilled clutch basket * Coastered * Repainted *
DaveT319 is offline
post #8 of 9 (permalink) Old 12-06-2010, 09:30 AM
Members who have donated towards server costs

flitecontrol's Avatar

Join Date: Dec 2008
Location: Monroe, LA
Posts: 4,698
iTrader: (14)

That plate would need to be rotated 90 degrees and have different holes drilled in it.

I'm keepin' all the left over parts. I'm gonna use 'em to build another bike!
_____________________________________________
"Black Beauty"
1989 VN750 acquired December, 2008, 6,711 miles
Currently 23,298 miles

Old Blue
2001 Honda CMX250 Rebel acquired July, 2008

1987 VN750 project bike, acquired August, 2009, 33,000 miles and balancer sticking out of the case, currently awaiting attention and parts
flitecontrol is offline
post #9 of 9 (permalink) Old 12-06-2010, 11:38 AM
Wareagle1970

carolesteven's Avatar

Join Date: May 2010
Location: Hickory, NC
Posts: 409
iTrader: (3)

Quote:
Originally Posted by flitecontrol View Post
That plate would need to be rotated 90 degrees and have different holes drilled in it.
I packed the male connector with dielectric grease, plugged it in, then wrapped the entire plug and wires with electric tape.

2003 VN750 de-goated
Kuryakyn ISO Grips
Kuryakyn LED Voltmeter
coastered
R/R relocated
Slipstreamer Hellfire windshield
Shindengen Mosfet R/R
Kawasaki Engine Guard
Fire & Steel Footpegs
Need Knifemaker to make me a seat like his

Hickory, NC
carolesteven is offline
