test results, any help and thoughts are much appreciated

ok, so I am no electrician by any means, a decent backyard mechanic but not on bikes.
my bike was losing its charge somewhere so I cleaned all the contacts I could find. battery terminals, frame groundings, starter wire and wires to the little thing between the positive cable and the starter (couldnt find what it was called in my book).
with a full charged agm maintenance free battery from autozone, bought in the last month of riding last year end of november first of december here are my test results.
with my meter set on 20 dcv

battery before starting= 12.68

with headlight on
idle 11.98
2000 rpm's 12.0
3000 rpm's 12.04

with headlight off (fuse pulled)
idle 12.04
2000 rpm's 12.7
3000 rpm's 12.7
4000 rpm's 12.8

after I shut it off after testing it 10 minutes of running battery tested 12.47 so it looks like it lost a little in that bit of time.

the headlight doesn't seem to get brighter when I rev the engine either.
can anyone tell from this if it is the rr, stator or is there other tests I should try before replacing anything.
ready to get on the road especially with the extra hour of daylight we just got and I found out I'm getting transferred to another store in april which is 66 miles one way and plan on doing most of those trips on my baby again and not in a cage.
thanks for all your help in advance! but everyone is probably out riding right now. I would be!!!!!!!

1986 vn 750 aka "Huck Farley"
42,000 miles
Rick's stator and rr
Tuxedo stator cover mod
pickup coil mod
dampers replaced
agm m/f battery
Harley sportster exhaust, degoated
Hid conversion
splines lubed
custom "vn750.com" grill cover
NGK Iridium spark plugs


acct to mcct mod https://www.vn750.com/forum/showthread.php?t=17917

rekeying locks, https://www.vn750.com/forum/showthread.php?t=7309

stator replacement walkthrough, https://www.vn750.com/forum/showthread.php?t=11369

Last edited by wib714; 03-09-2009 at 05:59 PM. Reason: forgot end results
wib714 is offline
Sponsored Links
Advertisement

post #2 of 31 (permalink) Old 03-09-2009, 06:10 PM
The Professor

lance328's Avatar

Join Date: Feb 2008
Location: BUFORD, GEORGIA
Posts: 3,147
iTrader: (15)

Doesn't appear you are charging, pull the plug on the R/R and set your MM on AC Volts. Start the bike and test the three yellow wires, 2 at a time and see if your stator is working, might be your R/R is fried.


85 VN700 "Old Yella"

REBUILT ENGINE
CUSTOM PAINT
VANCE & HINES CRUZERS
EAR SHAVED AND RE-JETTED W/K&N'S
DUNLOP ELITE K591 FRONT & REAR
VOLTMETER
SYNTHETIC BRAKE FLUID
SYNTHETIC OIL & GEAR LUBE
PLEXISTAR 2 WINDSHIELD
SPLINES LUBED
ACCT'S GREASED W/TOC SPRINGS
COASTERD
LEATHER SADDLE BAGS
LEATHER TOOL AND ROLL BAG
PICKUP COILS GAPPED AT .018"
NGK CAP, WIRES, IRIDUMS
BARNETT FRICTION PLATES & SPRINGS
CUSTOM GRIPS, MIRRORS, LEVERS
ORIGINAL STATOR & R/R 14.5v
DEKA MF AGM ETX15L

Best Auto/Moto Insurance | Motorcycle Protection Today | FREE Trade-In Quote
lance328 is offline
post #3 of 31 (permalink) Old 03-09-2009, 06:27 PM
Sparky!!!

slimvulcanrider's Avatar

Join Date: May 2008
Posts: 8,695
iTrader: (3)

Garage
Quote:
Originally Posted by lance328 View Post
Doesn't appear you are charging, pull the plug on the R/R and set your MM on AC Volts. Start the bike and test the three yellow wires, 2 at a time and see if your stator is working, might be your R/R is fried.
remember when doing this to set your mm to volts ac not dc...the mm won't read right on dc...also another check would be to make sure you are getting higer voltage out of the r/r while bike is running.

it almost sounds like a junction box prob like I had last year.
slimvulcanrider is offline

post #4 of 31 (permalink) Old 03-09-2009, 07:04 PM
Members who have donated towards server costs

93VN750's Avatar

Join Date: May 2006
Location: Tampa, Florida
Posts: 1,766
iTrader: (2)

Send a message via Skype™ to 93VN750
While you're in there, check from each yellow wire to the engine case. Try it cold first, should read infinite on higher resistance scale on the meter from each yellow lead to engine case. If they are all good, try same thing again on a hot engine. The insulation can work when cold, then when it gets hot and pliable, it can break down.

My bet is your stator went and took the r/r with it.

Jon

93VN750, under re-construction
vn750.com Member # 828

Rick's Stator and R/R
MF AGM Battery
Coastered
Degoated
Shaved & Jetted
Iridium's
MAC Tapered Staggered Pipes
Battery/Temp/Clock Gauge
Stainless Steel Brake Lines
Dunlop D-404's
23,XXX miles and holding pending gasket change (underway!!!)
93VN750 is offline
post #5 of 31 (permalink) Old 03-17-2009, 11:09 AM Thread Starter
Concert connoisseur

wib714's Avatar

Join Date: Apr 2008
Location: chillicothe, ohio
Posts: 2,231
iTrader: (3)

Garage

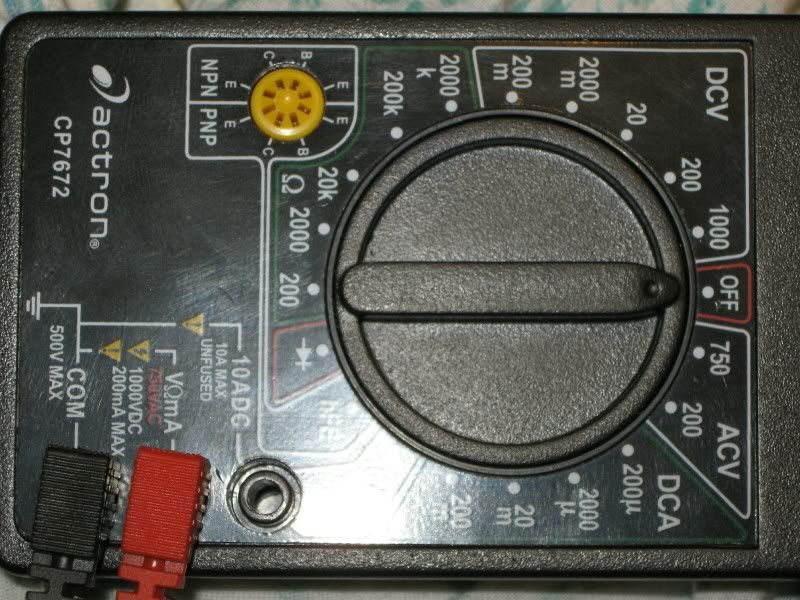

here is a pic of my multimeter, to test the regulator the book says to set the meter at 100 ohms, can someone tell me which setting I should use on this meter and should the battery be connected when I do this? and am I connecting to the regulator itself. I dont understand these meters to well. so starting at off and going clockwise which setting should I use, thanks a lot. I am so ready to ride but am afraid it could be awhile if I dont get my charging issue resolved. I so do not want to take it to a shop.

1986 vn 750 aka "Huck Farley"
42,000 miles
Rick's stator and rr
Tuxedo stator cover mod
pickup coil mod
dampers replaced
agm m/f battery
Harley sportster exhaust, degoated
Hid conversion
splines lubed
custom "vn750.com" grill cover
NGK Iridium spark plugs


acct to mcct mod https://www.vn750.com/forum/showthread.php?t=17917

rekeying locks, https://www.vn750.com/forum/showthread.php?t=7309

stator replacement walkthrough, https://www.vn750.com/forum/showthread.php?t=11369
wib714 is offline
post #6 of 31 (permalink) Old 03-17-2009, 11:20 AM
The Professor

lance328's Avatar

Join Date: Feb 2008
Location: BUFORD, GEORGIA
Posts: 3,147
iTrader: (15)

Quote:
Originally Posted by wib714 View Post


here is a pic of my multimeter, to test the regulator the book says to set the meter at 100 ohms, can someone tell me which setting I should use on this meter and should the battery be connected when I do this? and am I connecting to the regulator itself. I dont understand these meters to well. so starting at off and going clockwise which setting should I use, thanks a lot. I am so ready to ride but am afraid it could be awhile if I dont get my charging issue resolved. I so do not want to take it to a shop.
Yours does not have a 100 ohm setting, just set it at 200. Turn pointer 180 degrees from off. The battery can be connected.


85 VN700 "Old Yella"

REBUILT ENGINE
CUSTOM PAINT
VANCE & HINES CRUZERS
EAR SHAVED AND RE-JETTED W/K&N'S
DUNLOP ELITE K591 FRONT & REAR
VOLTMETER
SYNTHETIC BRAKE FLUID
SYNTHETIC OIL & GEAR LUBE
PLEXISTAR 2 WINDSHIELD
SPLINES LUBED
ACCT'S GREASED W/TOC SPRINGS
COASTERD
LEATHER SADDLE BAGS
LEATHER TOOL AND ROLL BAG
PICKUP COILS GAPPED AT .018"
NGK CAP, WIRES, IRIDUMS
BARNETT FRICTION PLATES & SPRINGS
CUSTOM GRIPS, MIRRORS, LEVERS
ORIGINAL STATOR & R/R 14.5v
DEKA MF AGM ETX15L

Best Auto/Moto Insurance | Motorcycle Protection Today | FREE Trade-In Quote
lance328 is offline
post #7 of 31 (permalink) Old 03-17-2009, 11:33 AM Thread Starter
Concert connoisseur

wib714's Avatar

Join Date: Apr 2008
Location: chillicothe, ohio
Posts: 2,231
iTrader: (3)

Garage
and which setting will I use to test the stator. thanks again. I thought the 200 was where I needed to put it. thanks.

1986 vn 750 aka "Huck Farley"
42,000 miles
Rick's stator and rr
Tuxedo stator cover mod
pickup coil mod
dampers replaced
agm m/f battery
Harley sportster exhaust, degoated
Hid conversion
splines lubed
custom "vn750.com" grill cover
NGK Iridium spark plugs


acct to mcct mod https://www.vn750.com/forum/showthread.php?t=17917

rekeying locks, https://www.vn750.com/forum/showthread.php?t=7309

stator replacement walkthrough, https://www.vn750.com/forum/showthread.php?t=11369
wib714 is offline
post #8 of 31 (permalink) Old 03-17-2009, 11:35 AM
Sparky!!!

slimvulcanrider's Avatar

Join Date: May 2008
Posts: 8,695
iTrader: (3)

Garage
Ac 200
slimvulcanrider is offline
post #9 of 31 (permalink) Old 03-17-2009, 11:39 AM Thread Starter
Concert connoisseur

wib714's Avatar

Join Date: Apr 2008
Location: chillicothe, ohio
Posts: 2,231
iTrader: (3)

Garage
thanks guys! now that I have the no how I have to go to work. I'll post some results in a day or two.

1986 vn 750 aka "Huck Farley"
42,000 miles
Rick's stator and rr
Tuxedo stator cover mod
pickup coil mod
dampers replaced
agm m/f battery
Harley sportster exhaust, degoated
Hid conversion
splines lubed
custom "vn750.com" grill cover
NGK Iridium spark plugs


acct to mcct mod https://www.vn750.com/forum/showthread.php?t=17917

rekeying locks, https://www.vn750.com/forum/showthread.php?t=7309

stator replacement walkthrough, https://www.vn750.com/forum/showthread.php?t=11369
wib714 is offline
post #10 of 31 (permalink) Old 03-17-2009, 04:37 PM
Senior Member

BigT's Avatar

Join Date: Mar 2007
Location: Houston, TX
Posts: 236
iTrader: (1)

I had some issues with my bike's charging system shortly after I bought it. My saga is recorded here. I got some really good advice, maybe something in that thread can help you out.

Good luck.
