Question pulling out vn750 engine

Help,anyone know how to seperate engine from transmission?.Manual shows how to pull engine,but fails to say how to seperate the engine from trannsmission.At least i can't find it.


Thanks
[email protected]
CableRat is offline
Sponsored Links
Advertisement

post #2 of 30 (permalink) Old 08-09-2008, 04:00 PM
Members who have donated towards server costs

Crobins365's Avatar

Join Date: Jul 2006
Location: Kennett Square, PA
Posts: 3,505
iTrader: (48)

Before you can pull the engine, you have to remove the front bevel gear case - once that's loosened up from the engine block, you can uncouple it from the shaft and you're good to go.

Good luck!

C
Crobins365 is offline
post #3 of 30 (permalink) Old 08-09-2008, 04:48 PM
Senior Member

Join Date: Mar 2008
Location: Edmonton, Alberta, Canada
Posts: 305
iTrader: (1)

The transmission is housed in the crankcase. The bevel gear case that Cindy is talking about is just an angle drive connected to the drive shaft.

You can do the clutch without splitting the cases, but any actual transmission work ( other than bevel drive and driveshaft/ rear drive) requires the crankcase halves to be split. It may be possible to part of the shift linkage and drum without a split, I'm not sure what accessible under the transmission cover.

85 VN750 basketcase ( yes its a true 750, and no smog controls, its good to be Canadian)
It will have
a rebuilt 96 top end, rebuilt 85 bottom end
degoated, Eared
stripped, lowered, raked, bobbed,
reed valve boxes shaved
ported and polished
balanced
right side dump exhaust
heads and cylinders shaved for compression
looking for smoothbore sidedraft carbs
possibly fat bob tanks
modified vn800 or sportster drag pipes or I'll just make some

Chopperfix
Duck's Garage
Duck is offline

post #4 of 30 (permalink) Old 08-09-2008, 10:45 PM
Members who have donated towards server costs

Crobins365's Avatar

Join Date: Jul 2006
Location: Kennett Square, PA
Posts: 3,505
iTrader: (48)

Quote:
Originally Posted by Duck View Post
The transmission is housed in the crankcase. The bevel gear case that Cindy is talking about is just an angle drive connected to the drive shaft.

You can do the clutch without splitting the cases, but any actual transmission work ( other than bevel drive and driveshaft/ rear drive) requires the crankcase halves to be split. It may be possible to part of the shift linkage and drum without a split, I'm not sure what accessible under the transmission cover.
Oops, you're right. I read the initial post as how-to-get-the-engine-out-with-the-shaft-still-attached. My bad. Took too much work home this weekend and am distracted - I'll be real quiet the rest of the weekend.

C
Crobins365 is offline
post #5 of 30 (permalink) Old 08-09-2008, 11:18 PM
Members who have donated towards server costs

Sky Rider's Avatar

Join Date: Jun 2006
Location: Corpus Christi, Texas
Posts: 1,647
iTrader: (0)

About the only tranny part you can access from behind the oil sight glass is the shift pawl. It turns a star gear to turn the shift drum. The drum, shift dogs, and gears are all internal to the crank case. To get at them, a split is necessary.
What issues are you having with the tranny? The tranny is pretty robust for the most part. The weakest link is the pushrod that connects to the shift lever shaft and runs back behind the sight glass and acutates the shift pawl. If it breaks, it is a case split for a $6 part. Other than that, it takes quite a bit to break the trans.

Jim W
93 VN 750 "Ursula"
Moved R/R 08Sep06
R/R rewire 17Feb07
New R/R, Installed 14Jun08
New Stator installed 10 Jun08
Maintenance Free Battery 12Jan08
21480 Miles
VROC #8542
Sky Rider is offline
post #6 of 30 (permalink) Old 08-10-2008, 01:26 AM Thread Starter

Join Date: Jun 2008
Posts: 21
iTrader: (0)

Ok,how do i insert a picture of where the leak is?.
and thank's for the replys.
CableRat.
CableRat is offline
post #7 of 30 (permalink) Old 08-10-2008, 02:09 AM Thread Starter

Join Date: Jun 2008
Posts: 21
iTrader: (0)

Red face picture ended up here.


Please look in vn750 member galleries,
CableRat.for pic of oil leak.
CableRat.
CableRat is offline
post #8 of 30 (permalink) Old 08-10-2008, 02:49 PM
Members who have donated towards server costs

Crobins365's Avatar

Join Date: Jul 2006
Location: Kennett Square, PA
Posts: 3,505
iTrader: (48)

Quote:
Originally Posted by CableRat View Post

Please look in vn750 member galleries,
CableRat.for pic of oil leak.
CableRat.
Hey, there -
Kinda hard to see from that pic (I can't read the print you inserted), but it looks like the leak is coming from the left side cover right by the starter motor? Or am I not seeing that right? If that is where the leak is, could be as "simple" as replacing the gasket on the cover. That does require an engine pull/tilt, but shouldn't require any trans work.

C
Crobins365 is offline
post #9 of 30 (permalink) Old 08-10-2008, 04:57 PM
Addicted to Projects

bullwinkle's Avatar

Join Date: Apr 2008
Location: Anchorage, AK
Posts: 545
iTrader: (1)

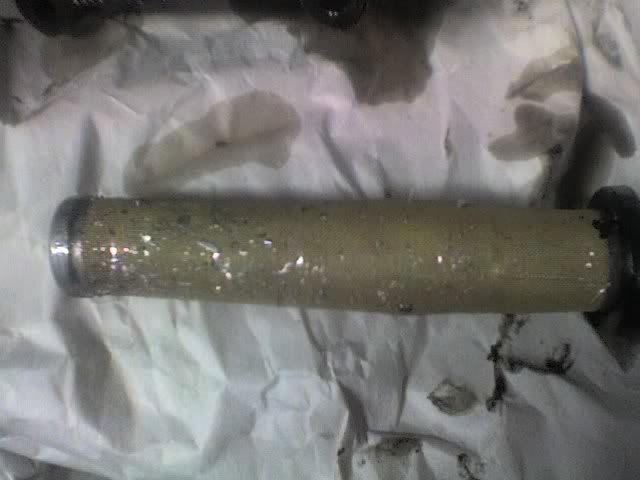

Any "strange" noises when the engine is running?? The reason I ask is mine had a small leak in the same area that wouldn't seal up and a grinding noise when it ran, other than that it was (finally) running fine. I got readyto do an engine pull so I drained the oil to find this on the filter screen:


Pulled the engine removed the crankcase cover to replace the gasket and opened it up to find this:


The dampners that had been in there had broken down to this:


and allowed the bolt holding the balancer and the balancer gear together to fall out (left-handed thread by the way).
The gear still rolled but would drop onto the crankcase chewing the ****ins out of the inside. I am in the process of repairing this little gem now.
Good luck, hope things are much better for you and it is just a gasket!!

Charlie
VN700 project bike 98% completed!!
68 Bushwhacker this winters project (in the works)
86 Honda GL1200i (winter project #2)
82 kz440 daily rider for now!


A few clowns short of a circus now aren't we?
bullwinkle is offline
post #10 of 30 (permalink) Old 08-10-2008, 07:54 PM Thread Starter

Join Date: Jun 2008
Posts: 21
iTrader: (0)

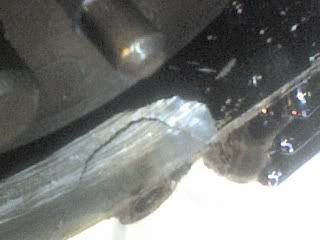

Question found large or rather long crack in casing.

Bullwinkle,i do belive you are right!.
crack is right at bolt sight,have marked it.Now as to what should i do from
here?,is it worth fixing or not-that is the question?.
So what kind of a job are we talking here.amature or pro?
is it worth redoing,or better to part it out.
All sugestions are welcome.
CableRat
