Oil Leak Front Cylinder

I've been riding my bike for a couple weeks now and what started as a small oil leak has turned into a leak leaving a pretty good puddle on the ground. The wind is blowing it all over both sides of the block and the frame.

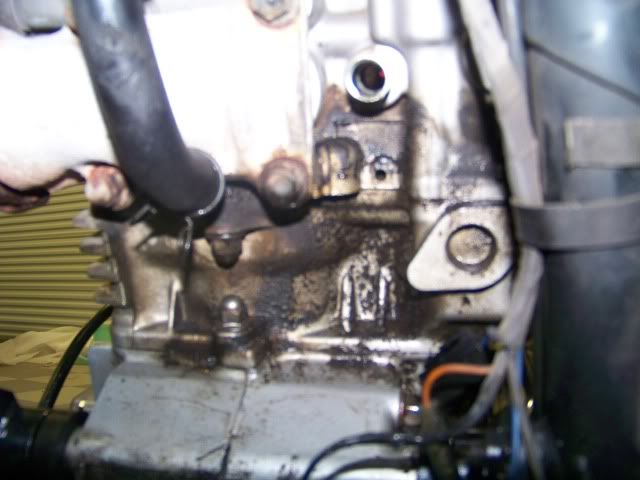

I've pretty much found it coming from the front cylinder between it and the radiator. Below is a pic, by the looks of it its coming from where the crankcase breather hose hooks up. Any ideas on the cause of this or am I missing something?

patmckinneyracing is offline
Sponsored Links
Advertisement

post #2 of 7 (permalink) Old 11-25-2011, 10:17 PM
Old Fart

Knifemaker's Avatar

Join Date: Jun 2004
Location: Catawissa, MO
Posts: 11,634
iTrader: (4)

Garage
Did you check the hose?

If You Are Not Sure If I Am Joking or Not....I AM !!Photos:
http://www.flickr.com/photos/knifemaker1954/sets/
Knifemaker is offline
post #3 of 7 (permalink) Old 11-26-2011, 01:10 AM Thread Starter
Frank

Join Date: Aug 2011
Location: San Antonio, TX
Posts: 19
iTrader: (0)

Yeah its not the hose. After going back through several posts, it was the spark plug wells having bad o-rings that caused the leak.

But now after getting everything back together, the bike will instantly die the second I try to engage the clutch in any of the gears. The bike was low on oil so I added in 2 quarts (thats how low it was).
patmckinneyracing is offline

post #4 of 7 (permalink) Old 11-26-2011, 01:13 AM
1986 VN750

thtanner's Avatar

Join Date: Nov 2011
Location: Dana Point, CA
Posts: 3,255
iTrader: (8)

Garage
Quote:
Originally Posted by patmckinneyracing View Post
Yeah its not the hose. After going back through several posts, it was the spark plug wells having bad o-rings that caused the leak.

But now after getting everything back together, the bike will instantly die the second I try to engage the clutch in any of the gears. The bike was low on oil so I added in 2 quarts (thats how low it was).
Did you check that the kickstand wasn't down, or that the kickstand detection switch (i forget the proper name) isn't sticking?

1986 Kawasaki Vulcan 750
NGK Iridium Plugs #7803/DPR7EIX-9
Duralast Gold ETX15 AGM Battery
Coastered & Shaved
TOC MCCTs
Metzeler ME880 [110/90-19, 170/80-15]
Balance Dampers Replaced
Tuxedo Mod
Rebuilt Forks w/ Progressive Springs
V&H Cruzers
VN750.com Grill Cover
Meanstreak Seat
Emgo 23-92411 Handlebars
MOSFET FH012AA R/R


1990 Kawasaki Vulcan 750

1998 Honda VFR800 FI

2014 Honda VFR800F

1989 Pontiac Firebird Formula 350
thtanner is offline
post #5 of 7 (permalink) Old 11-26-2011, 01:28 AM Thread Starter
Frank

Join Date: Aug 2011
Location: San Antonio, TX
Posts: 19
iTrader: (0)

Yeah I had read another post shortly after my previous post, which gave me the idea of the side stand switch being stuck. Turned out that was the problem. Was trying to straighten that bracket out that its mounted on (previous owner dropped) and the switch became somewhat jammed.

All problems (for now) are fixed. Now I can make it to work tomorrow lol. Thanks guys.
patmckinneyracing is offline
post #6 of 7 (permalink) Old 11-26-2011, 07:09 PM
Linkmeister Supreme

OlHossCanada's Avatar

Join Date: Aug 2008
Location: Lethbridge, Alberta, Canada
Posts: 7,960
iTrader: (8)

Quote:
Originally Posted by thtanner View Post
Did you check that the kickstand wasn't down, or that the kickstand detection switch (i forget the proper name) isn't sticking?
I usually refer to it as the sidestand safety switch.

Gordon

1991 VN 750 -"Cosmic Lady" or "Bad Girl"?
Purchased May 16, 2008
Approx.19,300km (12,000 miles)

H-D windshield
Relocated R/R
MF-AGM battery
Fiamm Freeway Blaster horns
F&S luggage rack and engine guard
Kury Offset Hiway pegs
July 13, 2016, Riding on the DARKSIDE now, Classic Radial 165/80-15


TOP TEN THINGS A NEW RIDER/OWNER SHOULD DO. Click on link.
https://www.vn750.com/forum/11-vn750-general-discussion/9127-top-ten-items-you-would-suggest-new-owner-do-his-new-ride.html
OlHossCanada is offline
post #7 of 7 (permalink) Old 11-26-2011, 08:47 PM
Members who have donated towards server costs

Join Date: Nov 2007
Location: Chandler, Arizona
Posts: 2,850
iTrader: (0)

The probability of failure (and to get rid of needless complication) is why I removed both the sidestand and clutch safety switches.

I am a motorcyclist, NOT a biker.


1997 Vulcan 750, purchased about a week ago
2006 Sportster 1200 Low
2013 Royal Enfield Bullet 500, converted to carb
2001 Yamaha XT225, heavily modified
2004 Honda Rebel 250
1979 Vespa P200E
2002 Vulcan 750 parts bike
1994 Yamaha XT225 parts bike
VN750Rider/Jerry is offline
