Have my Own Vn750! Finally.

Hey gang, I decided to buy that 2001 Vn750 mentioned before. I looked at it, when with a trailer. It was 70 miles eachway. I pulled the seat, check for any signs of battery acid, it has a new Advance Auto Parts battery. so i'll keep that til i have problems, then get the MF AGM. all the wiring looks great, nothing has been monkied with. all it needs is some TLC, dirty wheels, minor chrome polishing. The only two issues. The lock for the rear toolkit box fell out when the PO was riding. any ideas where to get a new one? and problem 2. The tach is loose, and slightly bent, i think it got bumped. any ideas on tightening that up? the paint is in great shape. 11,230 starting miles. I test rode it, got through all 5 gears. two new ties, (still have noogies!!!) We will pull the wheel, and check the splines and very soon. Pics to come!!!!

1986 Vn750
18,800 miles, and counting
Bone Stock
New cam chain tentioners
all fluids changed
Spline Lube
windshield
Engine Guard
B-stone S11 RWL-stock sizes
*wanted*
New grips

2001 Vn750
13,100 miles, and counting
spline lube
Bridgestone S11 100/90
Shinko 170/80
rear end oil change
aftermarket mirrors
windshield
otherwise all stock
*anticipated mods*
Engine Guard
1986vn750 is offline
Sponsored Links
Advertisement

post #2 of 10 (permalink) Old 03-14-2011, 01:15 AM
Sparky!!!

slimvulcanrider's Avatar

Join Date: May 2008
Posts: 8,695
iTrader: (3)

Garage
Quote:
Quote:
The lock for the rear toolkit box fell out when the PO was riding. any ideas where to get a new one?
Ace, Home Depot, Sears, Lowes, maybe even wal-mart.. just look for a tool box/chest lock.

Quote:
The tach is loose, and slightly bent, i think it got bumped. any ideas on tightening that up?
Take off the chrome cup from the tac, its held in by one phillips head screw. under neath the cup is a single 8mm nut. for the other end of the bracket, remove the black plastic cover from under the information center (gas gauge and idiot lights) then you will find two 8mm nuts 1 for the tac and one for the speedo, you might have to take off the tac nut so you can get the cup off enough to get to the bracket nut on the back of the tac, reassemble in the same order.
slimvulcanrider is offline
post #3 of 10 (permalink) Old 03-14-2011, 01:22 AM
Linkmeister Supreme

OlHossCanada's Avatar

Join Date: Aug 2008
Location: Lethbridge, Alberta, Canada
Posts: 7,960
iTrader: (8)

Get a drawer lock from a hardware store for $5.
Take the toolbox into the store make sure of the fit.
Put some silicone sealant on the locknut thread to prevent loss of this one.

Seems like someone tightened up a loose speedo or tach mount with a couple of rubber washers.
Anyone recall the details?

Gordon

1991 VN 750 -"Cosmic Lady" or "Bad Girl"?
Purchased May 16, 2008
Approx.19,300km (12,000 miles)

H-D windshield
Relocated R/R
MF-AGM battery
Fiamm Freeway Blaster horns
F&S luggage rack and engine guard
Kury Offset Hiway pegs
July 13, 2016, Riding on the DARKSIDE now, Classic Radial 165/80-15


TOP TEN THINGS A NEW RIDER/OWNER SHOULD DO. Click on link.
https://www.vn750.com/forum/11-vn750-general-discussion/9127-top-ten-items-you-would-suggest-new-owner-do-his-new-ride.html

Last edited by OlHossCanada; 03-14-2011 at 01:25 AM.
OlHossCanada is offline

post #4 of 10 (permalink) Old 03-14-2011, 03:08 AM
Sparky!!!

slimvulcanrider's Avatar

Join Date: May 2008
Posts: 8,695
iTrader: (3)

Garage
put he rubber washers between nut and tac
slimvulcanrider is offline
post #5 of 10 (permalink) Old 03-14-2011, 08:59 AM
Members who have donated towards server costs

flitecontrol's Avatar

Join Date: Dec 2008
Location: Monroe, LA
Posts: 4,698
iTrader: (14)

I stuck a 3/4" length of fuel hose between the instrument housing and tach to eliminate vibration. Forget who poted it origionally.

Someone also posted how to get the lock to fit the ignition key. Wib maybe?

I'm keepin' all the left over parts. I'm gonna use 'em to build another bike!
_____________________________________________
"Black Beauty"
1989 VN750 acquired December, 2008, 6,711 miles
Currently 23,298 miles

Old Blue
2001 Honda CMX250 Rebel acquired July, 2008

1987 VN750 project bike, acquired August, 2009, 33,000 miles and balancer sticking out of the case, currently awaiting attention and parts
flitecontrol is offline
post #6 of 10 (permalink) Old 03-14-2011, 10:55 AM
Senior Member

cglennon's Avatar

Join Date: May 2008
Location: Portland, OR
Posts: 733
iTrader: (0)

Send a message via Skype™ to cglennon
Quote:
Originally Posted by 1986vn750 View Post
... The tach is loose, and slightly bent, i think it got bumped. any ideas on tightening that up? ...
The tach on every VN750 built is loose. You need to add a damper to of some sort to compensate. Below is an excerpt from a thread originally started by Bordolover. His damper solution uses a simple piece of 3/4" fuel line. My response is included below his (in blue) to verify that it works great and takes only a few seconds to implement.

Quote:
Originally Posted by bordolover View Post
I am in the process of moving back to the states and while I was cleaning out the garage and disposing of the needless detritus acquired whilst bike wrenching, I came across a simple solution to my shaky tach. I cut a piece of fuel line about 3/4 inch long and slid it between the housing and the bracket from the dash. It fits perfect in the slot below the tach and blends in so well that it is not even noticeable while sitting on the bike. It is short enough that the sides of the opening in the tach housing hold it in place and it fixed my shaky tach issue...
.
I can verify that this is a quick, inexpensive and easy way to stop the tachometer from wobbling. I purchased 4" of fuel line from Ace Hardware, cut 3/4", unscrewed the tachometer gauge cup (single screw in the back of the cup), let the gauge cup slide down to enlarge the opening between the gauge mounting bracket and the back of the gauge cup, slid in the 3/4" piece of fuel line and tightened the gauge cup screw. Tightening the gauge cup screw pinches the piece of fuel line and no more wobble!!! I trimmed the excess fuel line hanging out of the opening and now you can't tell it is there.

Thank you bordolover for this great tip!

I also found a use for the remaining fuel line.

I have read threads suggesting that the throttle cable which rubs against the front right spark plug boot can cause a short over time. So, I used the remaining fuel line to cover the cable just above the spark plug boot. Just slice the fuel line, wrap it around the cable and let the friction between the cable and spark plug boot hold it in place. Hopefully this will eliminate the possibility of a future electrical short.


Chris Glennon - Portland, OR
cglennon is offline
post #7 of 10 (permalink) Old 03-18-2011, 01:38 PM Thread Starter
Senior Member

1986vn750's Avatar

Join Date: Jun 2009
Location: Va
Posts: 399
iTrader: (0)


Sunny day!

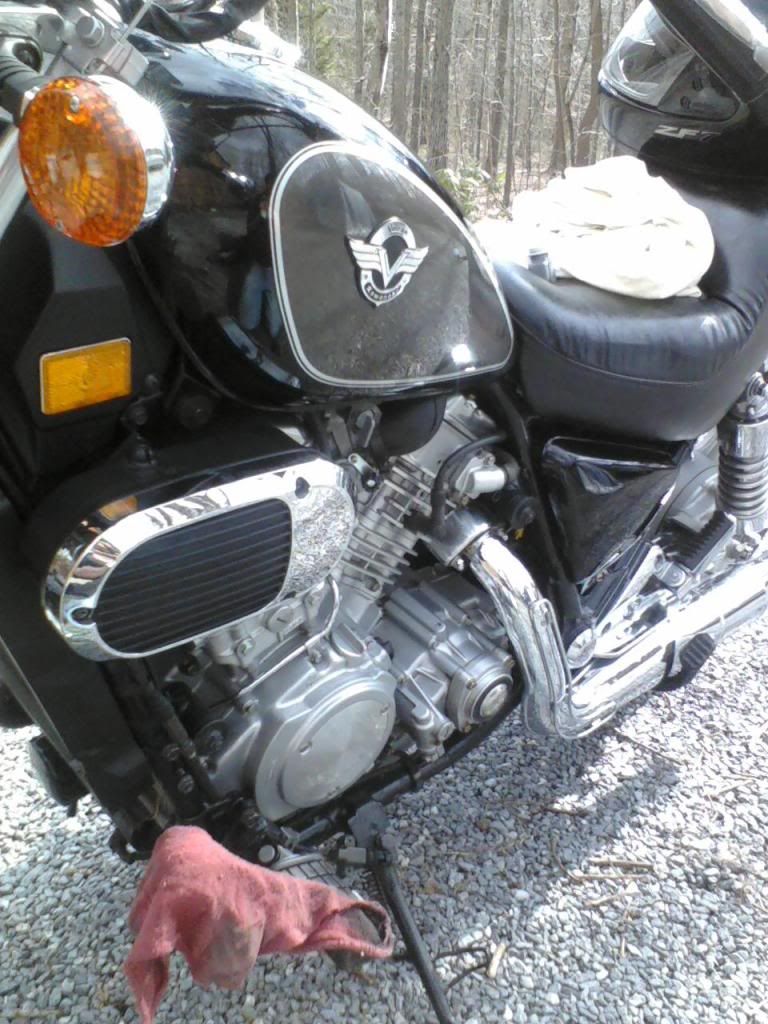

Just waxed the tank, and polished all the chrome parts!

1986 Vn750
18,800 miles, and counting
Bone Stock
New cam chain tentioners
all fluids changed
Spline Lube
windshield
Engine Guard
B-stone S11 RWL-stock sizes
*wanted*
New grips

2001 Vn750
13,100 miles, and counting
spline lube
Bridgestone S11 100/90
Shinko 170/80
rear end oil change
aftermarket mirrors
windshield
otherwise all stock
*anticipated mods*
Engine Guard

Last edited by 1986vn750; 03-18-2011 at 01:42 PM.
1986vn750 is offline
post #8 of 10 (permalink) Old 03-18-2011, 01:39 PM Thread Starter
Senior Member

1986vn750's Avatar

Join Date: Jun 2009
Location: Va
Posts: 399
iTrader: (0)

here is my photobucket page. check out the others. http://s437.photobucket.com/albums/q.../2001%20vn750/

1986 Vn750
18,800 miles, and counting
Bone Stock
New cam chain tentioners
all fluids changed
Spline Lube
windshield
Engine Guard
B-stone S11 RWL-stock sizes
*wanted*
New grips

2001 Vn750
13,100 miles, and counting
spline lube
Bridgestone S11 100/90
Shinko 170/80
rear end oil change
aftermarket mirrors
windshield
otherwise all stock
*anticipated mods*
Engine Guard

Last edited by 1986vn750; 03-18-2011 at 01:41 PM.
1986vn750 is offline
post #9 of 10 (permalink) Old 03-18-2011, 02:15 PM
Member

Gandalv's Avatar

Join Date: Nov 2010
Location: Tampa, FL
Posts: 77
iTrader: (3)

Good looking bike...very clean! Get those fluids changed. That was the first thing I did. Oil/Filter, coolant & brake fluid is cheap. Congrats and keep the shiny side up and dirty side down!

I guessing I am in the minority here, however, I haven't cleaned my bike since I got it home 5 months ago...been to busy riding it !

2004 Vulcan 750
Purchased November 9th, 2010 w/1216 miles
Found on CL - listed for 3k paid $2400
First bike and first time rider
Gandalv is offline
post #10 of 10 (permalink) Old 03-18-2011, 02:44 PM Thread Starter
Senior Member

1986vn750's Avatar

Join Date: Jun 2009
Location: Va
Posts: 399
iTrader: (0)

ive changed the oil/filter, changed brake fluid, and the coolant looks really clean. next is the final drive oil, and the spline lube!

1986 Vn750
18,800 miles, and counting
Bone Stock
New cam chain tentioners
all fluids changed
Spline Lube
windshield
Engine Guard
B-stone S11 RWL-stock sizes
*wanted*
New grips

2001 Vn750
13,100 miles, and counting
spline lube
Bridgestone S11 100/90
Shinko 170/80
rear end oil change
aftermarket mirrors
windshield
otherwise all stock
*anticipated mods*
Engine Guard
1986vn750 is offline
